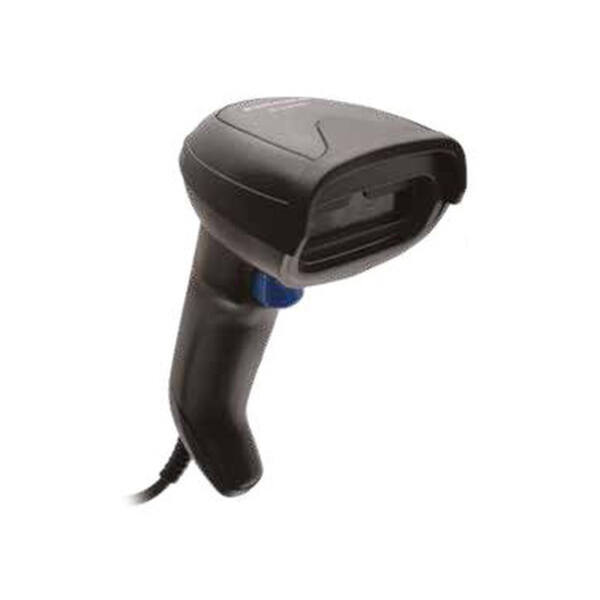

Datalogic Gryphon GM4200, Linear Imager, 433 MHz, Wireless Charging, Black


HIGHLIGHTS
- Enhanced linear imaging technology for superior scanning and Depth of Field Reads 1D high-density and low-resolution codes, hard-to-read, poor or damaged codes and bar codes from mobile devices Datalogic’s distinctive ‘soft line viewfinder’ to easily target the barcode to be read Datalogic’s ‘Green Spot’ technology and 3GL (3 Green Lights) for superior good-read feedback Motionix motion-sensing technology for seamless reading mode transitions Choice of Bluetooth wireless technology or Datalogic’s STAR Cordless System (radio frequencies available in 433 MHz or 910 MHz) Wireless battery charging system Choice of WLC4190 sleek desk/wall cradle with USB Type C connectivity or WLC4090 adjustable position cradle with Scan-While-Charging capability Long lasting replaceable Lithium-Ion battery Multi-interface options: USB type C / USB only or multi-interface USB type C / USB /RS-232 / Keyboard Wedge multi-interface Disinfectant-Ready enclosures withstand daily cleaning with harsh disinfectant solutions EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Datalogic Gryphon GM4200, Linear Imager, 433 MHz, Wireless Charging, Black
1.226,55kr. Ekskl. moms
Linear Imager, 433 MHz, 1D, Wireless Charging, IP52, 166x68x109 mm, Black
- Beskrivelse
- Yderligere information
- Dokumenter
Beskrivelse
Datalogic Gryphon GM4200. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: CCD. Connectivity technology: Wireless, Standard interfaces: RF Wireless, Wireless range: 50 m. Product colour: Black, International Protection (IP) code: IP52, Protection features: Electrostatic Discharge (ESD) protection. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery type: Built-in battery. Weight: 235 g, Width: 166 mm, Depth: 68 mm
The Gryphon 4200 series represents the premium range of 1D hand held scanners from Datalogic for general purpose applications. Designed to provide the best-in-class reading performance, the Gryphon 4200 readers’ ability to capture bar codes from near to far, to read both high-density and low resolution codes, to decode hard-to-read, poorly printed or damaged codes and to easily read bar codes from mobile devices simplifies all applications. Ideal for hand held reading, the Gryphon 4200 utilizes Datalogic’s Motionix motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the ‘ready-to-read’ scanning mode. Datalogic’s distinctive ‘soft line viewfinder’ helps the operator to easily target the code to be read, making it easier and faster to point, shoot and decode the proper label, reducing accidental reads in a multiple bar code situation. The Gryphon 4200 Series includes 3 models: a corded ‘Desk’ model (GD4200), a cordless model featuring Bluetooth wireless technology (GBT4200) and a cordless model featuring Datalogic’s STAR Cordless System narrow band radio (GM4200).
3-Year Factory Warranty
Yderligere information
Type | Handheld bar code reader |
---|---|
Scanner type | 1D |
Sensor type | CCD |
Light levels (direct sunlight) | 0 – 130000 lx |
Tilt reading angle | -45 – 45° |
Pitch reading angle | -65 – 65° |
Yaw reading angle | -65 – 65° |
Connectivity technology | Wireless |
Standard interfaces | RF Wireless |
Wireless range | 50 m |
Product colour | Black |
LED indicators | Yes |
Power source type | Battery |
Input voltage | 4.5 – 14 V |
Weight | 235 g |
Width | 166 mm |
Depth | 68 mm |
Height | 109 mm |
Operating temperature (T-T) | -10 – 50 °C |
Storage temperature (T-T) | -20 – 70 °C |
Operating relative humidity (H-H) | 0 – 95% |
Harmonized System (HS) code | 84716070 |
International Protection (IP) code | IP52 |
Protection features | Electrostatic Discharge (ESD) protection |
Operating frequency | 433 MHz |
Battery technology | Lithium-Ion (Li-Ion) |
Number of batteries supported | 1 |
Battery capacity | 2550 mAh |
Number of reads per charge | 80000 |
Charging time | 4 h |
Linear (1D) barcodes supported | GS1 DataBar |
Battery type | Built-in battery |
Read rate (max) | 400 reads/s |
Battery voltage | 3.6 V |
Scanner resolution | 0.077 mm |
Compliance certificates | RoHS |
