Datalogic PD9130, 1D, multi-IF, kit
HIGHLIGHTS
- Handheld bar code reader Black, Yellow
- Scanner type: 1D Sensor type: LED
- Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN 2, EAN 5, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1-128 (UCC/EAN-128), Interleaved 2 of 5, MSI, Plessey, U.P.C.
- Tilt reading angle: -45 - 45°
- Wired Standard interfaces: USB
- Power source type: DC
Datalogic PD9130, 1D, multi-IF, kit
2.445,00kr. Ekskl. moms
1D, RS-232, USB, 3GL, IP65, 212x110x74 mm, 340 g, USB kit
Stock visibility På lager – 2-5 dages levering
- Beskrivelse
- Yderligere information
Beskrivelse
Datalogic PowerScan PD9130. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: USB. Product colour: Black, Yellow, International Protection (IP) code: IP65, Protection features: Shock resistant. Power source type: DC, Input voltage: 4.5 – 30 V, Power consumption: 440 mA. Weight: 340 g, Width: 212 mm, Depth: 110 mm
The PowerScan PD9130 linear imager is a corded device offering state-of-the-art performance in an industrial product. This linear imager introduces Datalogic’s new and innovative scanning technology, implementing a green scanning line which has the same definition of a laser beam with all the benefits of a linear imager.
The PD9130 imager features Datalogic’s exclusive 3 Green Lights (3GL) for superior good read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle.
The PD9130 imager’s mechanics have been developed and tested to withstand extreme environmental conditions, maintaining consistent reading performance without degrading performance or reliability. Its ergonomic enclosure is lightweight and well-balanced to ensure optimal operator comfort during scan-intensive operations.
All models have multi-interface capabilities featuring the most popular interfaces; RS-232, Keyboard Wedge and USB.
3-Year Factory
Yderligere information
| Scanningsmotor | |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D |
| Sensor type | LED |
| Forbindelse | |
| Tilt reading angle | -45 – 45° |
| Pitch reading angle | -75 – 75° |
| Yaw reading angle | -70 – 70° |
| Connectivity technology | Wired |
| Standard interfaces | USB |
| Power source type | DC |
| Input voltage | 4.5 – 30 V |
| Power consumption | 440 mA |
| Weight | 340 g |
| Width | 212 mm |
| Depth | 110 mm |
| Height | 74 mm |
| Cables included | USB |
| Operating temperature (T-T) | -20 – 50 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Harmonized System (HS) code | 84716070 |
| 2D (matrix & stacked) barcodes supported | Not supported |
| International Protection (IP) code | IP65 |
| Protection features | Shock resistant |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN 2, EAN 5, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1-128 (UCC/EAN-128), Interleaved 2 of 5, MSI, Plessey, U.P.C. |
| Compliance certificates | RoHS |
Lignende produkter

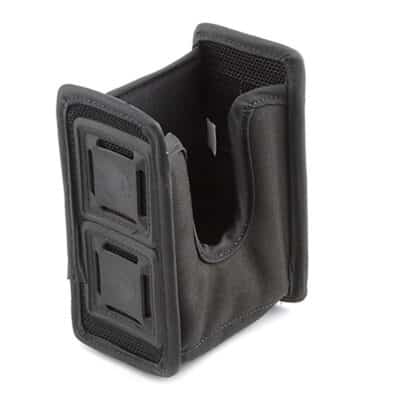

Datalogic Powerscan Universal Holster

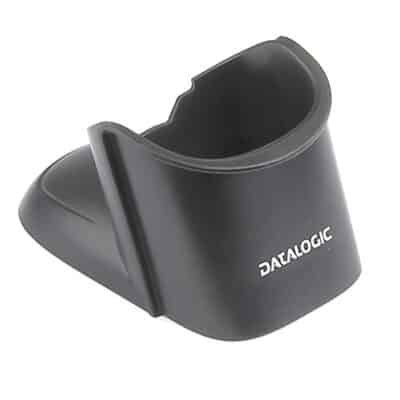

Datalogic PowerScan Desk / Wall Holder
