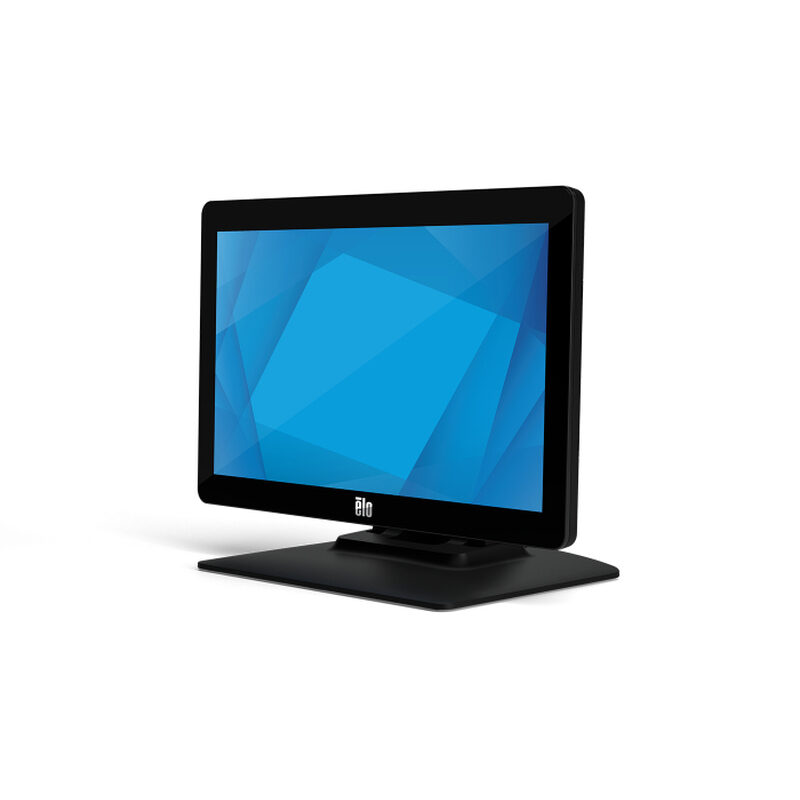

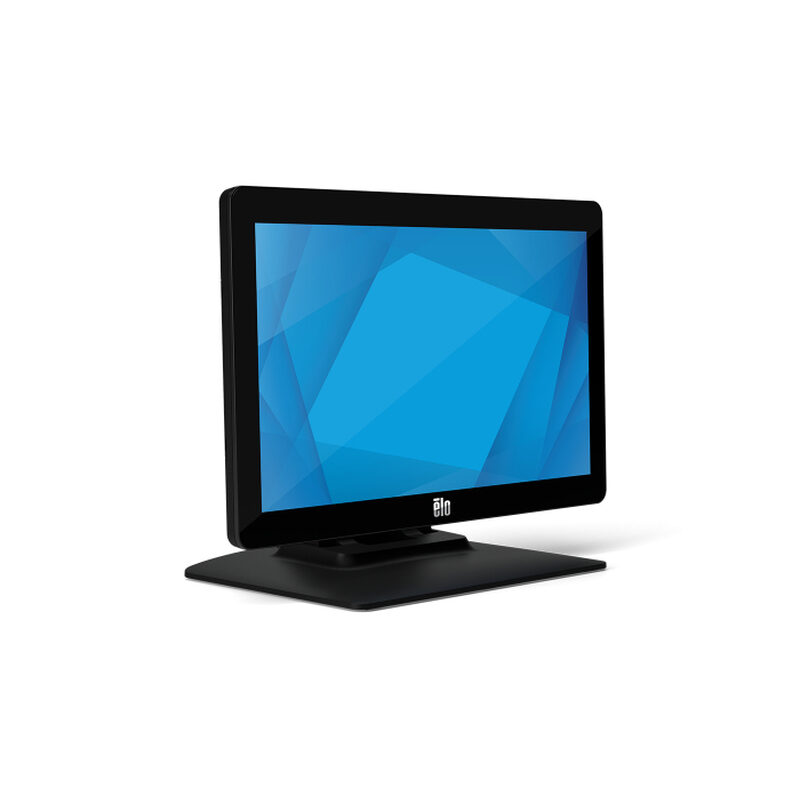

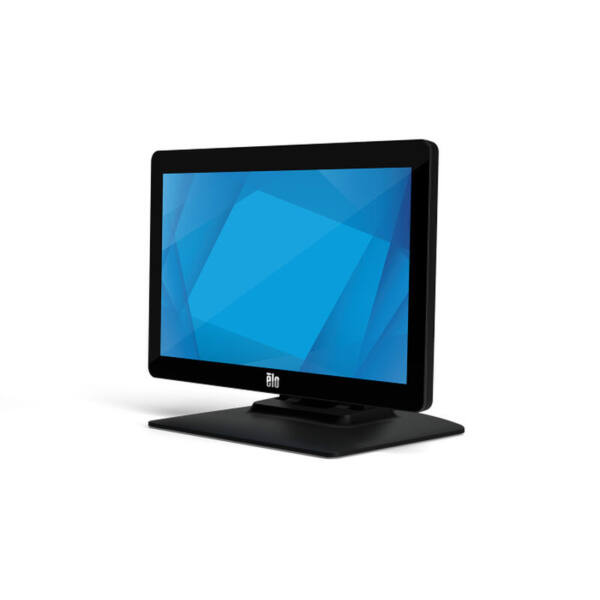

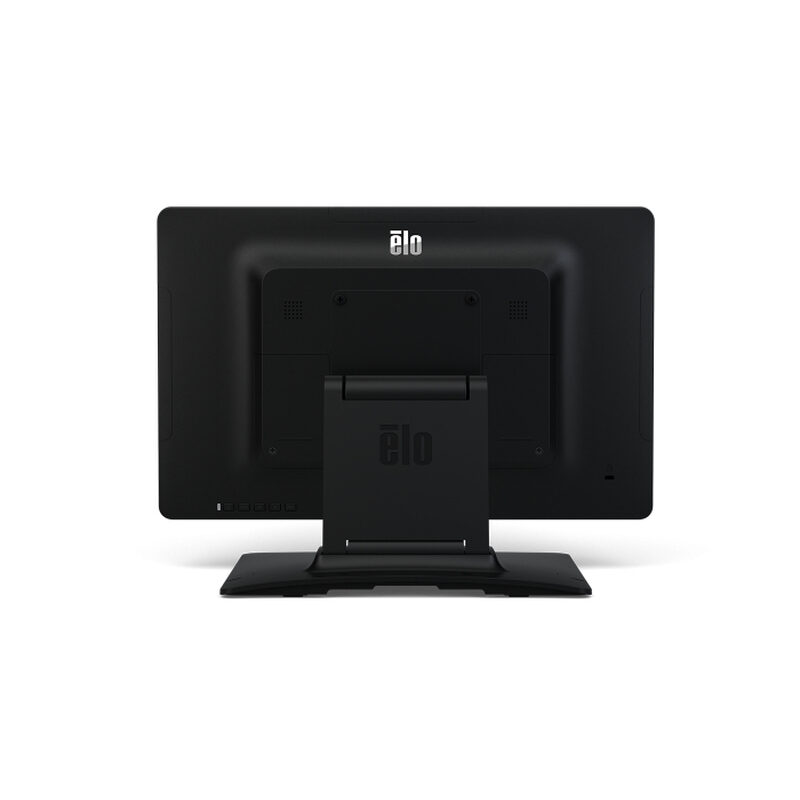

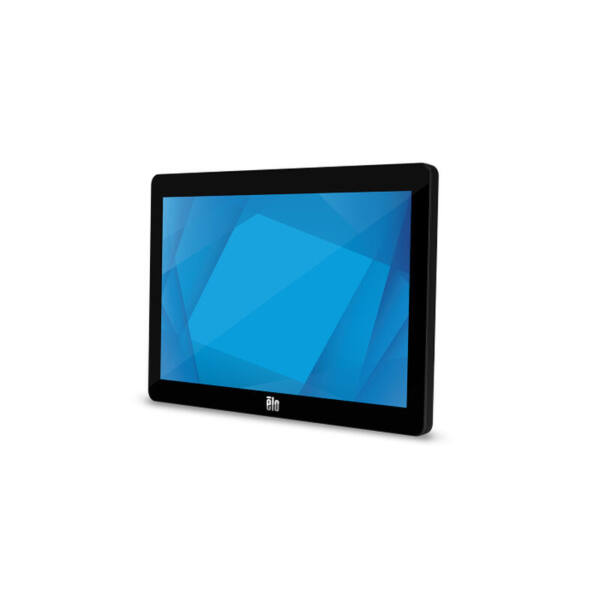

Elo 1502L 15.6-inch wide LCD Monitor, Full HD, Projected Capacitive 10-touch

HIGHLIGHTS

  • PCAP (Projected Capacitive) - 10 Touch
  • Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Video Priority, Information, Touch on Sleep Mode, Peripheral Port (FHD Model only)
  • Monitor Thickness: 1.28" / 32.4 mm panel depth

Elo 1502L 15.6-inch wide LCD Monitor, Full HD, Projected Capacitive 10-touch

4.149,00kr. Ekskl. moms

15.6″ 1920 x 1080 TFT LCD (LED), 180 nits, 30 ms, Anti-glare, 16:9, PCAP, USB, VGA, HDMI

Varenummer (SKU): E125496 Brand:
Delfi SKU: 7405233

Stock visibility Not in stock

Beskrivelse

Elo Touch Solutions E125496. Display diagonal: 39.6 cm (15.6″), Display technology: LED, Display resolution: 1920 x 1080 pixels, HD type: Full HD, Touchscreen. Product colour: Black

Elo’s 1502L
Touchscreen Monitor

The Elo 1502L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1502L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction – making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.

Single Cable Connection
The 1502L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn’t equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.

One for You.
One for Your Customers.

The 02-Series offers dual functionality. Use it as a traditional POS terminal or customer facing display – or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.

Well-Suited for…
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.

Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

Mount with Flexibility
Customers demand a seamless shopping experience from their first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party kiosk enclosures, the touchscreens can be integrated with ease.

3 year

Yderligere information

Display diagonal

39.6 cm (15.6")

Display technology

LED

Display resolution

1920 x 1080 pixels

Touchscreen

Yes

Response time

30 ms

Contrast ratio (typical)

700:1

Viewing angle, horizontal

160°

Viewing angle, vertical

160°

Display number of colours

262144 colours

Horizontal scan range

31.5 – 82 kHz

Vertical scan range

50 – 75 Hz

HDMI ports quantity

1

Built-in speaker(s)

Yes

RMS rated power

2 W

Product colour

Black

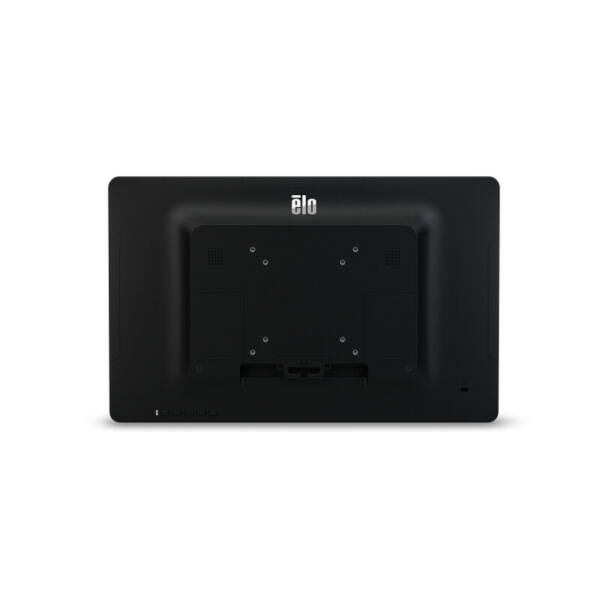

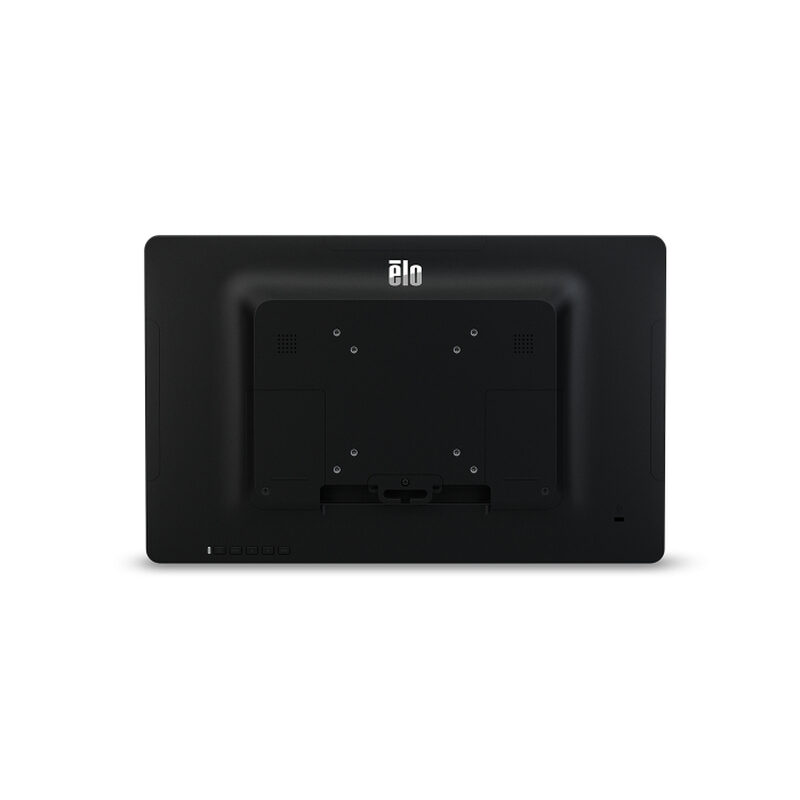

VESA mounting

Yes

Screen shape

Flat

Panel mounting interface

75 x 100 mm

International Protection (IP) code

IPX1

Power consumption (typical)

9.5 W

Power consumption (standby)

1.87 W

Power consumption (off)

0.2 W

AC input voltage

100 – 240 V

AC input frequency

50 – 60 Hz

Width (with stand)

387 mm

Depth (with stand)

32.4 mm

Height (with stand)

244.4 mm

Weight (with stand)

1.16 kg

Package width

175 mm

Package depth

451 mm

Package height

320 mm

Package weight

3.39 kg

Cables included

AC, USB Type-A to USB Type-C, HDMI

Operating temperature (T-T)

0 – 40 °C

Operating relative humidity (H-H)

20 – 80%

Storage temperature (T-T)

-20 – 60 °C

Storage relative humidity (H-H)

10 – 95%

Quick start guide

Yes

HD type

Full HD

Panel type

TFT

Native aspect ratio

16:9

Supported graphics resolutions

1280 x 720 (HD 720), 720 x 400, 1280 x 800 (WXGA), 1280 x 960, 1280 x 1024 (SXGA), 1360 x 768 (WXGA), 800 x 600 (SVGA), 1366 x 768, 1440 x 900 (WXGA+), 1024 x 768 (XGA), 640 x 480 (VGA), 640 x 400, 16

On Screen Display (OSD)

Yes

Energy efficiency class (SDR)

E

Energy consumption (SDR) per 1000 hours

12 kWh

Energy efficiency scale

A to G

Viewable size, horizontal

34.4 cm

Viewable size, vertical

19.4 cm

Anti-glare screen

Yes

DC-in jack

Yes

Package type

Box
