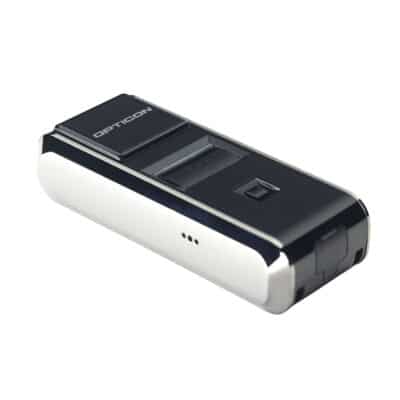

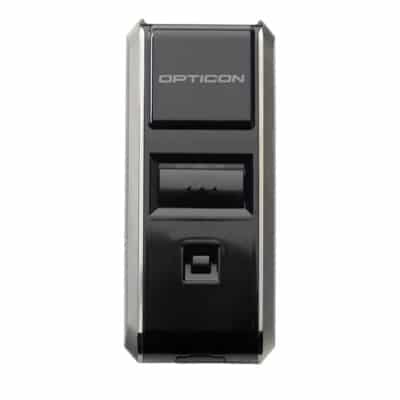

Opticon OPN-3002N, Companion Scanner, Bluetooth
HIGHLIGHTS
- Handheld bar code reader ABS synthetics Black, Silver
- Scanner type: 1D/2D Sensor type: CMOS
- Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), JAN, MSI, Plessey, Telepen, Trioptic, U.P.C. Aztec Code, Codablock, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
- Tilt reading angle: 0 - 360°
- Built-in processor 96 MHz
- Wired & Wireless Standard interfaces: Bluetooth, USB
- Power source type: Battery
Opticon OPN-3002N, Companion Scanner, Bluetooth
2.750,00kr. Ekskl. moms
Data Collector, 2D CMOS, 32-bit CISC CPU, Flash 1MB, Bluetooth 2.1, mini USB
Stock visibility Not in stock
- Beskrivelse
- Yderligere information
Beskrivelse
Opticon OPN-3002n. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired & Wireless, Standard interfaces: Bluetooth, USB, Bluetooth version: 2.1+EDR. Product colour: Black, Silver, Housing material: ABS synthetics, Keys quantity: 2 keys. Power source type: Battery, Battery life: 10 h. Weight: 57 g, Width: 36 mm, Depth: 21.5 mm
The OPN-3002n is supplied as a ready to go functional kit including a USB cable and lanyard. With its unique ergonomic design and weighing only 60 grams the OPN-3002 is perfectly suited to being worn around the user’s neck with the lanyard supplied. The OPN-3002n has a drop resistance to 1.5 meters (no need for a special protection cover).
Ease in use
Using the OPN-3002n is straightforward. No special training is needed as users only need to press a trigger key to operate and a reset key to control mistakes.
Yderligere information
| Type | Handheld bar code reader |
|---|---|
| Scanner type | 1D/2D |
| Forbindelse | |
| Sensor type | CMOS |
| Tilt reading angle | 0 – 360° |
| Pitch reading angle | -50 – 50° |
| Connectivity technology | Wired & Wireless |
| Standard interfaces | Bluetooth, USB |
| Bluetooth version | 2.1+EDR |
| Product colour | Black, Silver |
| Housing material | ABS synthetics |
| LED indicators | Yes |
| Buzzer | Yes |
| Power source type | Battery |
| Weight | 57 g |
| Width | 36 mm |
| Depth | 21.5 mm |
| Height | 83 mm |
| Cables included | USB |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 20 – 85% |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Codablock, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Keys quantity | 2 keys |
| Built-in display | No |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), JAN, MSI, Plessey, Telepen, Trioptic, U.P.C. |
| Battery life | 10 h |
| Certification | CE, FCC, VCCI, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II, IEC62471-1, EN60950-1, IEC60950-1, EN55022, EN55024 |
| Optical sensor resolution | 360960 pixels |
| Internal memory | 1 MB |
| Built-in processor | 32-bit CISC |
| Processor frequency | 96 MHz |
| Compliance certificates | RoHS |
| RAM capacity | 0.096 MB |
| Scanningsmotor |
