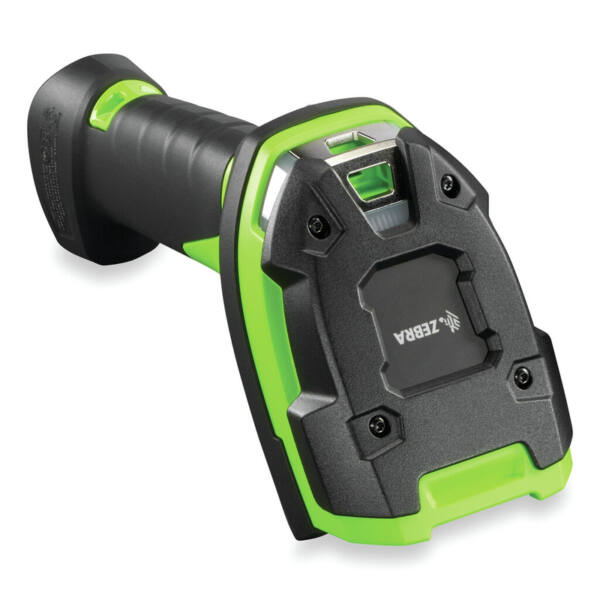

Zebra DS3678-HD Rugged Green Standard Cradle USB No Line Cord Kit:

HIGHLIGHTS

  • Handheld bar code reader Black, Green
  • Scanner type: 1D/2D Sensor type: Laser
  • Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
  • Tilt reading angle: -65 - 65°
  • Wired & Wireless Standard interfaces: RS-232, USB, Keyboard wedge
  • Bluetooth Low Energy (BLE)
  • Power source type: Battery Lithium-Ion (Li-Ion) 3100 mAh

Zebra DS3678-HD Rugged Green Standard Cradle USB No Line Cord Kit:

7.549,00kr. Ekskl. moms

DS3678-HD, 1D/2D Imager, IUID, 655nm laser, 1280 x 960, Two warm white light LED, Bluetooth 4.0 (LE)

Varenummer (SKU): DS3678-HD3U42A0SFW Brand:
Delfi SKU: 7405428

Stock visibility På lager – 2-5 dages levering

Beskrivelse

Zebra DS3678-HD. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: Laser. Connectivity technology: Wired & Wireless, Standard interfaces: RS-232, USB, Keyboard wedge, Wireless range: 100 m. Product colour: Black, Green, International Protection (IP) code: IP67, Protection features: Dust resistant, Shock resistant, Water resistant. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 3100 mAh. Weight: 411 g, Width: 142 mm, Depth: 76 mm

UNSTOPPABLE PERFORMANCE FOR HIGH DENSITY 1D/2D BARCODES
As a member of the Zebra Ultra-Rugged 3600 Series of scanners, the practically indestructible 1D/2D DS3608-HD corded and DS3678-HD cordless scanner is ready for one of the world’s toughest environments — the electronics manufacturing production line.

You get the truly unstoppable performance you need to prevent the high cost of unplanned production line downtime. Your workers get first-time every time capture of the many types of small and high-density barcodes printed on the components in the products you make.

And since these scanners also capture standard barcodes in virtually any condition, you get a real value — unstoppable performance in a single flexible device that can meet scanning needs from the assembly line to the warehouse.

SUPERIOR PERFORMANCE
You get the ultimate in scanning performance — period. Your workers can capture virtually any high-density and standard 1D or 2D barcode at lightning speed, regardless of whether it is printed on a paper label or directly on a product component. Even if barcodes are damaged, dirty or poorly printed, no problem — this intelligent scanner can handle it all.

ULTRA-RUGGED DESIGN
The warehouse and manufacturing plant floor is as tough as its gets. That’s why we created a new product category — the ultra-rugged scanner. The corded and cordless models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.

UNRIVALED MANAGEABILITY
With our complimentary industry-best tools, managing these scanners couldn’t be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.

Yderligere information

Type

Handheld bar code reader

Scanner type

1D/2D

Sensor type

Laser

Tilt reading angle

-65 – 65°

Pitch reading angle

-65 – 65°

Yaw reading angle

-45 – 45°

Connectivity technology

Wired & Wireless

Standard interfaces

RS-232, USB, Keyboard wedge

Wireless range

100 m

Bluetooth version

4.0

Product colour

Black, Green

LED indicators

Yes

Power source type

Battery

Weight

411 g

Width

142 mm

Depth

76 mm

Height

185 mm

Operating temperature (T-T)

-20 – 50 °C

Storage temperature (T-T)

-40 – 70 °C

Operating relative humidity (H-H)

5 – 95%

Harmonized System (HS) code

84716070

2D (matrix & stacked) barcodes supported

Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39

Wavelength

655 nm

International Protection (IP) code

IP67

Protection features

Dust resistant, Shock resistant, Water resistant

Battery technology

Lithium-Ion (Li-Ion)

Battery capacity

3100 mAh

Number of reads per charge

100000

Linear (1D) barcodes supported

Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.

Bluetooth Low Energy (BLE)

Yes

Optical sensor resolution

1280 pixels

Programming function

Yes

Ethernet LAN

Yes

Compliance certificates

RoHS
