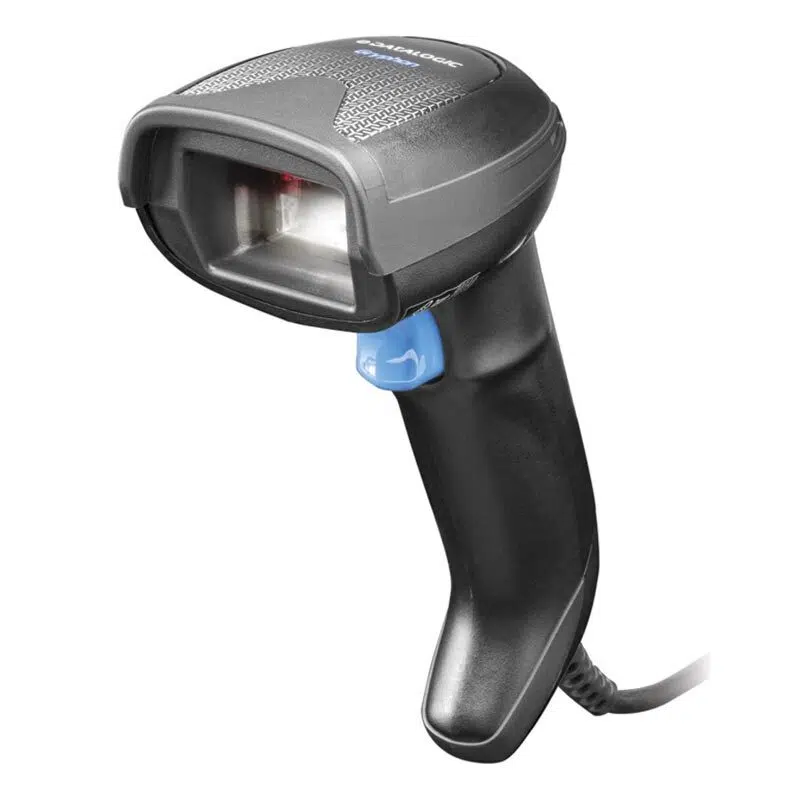

Datalogic Gryphon GD4520, Scanner, 1D/2D, USB,
















HIGHLIGHTS
- Handheld bar code reader Black
- Scanner type: 1D/2D
- Code 39, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, PDF417, Planet, POSTNET, U.P.C. Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
- 1280 x 800 pixels
- Tilt reading angle: 0 - 360°
- Wired Standard interfaces: USB
- Power source type: DC
Datalogic Gryphon GD4520, Scanner, 1D/2D, USB,
1.684,00kr. Exkl. MwSt
Kit, 2D Mpixel Imager, USB-only, Black (Kit includes Scanner and USB Cable 90A052258)
Stock visibility In stock – 2-5 days delivery
- Beschreibung
- Zusätzliche Informationen
- Dokumenter
Beschreibung
Datalogic Gryphon I GD4500. Type: Handheld bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: Code 39, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, PDF417, Planet, POSTNET,…. Connectivity technology: Wired, Standard interfaces: USB. Product colour: Black, International Protection (IP) code: IP52, Protection features: Shock resistant. Power source type: DC, Input voltage: 5 V, Power consumption: 300 mA. Weight: 161 g, Width: 68 mm, Depth: 109 mm
The Gryphon™ 4500 2D series represents the premium range of hand held scanners from Datalogic. The GD4500 scanner is the desk (corded) version for general purpose applications.
The Gryphon I GD4500 imager stands out with an elegant and trendy new design, unchallenged ergonomics and features the most advanced Megapixel sensor with warm-white-illumination 2D technology for outstanding performance.
The Gryphon GD4500 imager takes advantage of Datalogic’s Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering both hand held and presentation reading options.
Datalogic’s reading technology with highly visible warm-white illumination is easier on the human eyes and reads colored labels much better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment.
The GD4500 imager is also available in a Healthcare model with disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.
Zusätzliche Informationen
Scanengine | |
---|---|
Type | Handheld bar code reader |
Scanner type | 1D/2D |
Optical sensor resolution (W x H) | 1280 x 800 pixels |
Verbindung | |
Light levels (direct sunlight) | 0 – 100000 lx |
Tilt reading angle | 0 – 360° |
Pitch reading angle | -65 – 65° |
Yaw reading angle | -65 – 65° |
Connectivity technology | Wired |
Standard interfaces | USB |
Product colour | |
Power source type | DC |
Input voltage | 5 V |
Power consumption | 300 mA |
Weight | 161 g |
Width | 68 mm |
Depth | 109 mm |
Height | 166 mm |
Cables included | USB |
Operating temperature (T-T) | 0 – 40 °C |
Storage temperature (T-T) | -40 – 70 °C |
Operating relative humidity (H-H) | 0 – 95% |
Harmonized System (HS) code | 84716070 |
2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
Wavelength | 650 nm |
International Protection (IP) code | IP52 |
Protection features | Shock resistant |
Built-in display | No |
Linear (1D) barcodes supported | Code 39, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, PDF417, Planet, POSTNET, U.P.C. |
Certification | IEC 60825 Class 2 |
Motion tolerance (cm/s) | 88.9 |
Image formats supported | BMP, JPEG |
Compliance certificates | RoHS |
