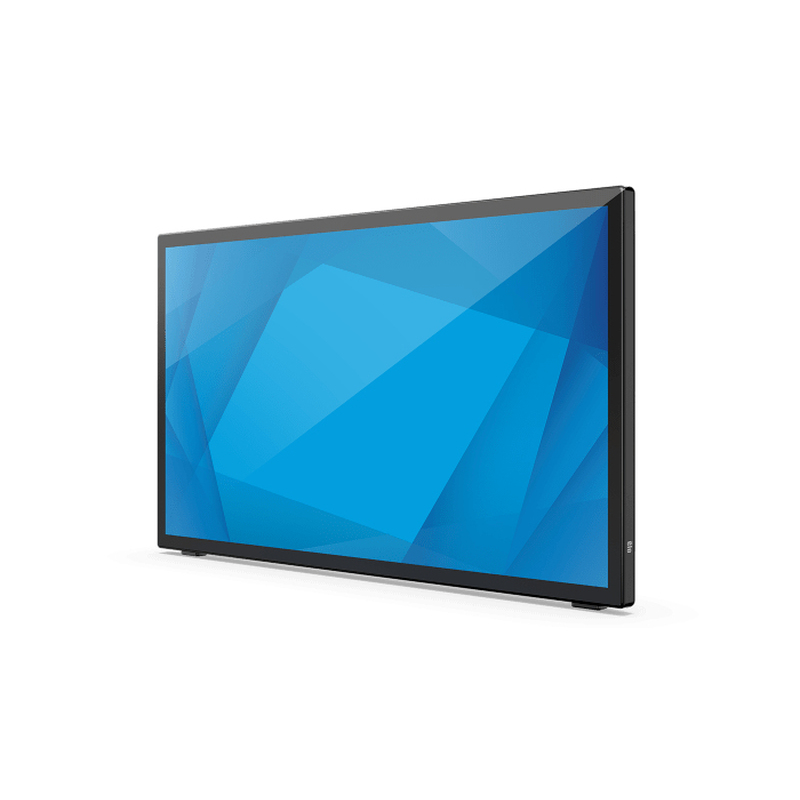

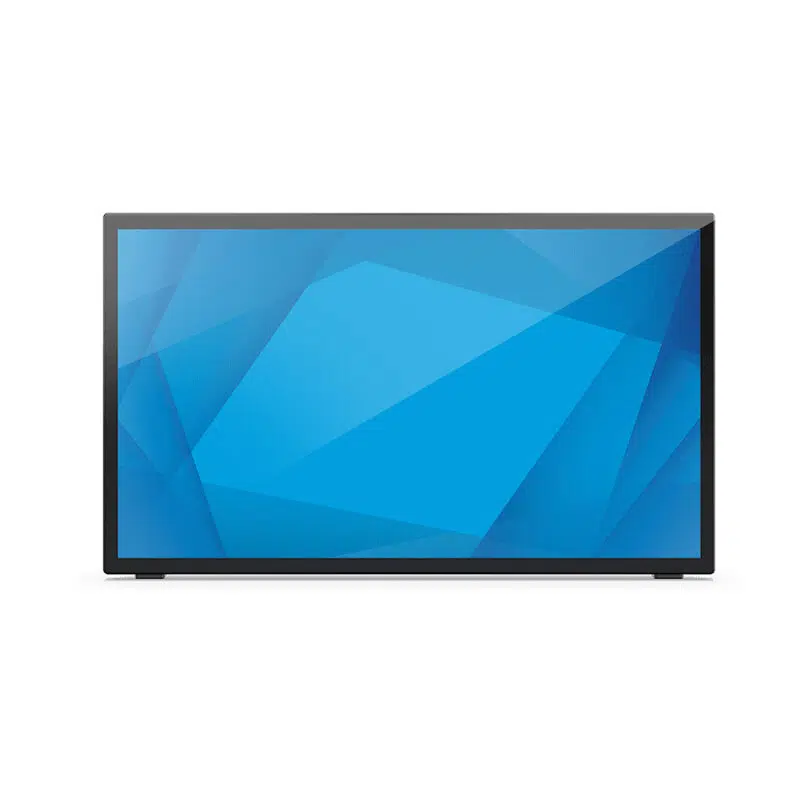

Elo 2270L 22-inch wide LCD Monitor, Full HD, Projected Capacitive 10-touch, USB Controller,
HIGHLIGHTS
- Touchscreen 54.6 cm (21.5") LCD TFT
- 4K Ultra HD 1920 x 1080 pixels 16:9
- 60 Hz 14 ms 1000:1
- Flicker-free technology
- D 12 kWh 13.8 W
Elo 2270L 22-inch wide LCD Monitor, Full HD, Projected Capacitive 10-touch, USB Controller,
458,68 € Excl. VAT
21.5”, TFT LCD (LED), 16:9, 1920 x 1080, 50, 60Hz, PCAP, 10 Touch, Two x 2W internal speakers, Black, clear
Stock visibility In stock – 2-5 days delivery
- Description
- Additional information
- Dokumenter
Description
Elo Touch Solutions E510259. Display diagonal: 54.6 cm (21.5″), Display resolution: 1920 x 1080 pixels, HD type: 4K Ultra HD, Display technology: LCD, Response time: 14 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub. VESA mounting. Product colour: Black
The bezel just got smaller.
The 2270L 22” touchscreen offers up to a 70% reduction in the bezel compared to similar models.
Minimalistic design to fit any space.
From 20 degrees to 70 degrees, angle the display where you want it.
Place it on a desktop, mount it on a wall or configure the 2270L to fit your space with VESA-compatibility.
VESA-compatibility. Built-in speakers and integrated IO.
Durable, energy efficient touchscreen.
Scratch-resistant glass surface.
IK07 impact resistant.
ES8.0 certified for greater energy efficiency.
Increase viewing comfort with low blue light and flicker free features.
Navigate the OSD directly on the touchscreen.
We have made it easier to manage your On-Screen Display (OSD) controls – Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.
3-year
Additional information
| Display diagonal | 54.6 cm (21.5″) |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Touchscreen | Yes |
| HD type | 4K Ultra HD |
| Panel type | TFT |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 60 Hz |
| Display number of colours | 1.67 billion colours |
| Touchscreen technology | Capacitive |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Response time | 14 ms |
| Anti-glare screen | No |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Number of speakers | 2 |
| RMS rated power | 20 W |
| Product colour | Black |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| Energy efficiency class (SDR) | D |
| Energy consumption (SDR) per 1000 hours | 12 kWh |
| Power consumption (typical) | 13.8 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.16 W |
| Energy efficiency scale | A to G |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage relative humidity (H-H) | 10 – 95% |
| Cables included | AC, HDMI, USB |
| Width (without stand) | 504.7 mm |
| Depth (without stand) | 41.3 mm |
| Height (without stand) | 302.4 mm |
| Weight (without stand) | 4.1 kg |
| Package width | 589 mm |
| Package depth | 395 mm |
| Package height | 136 mm |
| Package weight | 6.3 kg |
| Aspect ratio | 16:9 |
| Horizontal scan range | 30 – 82 kHz |
| Vertical scan range | 50 – 75 Hz |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
| Certification | UL, FCC A, cUL, IC, CB, CE A, C-Tick A, NOM CoC, CCC |
| Built-in USB hub | Yes |
| USB upstream port type | USB Type-A, USB Type-B |
| DisplayPorts quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
| Energy efficiency class (HDR) | Not available |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Quick start guide | Yes |
| Sustainability certificates | ENERGY STAR |
| Mean time between failures (MTBF) | 50000 h |
| European Product Registry for Energy Labelling (EPREL) code | 1361162 |
| Compliance certificates | RoHS |
