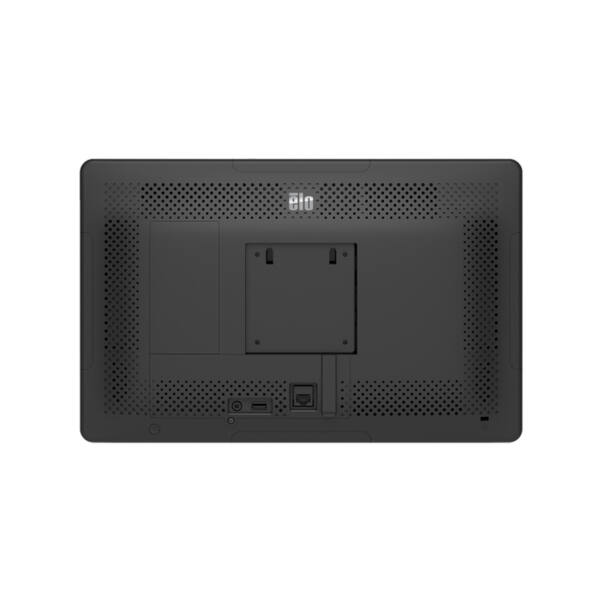

Elo I-Series 2.0, Touch Computer, 15,6”,
Elo I-Series 2.0, Touch Computer, 15,6”,
9.805,00kr. Excl. VAT
PCAP i3, 15.6” diagonal, Active matrix TFT LCD (LED) 1920 x 1080, Intel Core i3-8100T Processor, Intel H310 Express, Intel UHD Graphics 630, 8GB 2666MHz DDR4 SO-DIMM, 128GB M.2 SATA SSD
Stock visibility Not in stock
- Description
- Additional information
- Dokumenter
Description
Elo Touch Solutions I-Series E850003. Product type: All-in-One tablet PC. Display diagonal: 39.6 cm (15.6″), HD type: Full HD, Display resolution: 1920 x 1080 pixels, Touchscreen, Screen shape: Flat. Processor family: Intel® Core™ i3, Processor frequency: 3.1 GHz. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 128 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics 630. Product colour: Black
I-Series for Windows
Elo’s I-Series for Windows delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Windows-based platform—all in a sleek, yet durable fixed tablet form factor.
Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series for Windows can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.
Endless Versatility
The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.
Configure with Elo Edge Connect
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change.
Stands & Mounts
With a standard VESA mount, we give you the flexibility to mount our products however you want.
Windows or Linux. You Choose.
Elo’s I-Series utilizes the reliability-tested performance and security of Intel’s 8th-generation processors and vPro™ platform. Available with Windows 10 or, for added flexibility, the I-Series offers models with no OS-all pretested with Linux SuSE, Ubuntu and Red Hat operating systems-allowing businesses to get the solution best suited for them.
Get Peace of Mind With EloCare
EloCare is service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.
Additional information
| Product colour | |
|---|---|
| Processor family | |
| Processor cache | 6 MB |
| Processor cores | 4 |
| Motherboard chipset | Intel® H310 |
| 64-bit computing | Yes |
| Processor model | i3-8100T |
| Total storage capacity | |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 32 GB |
| Memory slots type | SO-DIMM |
| Memory slots | 2 |
| Memory clock speed | 2666 MHz |
| Optical drive type | No |
| Display diagonal | |
| Display resolution | |
| LED backlight | Yes |
| Touchscreen | |
| Touch technology | Multi-touch |
| Card reader integrated | No |
| Discrete graphics card model | Not available |
| System bus rate | 8 GT/s |
| RMS rated power | 2 W |
| Built-in speaker(s) | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| Headphone outputs | 1 |
| AC adapter input voltage | 100 – 240 V |
| AC adapter frequency | 50-60 Hz |
| AC adapter power | 100 W |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 20 – 80% |
| Operating temperature (T-T) | 0 – 35 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Bluetooth version | 5.0 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | |
| Package weight | 4.3 kg |
| Trusted Platform Module (TPM) | Yes |
| Operating system installed | |
| Built-in camera | No |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Processor threads | 4 |
| Processor manufacturer | Intel |
| Number of SSDs installed | 1 |
| Processor socket | LGA 1151 (Socket H4) |
| PCI Express slots version | 3.0 |
| SSD capacity | 128 GB |
| 3D | No |
| Processor frequency | 3.1 GHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Internal memory | |
| Intel® Turbo Boost Technology | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| On-board graphics card | Yes |
| Product type | All-in-One tablet PC |
| Storage media | SSD |
| Package width | 462 mm |
| Package height | 346 mm |
| Package depth | 216 mm |
| Enhanced Intel SpeedStep Technology | Yes |
| Memory bandwidth supported by processor (max) | 37.5 GB/s |
| Bus type | DMI3 |
| Memory channels supported by processor | Dual |
| PCI Express configurations | 1×16, 1×8+2×4, 2×8 |
| Memory clock speeds supported by processor | 2400 MHz |
| Processor operating modes | 64-bit |
| Configurable TDP-down frequency | 2.4 GHz |
| Configurable TDP-down | 25 W |
| Tjunction | 82 °C |
| Processor lithography | 14 nm |
| Maximum internal memory supported by processor | 64 GB |
| Thermal Design Power (TDP) | 35 W |
| Processor cache type | Smart Cache |
| ECC supported by processor | Yes |
| Stepping | B0 |
| Memory types supported by processor | DDR4-SDRAM |
| Processor codename | Coffee Lake |
| Maximum number of PCI Express lanes | 16 |
| Detachable display | No |
| HD type | |
| Screen shape | Flat |
| On-board graphics card DirectX version | 12.0 |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card ID | 0x3E91 |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| CPU configuration (max) | 1 |
| Thermal solution specification | PCG 2015A |
| Intel® InTru™ 3D Technology | Yes |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Intel Clear Video Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel TSX-NI version | 0.00 |
| Idle States | Yes |
| Processor package size | 37.5 x 37.5 mm |
| Intel 64 | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Execute Disable Bit | Yes |
| Intel® Secure Key | Yes |
| Embedded options available | Yes |
| Intel TSX-NI | No |
| Processor code | SR3Y8 |
| Intel Virtualization Technology (VT-x) | Yes |
| Scalability | 1S |
| Intel Trusted Execution Technology | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel® Smart Cache | Yes |
| Intel Secure Key Technology version | 1.00 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Processor ARK ID | 129944 |
| Discrete graphics card | |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card 4K support | Yes |
| Number of speakers | 2 |
| Pen included | No |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| SSD form factor | M.2 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Total SSDs capacity | 128 GB |
| Harmonized System (HS) code | 84713000 |
| Response time | 25 ms |
| Native aspect ratio | 16:9 |
| Width (with stand) | 384.2 mm |
| Depth (with stand) | 43.8 mm |
| Height (with stand) | 246.4 mm |
| Weight (with stand) | 2.2 kg |
| Processor generation | 8th gen Intel® Core™ i3 |
