Elo 3203L, Touch Monitor, 31,5”, Full HD
Elo 3203L, Touch Monitor, 31,5”, Full HD
9.995,00kr. Ekskl. moms.
31.5”, 1920×1080, 16:9, TouchPro PCAP, 8 ms, HDMI, USB, DP, TRS, RJ-45, HDCP, RMS 2x 5W, 764.7×459.1×57.2 mm
Stock visibility Not in stock
- Beskrivning
- Ytterligare information
- Dokumenter
Beskrivning
Elo Touch Solutions 3203L. Display diagonal: 80 cm (31.5″), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 382 cd/m², HD type: Full HD, Touchscreen. Product colour: Black
Elo’s 32-inch touchscreen display provides a brilliant canvas for adding interactivity to any environment. Perfect for everything from endless aisle and brand experiences to menu boards, collaborative meetings and dashboarding, the 3203L offers a sleek, slim design built to withstand the rigors of continuous commercial use. And with Elo’s computer modules, you can easily turn the display into a powerful, all-in-one, life-size tablet.
Enabling up to 40 touches with fast and extremely sensitive response time and anti-friction glass to minimize heat as fingertips drag across the screen, Elo’s 3203L with industry leading TouchPro PCAP technology is designed with the user in mind. And with touch thru capability, the interactive display can be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.
Collaboration for All Environments
Purpose-built to make collaboration easy – simply add the Huddle Kit with the 3203L Interactive Display to enable seamless meetings and heightened teamwork with the effectiveness of an in person meeting. Start driving concepts and innovation beyond what a phone call, projector or whiteboard and dry erase marker once did.
Elo Edge Connect Lets You do More
Expand your touchscreen’s potential by adding a payment device, barcode scanner, camera, NFC/RFID or one of our many other accessories. With the Elo Edge Connect system, accessories snap on to the edge of the touchscreen for a clean design and extended functionality.
Add Windows Computing
Power with Ease
The commercial-grade computer module transforms Elo’s touchscreen into a powerful, all-in-one, touch computer platform. Running Intel Core 7th-Generation CPUs and enhanced graphics engine, the ECMG4s make field installation and maintenance easy with no external cables required.
Android – Scalability
Simplified
With the Elo Backpack, an Android-powered compute engine, you can transform any Elo touchscreen into a scalable and powerful media platform. Powered by EloView, content-delivery and remote-management of your entire network has never been easier. The low-power, solid-state, fan-less computing solution offers everything needed in an affordable, compact design.
Ytterligare information
| Product colour | |
|---|---|
| HDCP | Yes |
| Certification | UL 62368-1 |
| Vertical scan range | 24 – 64 Hz |
| Display brightness | |
| Display resolution | |
| Native aspect ratio | 16:9 |
| Horizontal scan range | 30 – 135 kHz |
| Display diagonal | |
| Response time | 8 ms |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1280 x 960, 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| HD type | |
| Viewing angle, vertical | 178° |
| Contrast ratio (typical) | 3000:1 |
| Viewing angle, horizontal | 178° |
| RMS rated power | 10 W |
| Built-in speaker(s) | Yes |
| HDMI ports quantity | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power consumption (typical) | 44 W |
| Power consumption (standby) | 1.43 W |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100-240 V |
| Storage relative humidity (H-H) | 10 – 90% |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -20 – 60 °C |
| Package width | 890 mm |
| Cables included | AC, HDMI, USB |
| Package depth | 160 mm |
| Package weight | 15.3 kg |
| Package height | 640 mm |
| On Screen Display (OSD) | Yes |
| Panel mounting interface | 400 x 400 mm |
| Power consumption (off) | 0.29 W |
| DisplayPorts quantity | 1 |
| Built-in microphone | No |
| Headphone outputs | 1 |
| Display technology | |
| Mean time between failures (MTBF) | 50000 h |
| Built-in camera | No |
| Touchscreen | Yes |
| HDMI version | 1.4 |
| Depth (without stand) | 57.2 mm |
| Display viewable area (HxV) | 698.4 x 392.9 mm |
| Number of simultaneous touchpoints | 40 |
| Weight (without stand) | 11.9 kg |
| Height (without stand) | 459.1 mm |
| DisplayPort version | 1.2 |
| VESA mounting | Yes |
| Panel type | TFT |
| Power supply type | AC |
| Display number of colours | 16.78 million colours |
| Placement supported | Horizontal/Vertical |
| Maximum refresh rate | 60 Hz |
| Energy efficiency scale | A to G |
| Sustainability certificates | ENERGY STAR |
| Harmonized System (HS) code | 85285210 |
| Touchscreen technology | Projected capacitive system |
| Wall mountable | Yes |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 29 kWh |
| Screen shape | Flat |
Relaterade populära produkter
Delfi 15" Touch PoS Monitor, True-Flat, P-CAP,
Elo I-Series 3.0 Standard, Touch Computer, 15,6''
Elo 6553L, Touch Monitor, 64,6'', 4K UHD
Elo 1723L 17-inch LCD (LED backlight) Desktop, Projected Capacitve 10-touch

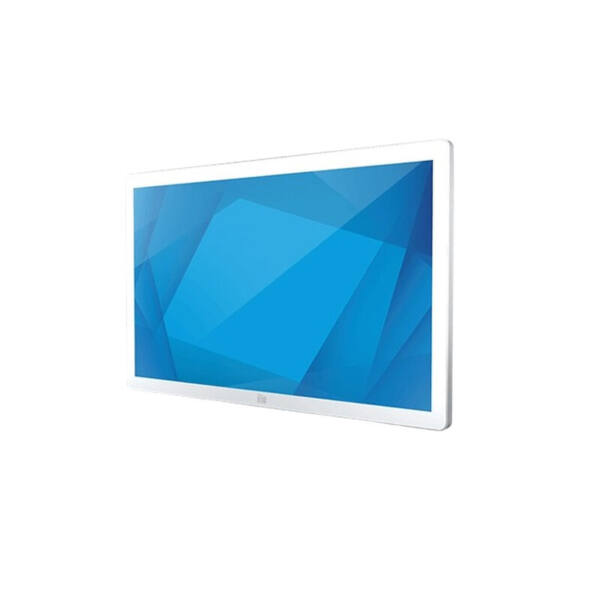

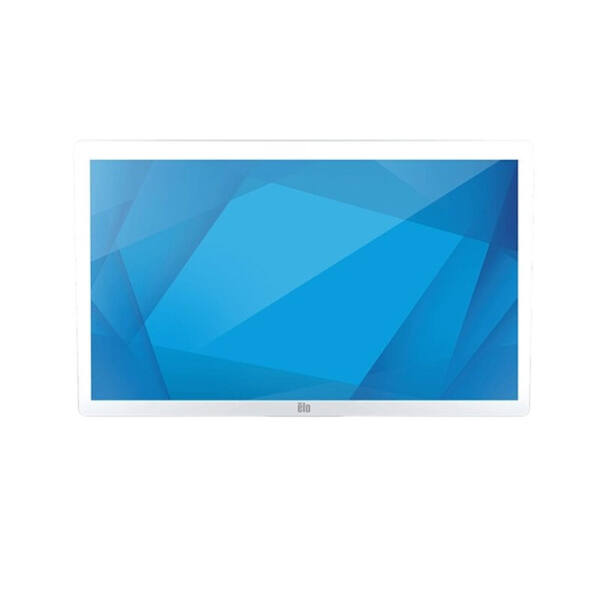

Elo 2703LM 27-inch wide LCD Medical Grade Touch Monitor, Full HD, Projected Capacitive 10-touch,

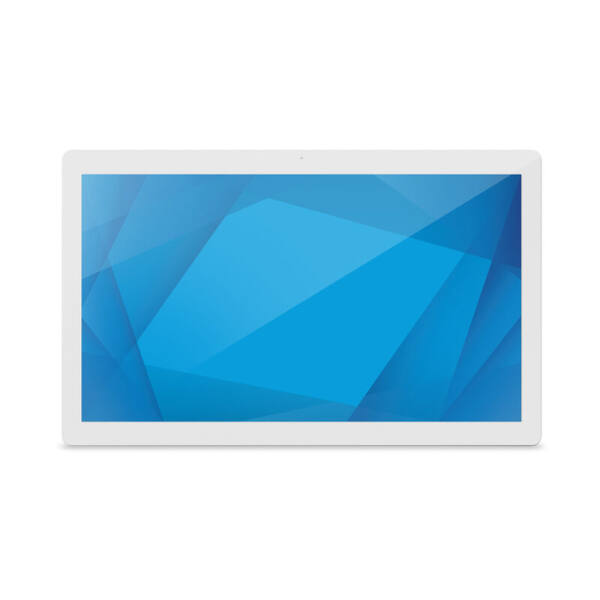

Elo I-Series 4 VALUE, Android 10 with GMS, 21.5-inch, 1920 x 1080 display, Rockchip 3399 Processor,
