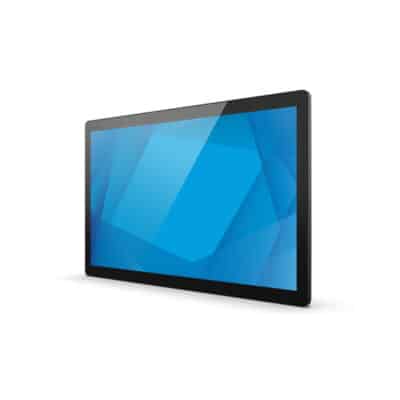

Elo I-Series 2.0, Touchcomputer 21.5”
Elo I-Series 2.0, Touchcomputer 21.5”
8.695,00kr. Ekskl. moms.
PCAP i2, 21.5” diagonal, Active matrix TFT LCD (LED) 1920 x 1080, Intel Celeron J4105 Processor, Intel UHD Graphics 600, 4GB 2666MHz DDR4 SO-DIMM, 128GB M.2 SATA SSD
Stock visibility Not in stock
- Beskrivning
- Ytterligare information
Beskrivning
Elo Touch Solutions I-Series E692837. Product type: All-in-One tablet PC. Display diagonal: 54.6 cm (21.5″), HD type: Full HD, Display resolution: 1920 x 1080 pixels, Touchscreen, Screen shape: Flat. Processor family: Intel® Celeron®, Processor frequency: 1.5 GHz. Internal memory: 4 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 128 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics 600. Product colour: Black
I-Series for Windows
Elo’s I-Series for Windows delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Windows-based platform—all in a sleek, yet durable fixed tablet form factor.
Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series for Windows can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.
Endless Versatility
The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.
Configure with Elo Edge Connect
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change.
Stands & Mounts
With a standard VESA mount, we give you the flexibility to mount our products however you want.
Windows or Linux. You Choose.
Elo’s I-Series utilizes the reliability-tested performance and security of Intel’s 8th-generation processors and vPro™ platform. Available with Windows 10 or, for added flexibility, the I-Series offers models with no OS-all pretested with Linux SuSE, Ubuntu and Red Hat operating systems-allowing businesses to get the solution best suited for them.
Get Peace of Mind With EloCare
EloCare is service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.
Ytterligare information
| Product colour | |
|---|---|
| Skärmstorlek | |
| Processor boost frequency | 2.5 GHz |
| Kommunikation | |
| Processor family | |
| Processor cache | 4 MB |
| Processor cores | 4 |
| 64-bit computing | Yes |
| Processor model | J4105 |
| Total storage capacity | |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 8 GB |
| Memory slots type | SO-DIMM |
| Memory slots | 2 |
| Memory clock speed | 2666 MHz |
| Optical drive type | No |
| Display brightness | 225 cd/m² |
| Display diagonal | |
| Display resolution | |
| LED backlight | Yes |
| Touchscreen | |
| Touch technology | Multi-touch |
| Compatible memory cards | Not supported |
| Card reader integrated | No |
| Discrete graphics card model | Not available |
| RMS rated power | 2 W |
| Built-in speaker(s) | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| Headphone outputs | 1 |
| AC adapter input voltage | 100 – 240 V |
| AC adapter frequency | 50-60 Hz |
| AC adapter power | 100 W |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 20 – 80% |
| Operating temperature (T-T) | 0 – 35 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Bluetooth version | 5.0 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | |
| Package weight | 7 kg |
| Trusted Platform Module (TPM) | Yes |
| Operating system installed | |
| Built-in camera | No |
| AC adapter included | Yes |
| Quick start guide | Yes |
| On-board graphics card model | Intel® UHD Graphics 600 |
| Processor threads | 4 |
| Processor manufacturer | Intel |
| Number of SSDs installed | 1 |
| Processor socket | BGA 1090 |
| PCI Express slots version | 2.0 |
| SSD capacity | 128 GB |
| Intel® Smart Response Technology | No |
| 3D | No |
| Processor frequency | 1.5 GHz |
| Memory layout (slots x size) | 1 x 4 GB |
| Internal memory | |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Turbo Boost Technology | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| On-board graphics card | Yes |
| Product type | All-in-One tablet PC |
| Storage media | SSD |
| Package width | 625 mm |
| Package height | 437 mm |
| Package depth | 196 mm |
| Enhanced Intel SpeedStep Technology | Yes |
| Memory channels supported by processor | Dual |
| PCI Express configurations | 1×2, 1×2+2×1, 1×4, 2×1, 4×1 |
| Memory clock speeds supported by processor | 2400 MHz |
| Processor operating modes | 64-bit |
| Conflict-Free processor | Yes |
| Tjunction | 105 °C |
| Processor lithography | 14 nm |
| Maximum internal memory supported by processor | 8 GB |
| Thermal Design Power (TDP) | 10 W |
| ECC supported by processor | No |
| Memory types supported by processor | DDR4-SDRAM, LPDDR4-SDRAM |
| Processor codename | Gemini Lake |
| Maximum number of PCI Express lanes | 6 |
| Detachable display | No |
| HD type | |
| Screen shape | Flat |
| On-board graphics card DirectX version | 12.0 |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card ID | 0x3185 |
| On-board graphics card burst frequency | 750 MHz |
| Maximum on-board graphics card memory | 8 GB |
| On-board graphics card OpenGL version | 4.4 |
| Number of execution units | 12 |
| On-board graphics card base frequency | 250 MHz |
| On-board graphics card dynamic frequency (max) | 750 MHz |
| CPU configuration (max) | 1 |
| Intel® Quick Sync Video Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Idle States | Yes |
| Processor package size | 25 x 24 mm |
| Intel 64 | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® OS Guard | Yes |
| Execute Disable Bit | Yes |
| Intel® Secure Key | Yes |
| Embedded options available | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Smart Response Technology version | 0.00 |
| Thermal Monitoring Technologies | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Display number of colours | 16.78 million colours |
| Processor ARK ID | 128989 |
| Discrete graphics card | |
| On-board graphics card family | Intel® UHD Graphics |
| Number of speakers | 2 |
| Pen included | No |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| SSD form factor | M.2 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Total SSDs capacity | 128 GB |
| Harmonized System (HS) code | 84713000 |
| Response time | 14 ms |
| Native aspect ratio | 16:9 |
| Width (with stand) | 525.9 mm |
| Depth (with stand) | 52.6 mm |
| Height (with stand) | 319.2 mm |
| Weight (with stand) | 5.2 kg |
