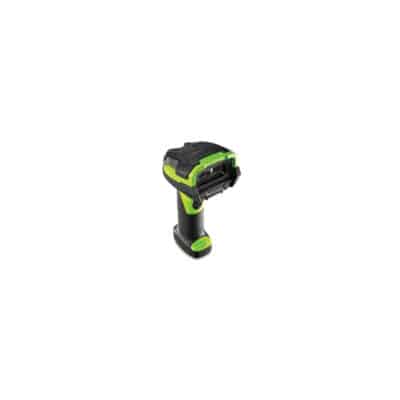

Zebra DS3678-ER, Barcode Scanner, 2D ER, BT,

HIGHLIGHTS

  • Handheld bar code reader Black, Green
  • Scanner type: 1D/2D Sensor type: Laser
  • Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
  • Tilt reading angle: -65 - 65°
  • Wired & Wireless Standard interfaces: RS-232, USB, Keyboard wedge
  • Bluetooth Low Energy (BLE)
  • Power source type: Battery Lithium-Ion (Li-Ion) 3100 mAh

Zebra DS3678-ER, Barcode Scanner, 2D ER, BT,

11 476,22 kr Ekskl. moms.

DS3678-ER, 1D/2D Imager, 655nm laser, 1280 x 800, One 660nm LED, Bluetooth 4.0 (LE)

Artikelnr: DS3678-ER3U42A2SVW Varumärke:
Delfi SKU: 7400124

Stock visibility I lager – 2-5 dags leverans

Beskrivning

Zebra DS3678-ER. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: Laser. Connectivity technology: Wired & Wireless, Standard interfaces: RS-232, USB, Keyboard wedge, Wireless range: 100 m. Product colour: Black, Green, International Protection (IP) code: IP67, Protection features: Dust resistant, Shock resistant, Water resistant. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 3100 mAh. Weight: 436 g, Width: 142 mm, Depth: 76 mm

UNSTOPPABLE PERFORMANCE FOR EXTENDED-RANGE 1D/2D BARCODE CAPTURE
As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-ER corded and DS3678-ER cordless scanners are ready for one of the world’s toughest environments — the warehouse. Designed to capture any 1D or 2D barcode from near contact to as far as 70 ft./ 21.4 m away, these scanners provide the ultimate in versatility — workers can capture large picklist codes and small codes at near contact as easily as barcodes on pallets and location codes on the top of your warehouse racks. And truly unstoppable performance helps you drive throughput, accuracy and customer service to a new level.

SUPERIOR PERFORMANCE
You get the ultimate in scanning performance — period. Your workers can scan virtually any 1D or 2D barcode from near contact to as far as 70 ft./ 21.4 m away in practically any condition, as fast as they can pull the trigger. Even if barcodes are under shrinkwrap on a pallet; damaged, dirty or poorly printed; on a picklist; or on your highest warehouse rack, no problem — this intelligent scanner can handle it all.

ULTRA-RUGGED DESIGN
The warehouse and manufacturing plant floor is as tough as its gets. That’s why we created a new product category — the ultra-rugged scanner. These freezer-ready corded and cordless models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.

UNRIVALED MANAGEABILITY
With our complimentary industry-best tools, managing these scanners couldn’t be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.

Ytterligare information

Type

Handheld bar code reader

Skannmotor

,

Scanner type

1D/2D

Sensor type

Laser

Connection

Tilt reading angle

-65 – 65°

Pitch reading angle

-65 – 65°

Yaw reading angle

-45 – 45°

Connectivity technology

Wired & Wireless

Standard interfaces

RS-232, USB, Keyboard wedge

Wireless range

100 m

Bluetooth version

4.0

Product colour

Black, Green

LED indicators

Yes

Power source type

Battery

Weight

436 g

Width

142 mm

Depth

76 mm

Height

185 mm

Cables included

USB

Operating temperature (T-T)

-20 – 50 °C

Storage temperature (T-T)

-40 – 70 °C

Operating relative humidity (H-H)

5 – 95%

Harmonized System (HS) code

84716070

2D (matrix & stacked) barcodes supported

Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39

Wavelength

655 nm

International Protection (IP) code

IP67

Protection features

Dust resistant, Shock resistant, Water resistant

Battery technology

Lithium-Ion (Li-Ion)

Battery capacity

3100 mAh

Number of reads per charge

70000

Linear (1D) barcodes supported

Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.

Bluetooth Low Energy (BLE)

Yes

Charging base

Yes

Optical sensor resolution

1280 pixels

Programming function

Yes

External power adapter

Yes

Ethernet LAN

Yes

Compliance certificates

RoHS
