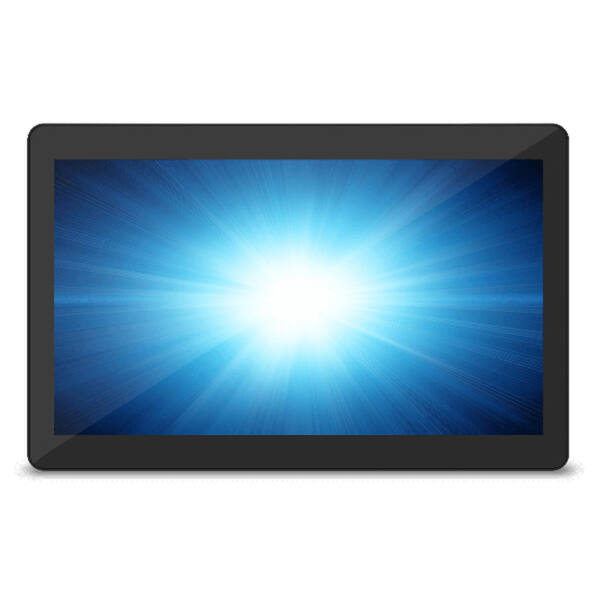

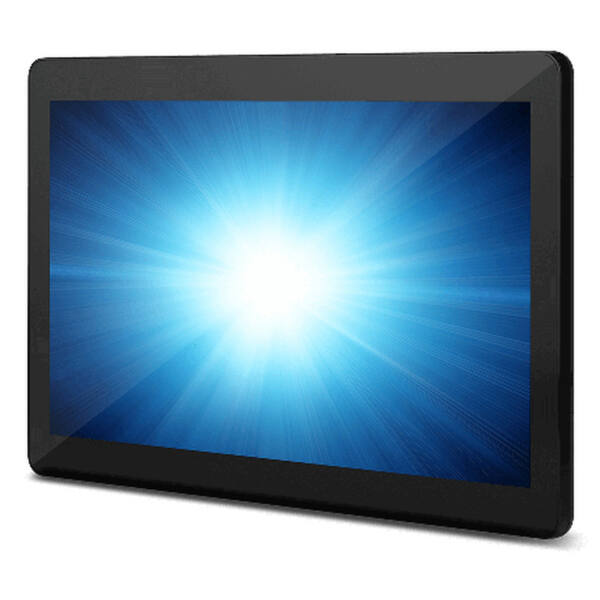

Elo I-Series 2.0, Touch Computer, 21.5”, Win 10
HIGHLIGHTS
- All-in-One tablet PC Black 100 W
- Intel® Core™ i5 i5-8500T 2.1 GHz
- Touchscreen 54.6 cm (21.5") Full HD 1920 x 1080
- 8 GB DDR4-SDRAM 2666 MHz 1 x 8 GB
- 128 GB SSD
- Intel® UHD Graphics 630
- Wi-Fi 5 (802.11ac) Ethernet LAN 10,100,1000 Mbit/s Bluetooth 5.0
- Windows 10
Elo I-Series 2.0, Touch Computer, 21.5”, Win 10
13.655,00kr. Excl. VAT
PCAP i5, 21.5” diagonal, Active matrix TFT LCD (LED) 1920 x 1080, Intel Core i5-8500T Processor, Intel Q370 Express, Intel UHD Graphics 630, 8GB 2666MHz DDR4 SO-DIMM, 128GB M.2 SATA SSD, Windows 10 IoT Enterprise LTSC 64-bit
- Description
- Additional information
- Documents
Description
Elo Touch Solutions I-Series E693022. Product type: All-in-One tablet PC. Display diagonal: 54.6 cm (21.5″), HD type: Full HD, Display resolution: 1920 x 1080 pixels, Touchscreen, Screen shape: Flat. Processor family: Intel® Core™ i5, Processor frequency: 2.1 GHz. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 128 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics 630. Operating system installed: Windows 10. Product colour: Black
I-Series for Windows
Elo’s I-Series for Windows delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Windows-based platform—all in a sleek, yet durable fixed tablet form factor.
Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series for Windows can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.
Endless Versatility
The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.
Configure with Elo Edge Connect
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change.
Stands & Mounts
With a standard VESA mount, we give you the flexibility to mount our products however you want.
Windows or Linux. You Choose.
Elo’s I-Series utilizes the reliability-tested performance and security of Intel’s 8th-generation processors and vPro™ platform. Available with Windows 10 or, for added flexibility, the I-Series offers models with no OS-all pretested with Linux SuSE, Ubuntu and Red Hat operating systems-allowing businesses to get the solution best suited for them.
Get Peace of Mind With EloCare
EloCare is service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.
Additional information
| Display diagonal | 54.6 cm (21.5") |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| LED backlight | Yes |
| Touch technology | Multi-touch |
| Native aspect ratio | 16:9 |
| Display brightness | 225 cd/m² |
| Response time | 14 ms |
| Screen shape | Flat |
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Processor model | i5-8500T |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 3.5 GHz |
| Processor cores | 6 |
| Processor threads | 6 |
| Processor cache | 9 MB |
| 64-bit computing | Yes |
| Thermal Design Power (TDP) | 35 W |
| PCI Express slots version | 3.0 |
| Processor socket | LGA 1151 (Socket H4) |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1×16, 1×8+2×4, 2×8 |
| Tjunction | 100 °C |
| Maximum internal memory supported by processor | 64 GB |
| Conflict-Free processor | Yes |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory channels supported by processor | Dual |
| ECC supported by processor | No |
| Internal memory | 8 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Total storage capacity | 128 GB |
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| SSD form factor | M.2 |
| Card reader integrated | No |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board graphics card model | Intel® UHD Graphics 630 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E92 |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Built-in camera | No |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth version | 5.0 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | All-in-One tablet PC |
| Trusted Platform Module (TPM) | Yes |
| Operating system installed | Windows 10 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 37.5 x 37.5 mm |
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 129941 |
| AC adapter power | 100 W |
| AC adapter frequency | 50-60 Hz |
| AC adapter input voltage | 100 – 240 V |
| Pen included | No |
| Width (with stand) | 525.9 mm |
| Depth (with stand) | 52.6 mm |
| Height (with stand) | 319.2 mm |
| Weight (with stand) | 5.2 kg |
| Package width | 625 mm |
| Package depth | 196 mm |
| Package height | 437 mm |
| Package weight | 7 kg |
| Operating temperature (T-T) | 0 – 35 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage relative humidity (H-H) | 5 – 95% |
| Harmonized System (HS) code | 84713000 |
| 3D | No |
| Detachable display | No |
| Product family | I-Series |
| Display number of colours | 16.78 million colours |
| Compatible memory cards | Not supported |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Configurable TDP-down frequency | 1.6 GHz |
| Configurable TDP-down | 25 W |
| Stepping | U0 |
| Bus type | DMI3 |
| Processor code | SR3XD |
| Memory bandwidth supported by processor (max) | 41.6 GB/s |
| On-board graphics card 4K support | Yes |
| Motherboard chipset | Intel Q370 |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel TSX-NI | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Scalability | 1S |
| Thermal solution specification | PCG 2015A |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel TSX-NI version | 1.00 |
