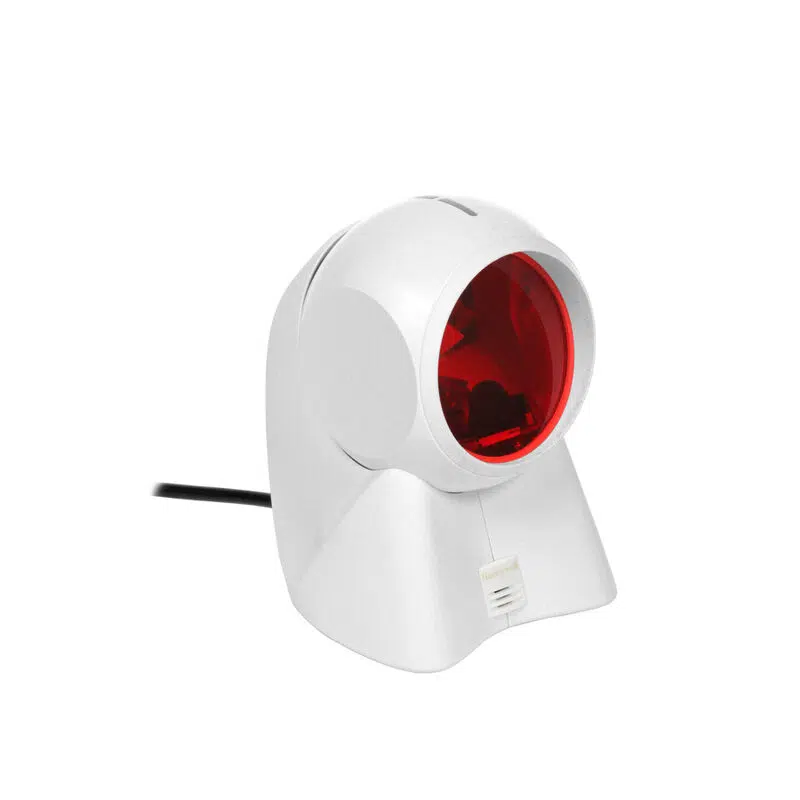

Honeywell USB Kit: 1D, PDF, 2D, White Scanner (7190g-0), USB Type A 3m (9.8) straight cable

HIGHLIGHTS

  • Fixed bar code reader White
  • Scanner type: 1D/2D Sensor type: Laser
  • Code 39, GS1 DataBar Omnidirectional, U.P.C. Data Matrix, PDF417, QR Code
  • Working distance: 32.7 cm
  • Wired Standard interfaces: Keyboard wedge, RS-232, RS-485, USB
  • Power source type: DC

Honeywell USB Kit: 1D, PDF, 2D, White Scanner (7190g-0), USB Type A 3m (9.8) straight cable

3 076,13 kr Ekskl. moms.

Orbit 7190g, USB-kit, 1D/2D, EAS, 410g

Artikelnr: 7190G-0USBX-0 Varumärke:
Delfi SKU: 7405721
I lager – 2-5 dagars leverans

Beskrivning

Honeywell Orbit 7190g. Type: Fixed bar code reader, Scanner type: 1D/2D, Sensor type: Laser. Connectivity technology: Wired, Standard interfaces: Keyboard wedge, RS-232, RS-485, USB. Product colour: White, LED indicators: Status, Certification: CE, RoHS. Power source type: DC, Input voltage: 5 V, Power consumption: 472 mA. Weight: 410 g, Width: 108 mm, Depth: 103 mm

The Orbit 7190g scanner continues the proven, superior 1D laser scanning performance of Orbit series scanners – but adds an area imager for seamless scanning of digital 1D, 2D and PDF codes in a single, convenient device. To speed retail checkouts, the Orbit 7190g scanner features a unique dual-modes design that is optimized for both the cashier and the customer – enabling seamless product barcode scanning and scanning of digital codes off customer smartphones.

Breakthrough Hybrid Technology
The Orbit 7190g scanner integrates both a laser and an imager into a single presentation scanner – no need to buy a separate scanner for printed 1D and digital 1D, 2D and PDF barcodes reading.

Dual-Working Modes
With dual-working modes, the scanner is optimized for both scanning digital codes off customer smartphones and scanning merchandise codes by the cashier at the register.

Superior Scanning Performance
A 20-line omnidirectional laser pattern maintains the proven 1D scanning performance of existing Orbit scanners. With leading Honeywell imaging technology, the scanner reads smartphone coupons and ID cards with ease.

Adjustable Scan Head
The award-winning shape enables handheld scanning of large, bulky items. The adjustable scan head even allows cashiers to tilt the scanner 30° for targeted scanning of larger products.

Multi-Interface Design
Automatic interface detection enables the scanner to configure itself to the appropriate interface upon connection – eliminating the tedious task of scanning programming barcodes.

Ytterligare information

Type

Fixed bar code reader

Scanner type

1D/2D

Sensor type

Laser

Light levels (direct sunlight)

4842 – 100000 lx

Pitch reading angle

0 – 60°

Yaw reading angle

0 – 70°

Connectivity technology

Wired

Standard interfaces

Keyboard wedge, RS-232, RS-485, USB

Product colour

White

LED indicators

Status

Power source type

DC

Input voltage

5 V

Power consumption

472 mA

Weight

410 g

Width

108 mm

Depth

103 mm

Height

148 mm

Cables included

USB

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-40 – 60 °C

Operating relative humidity (H-H)

5 – 95%

Harmonized System (HS) code

84716070

2D (matrix & stacked) barcodes supported

Data Matrix, PDF417, QR Code

Built-in display

No

Linear (1D) barcodes supported

Code 39, GS1 DataBar Omnidirectional, U.P.C.

Certification

CE, RoHS

Read rate (max)

1120 reads/s

Working distance

32.7 cm

Compliance certificates

RoHS
