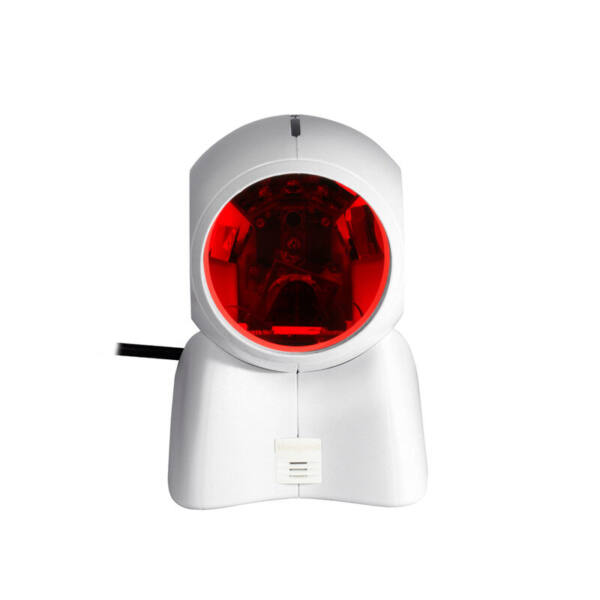

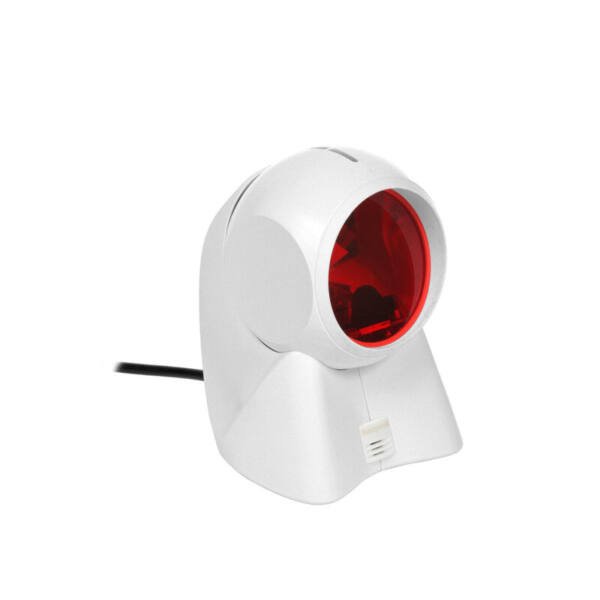

Honeywell USB Kit: 1D, PDF, 2D, White Scanner (7190g-0), USB Type A 3m (9.8) straight cable

HIGHLIGHTS

  • Fixed bar code reader White
  • Scanner type: 1D/2D Sensor type: Laser
  • Code 39, GS1 DataBar Omnidirectional, U.P.C. Data Matrix, PDF417, QR Code
  • Working distance: 32.7 cm
  • Wired Standard interfaces: Keyboard wedge, RS-232, RS-485, USB
  • Power source type: DC

Honeywell USB Kit: 1D, PDF, 2D, White Scanner (7190g-0), USB Type A 3m (9.8) straight cable

Orbit 7190g, USB-kit, 1D/2D, EAS, 410g

2.088,00kr. Excl. VAT

SKU: 7190G-0USBX-0 Delfi nr.: 7405721
In stock – 2-5 days delivery

Description

Honeywell Orbit 7190g. Type: Fixed bar code reader, Scanner type: 1D/2D, Sensor type: Laser. Connectivity technology: Wired, Standard interfaces: Keyboard wedge, RS-232, RS-485, USB. Product colour: White, LED indicators: Status, Certification: CE, RoHS. Power source type: DC, Input voltage: 5 V, Power consumption: 472 mA. Weight: 410 g, Width: 108 mm, Depth: 103 mm

The Orbit 7190g scanner continues the proven, superior 1D laser scanning performance of Orbit series scanners – but adds an area imager for seamless scanning of digital 1D, 2D and PDF codes in a single, convenient device. To speed retail checkouts, the Orbit 7190g scanner features a unique dual-modes design that is optimized for both the cashier and the customer – enabling seamless product barcode scanning and scanning of digital codes off customer smartphones.

Breakthrough Hybrid Technology
The Orbit 7190g scanner integrates both a laser and an imager into a single presentation scanner – no need to buy a separate scanner for printed 1D and digital 1D, 2D and PDF barcodes reading.

Dual-Working Modes
With dual-working modes, the scanner is optimized for both scanning digital codes off customer smartphones and scanning merchandise codes by the cashier at the register.

Superior Scanning Performance
A 20-line omnidirectional laser pattern maintains the proven 1D scanning performance of existing Orbit scanners. With leading Honeywell imaging technology, the scanner reads smartphone coupons and ID cards with ease.

Adjustable Scan Head
The award-winning shape enables handheld scanning of large, bulky items. The adjustable scan head even allows cashiers to tilt the scanner 30° for targeted scanning of larger products.

Multi-Interface Design
Automatic interface detection enables the scanner to configure itself to the appropriate interface upon connection – eliminating the tedious task of scanning programming barcodes.

Scan & Camera

Scanner type1D/2D
Pitch reading angle0 - 60°
Yaw reading angle0 - 70°
2D (matrix & stacked) barcodes supportedData Matrix, PDF417, QR Code
Linear (1D) barcodes supportedCode 39, GS1 DataBar Omnidirectional, U.P.C.
Read rate (max)1120 reads/s
Working distance32.7 cm

Display

Built-in displayNo

Connectivity & Ports

Standard interfacesKeyboard wedge, RS-232, RS-485, USB
Cables includedUSB

Processor & Memory

Input voltage5 V

Battery & Power

Power source typeDC
Power consumption472 mA

Dimensions, Weight & Design

Product colourWhite
Weight410 g
Width108 mm
Depth103 mm
Height148 mm

Operating Conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)5 - 95%

Certifications

Harmonized System (HS) code84716070
CertificationCE, RoHS
Compliance certificatesRoHS

Other specifications

TypeFixed bar code reader
Sensor typeLaser
Light levels (direct sunlight)4842 - 100000 lx
Connectivity technologyWired
LED indicatorsStatus
