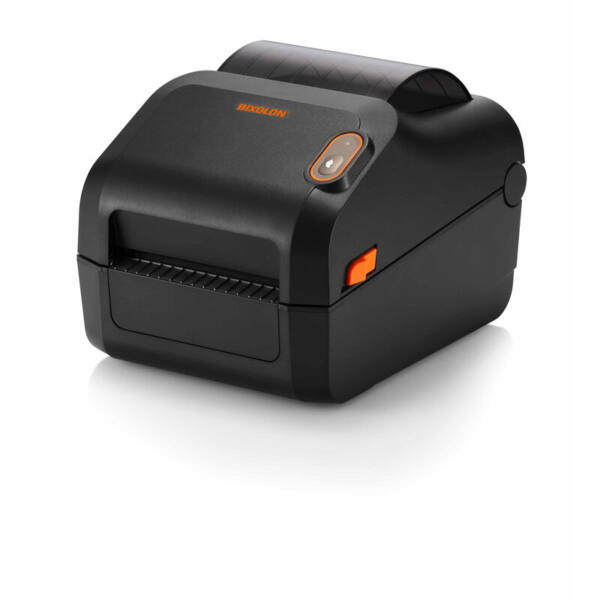

Bixolon XD3-40d, Label Printer, DT, 203dpi USB

HIGHLIGHTS

  • Direct thermal
  • Maximum printing width: 10.4 cm Print speed: 127 mm/sec
  • Built-in barcodes: 1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 39, EAN13, EAN8, GS1-128, Industrial 2/5, Interleaved 2/5, MaxiCode, MicroPDF417, QR Code, TLC39, UPC-A, UPC-E
  • Connectivity technology: Wired
  • USB port
  • 1.7 kg

Bixolon XD3-40d, Label Printer, DT, 203dpi USB

XD3-40d is a 4-inch (118mm) Direct Thermal Desktop Barcode and Label Printer

2.015,00kr. Excl. VAT

SKU: XD3-40DK Delfi nr.: 7403716
Out of stock

Description

Bixolon XD3-40. Print technology: Direct thermal, Print speed: 127 mm/sec. Connectivity technology: Wired, USB port. Product colour: Black

The XD3-40d is a 4-inch (118mm) Direct Thermal Desktop Barcode and Label Printer featuring a compact design, key industry features and competitive pricing, ideal for labelling applications within Manufacturing, Retail, Warehousing and Logistics markets. The XD3-40d standard model offers quick data processing and print speeds up to 5 ips (127mm/sec) at 203 dpi to produce high quality text, graphics and barcodes to labelling media.

Supporting a stand-alone configuration with a visual LED and a media roll diameter up to 127mm. The XD3-40d offering easy paper loading with adjustable paper guide and plus holder, alongside an optional peeler, plus an external paper supply. For added simplicity, the label printer also offers simple toolless maintenance of the roller and print head.

Available with USB interface as standard and optional USB V2.0 + Serial + Ethernet. The XD3-40d is compatible with market-leading programming languages including SLCS, BPL-Z™ and BPL-E™, while supporting Smart Switch Programming Languages to allow for seamless integration into legacy and current installations. The XD3 series is also accompanied with comprehensive SDKs for Windows and Linux, alongside compatibility with label design software including BIXOLON’s Label Artist-II™ and BarTender®. While backed by a 2 year warranty as standard.

Scan & Camera

Built-in barcodes1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 39, EAN13, EAN8, GS1-128, Industrial 2/5, Interleaved 2/5, MaxiCode, MicroPDF417, QR Code, TLC39, UPC-A, UPC-E

Print

Print technologyDirect thermal
Print speed127 mm/sec
Print typeDirect Thermal
Maximum printing width10.4 cm
Resolution203dpi
Ribbon length300 m
Page description languagesBPL
Ribbon width11 cm
Minimum print length100 cm

Media & Labels

Maximum label width11.8 cm
Media thickness0.06 - 0.2 mm
Maximum roll diameter12.7 cm

Connectivity & Ports

Connectivity technologyWired
USB portYes
Windows operating systems supportedYes
Linux operating systems supportedYes

Processor & Memory

Internal memory64 MB
Flash memory128 MB
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Dimensions, Weight & Design

Product colourBlack
Width181 mm
Depth222 mm
Height168 mm
Weight1.7 kg

Operating Conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C

Certifications

Harmonized System (HS) code84433210
