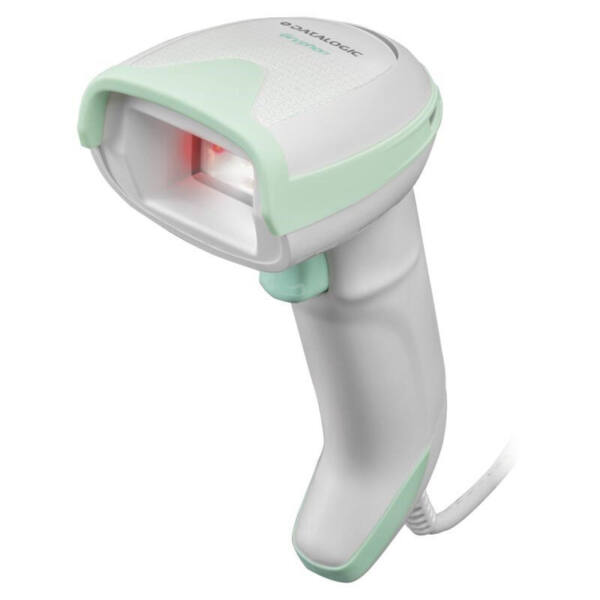

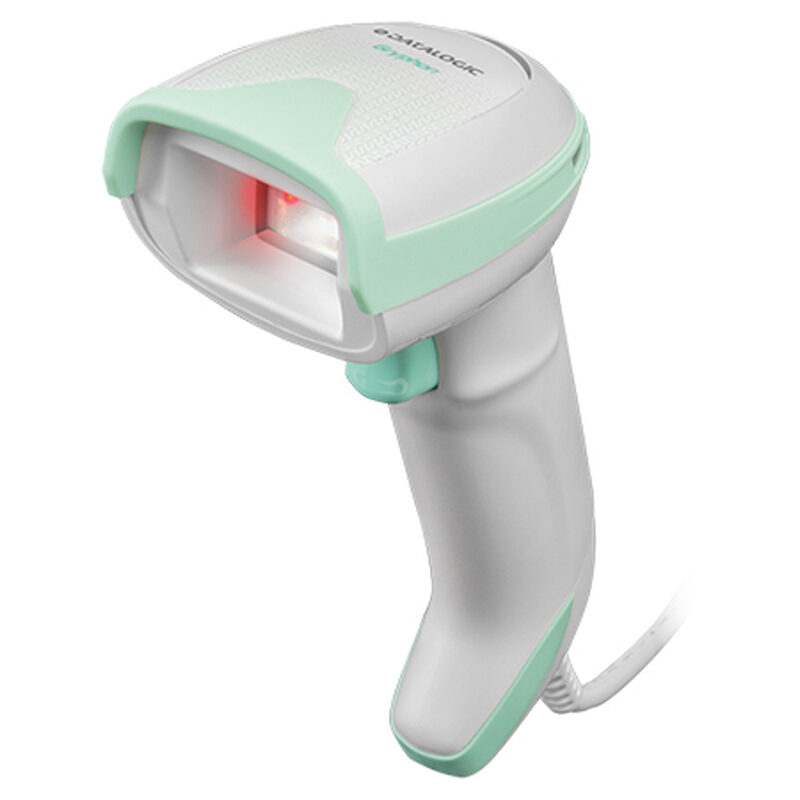

Datalogic Gryphon I GD4520, 2D, White
HIGHLIGHTS
- Handheld bar code reader White
 - Scanner type: 1D/2D
 - Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, QR Code
 - 1280 x 800 pixels
 - Tilt reading angle: 0 - 360°
 - Wired Standard interfaces: USB
 - Power source type: DC

- Description
 - Additional information
 - Documents

Description
Datalogic Gryphon I GD4520. Type: Handheld bar code reader, Scanner type: 1D/2D, 2D (matrix & stacked) barcodes supported: Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, QR Code. Connectivity technology: Wired, Standard interfaces: USB. Product colour: White, International Protection (IP) code: IP52, Protection features: Shock resistant. Power source type: DC, Input voltage: 5 V, Power consumption: 300 mA. Weight: 161 g, Width: 68 mm, Depth: 109 mm
Kit includes Scanner and USB Cable 90A052278.
The Gryphon™ 4500 2D series represents the premium range of hand held scanners from Datalogic. The GD4500 scanner is the desk (corded) version for general purpose applications.
The Gryphon I GD4500 imager stands out with an elegant and trendy new design, unchallenged ergonomics and features the most advanced Megapixel sensor with warm-white-illumination 2D technology for outstanding performance.

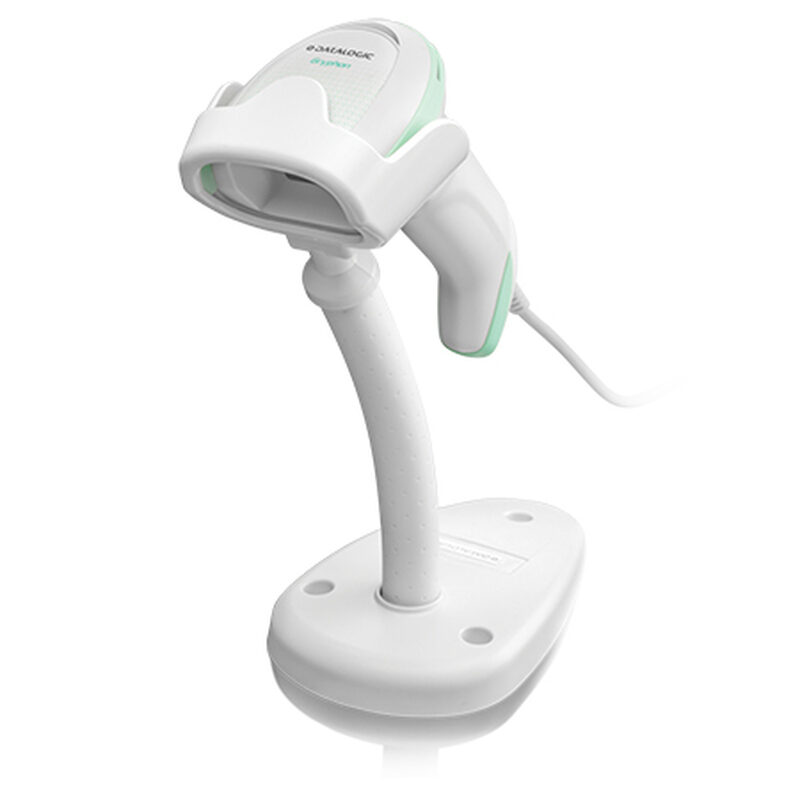

The Gryphon GD4500 imager takes advantage of Datalogic’s Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering both hand held and presentation reading options.
Datalogic’s reading technology with highly visible warm-white illumination is easier on the human eyes and reads colored labels much better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment.
The GD4500 imager is also available in a Healthcare model with disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.
Additional information
| Scanengine | |
|---|---|
| Type | Handheld bar code reader  |

| Scanner type | 1D/2D  |

| Optical sensor resolution (W x H) | 1280 x 800 pixels  |

| Connection | |
| Light levels (direct sunlight) | 0 – 100000 lx  |

| Tilt reading angle | 0 – 360°  |

| Pitch reading angle | -65 – 65°  |

| Connectivity technology | Wired  |

| Standard interfaces | USB  |

| Product colour | White  |

| Power source type | DC  |

| Input voltage | 5 V  |

| Power consumption | 300 mA  |

| Weight | 161 g  |

| Width | 68 mm  |

| Depth | 109 mm  |

| Height | 166 mm  |

| Cables included | USB  |

| Operating temperature (T-T) | 0 – 40 °C  |

| Storage temperature (T-T) | -40 – 70 °C  |

| Operating relative humidity (H-H) | 0 – 95%  |

| Harmonized System (HS) code | 84716070  |

| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, QR Code  |

| Wavelength | 650 nm  |

| International Protection (IP) code | IP52  |

| Protection features | Shock resistant  |

| Built-in display | No  |

| Certification | IEC 60825 Class 2  |

| Motion tolerance (cm/s) | 88.9  |

| Image formats supported | TIFF, BMP, JPEG  |

| Compliance certificates | RoHS  |
