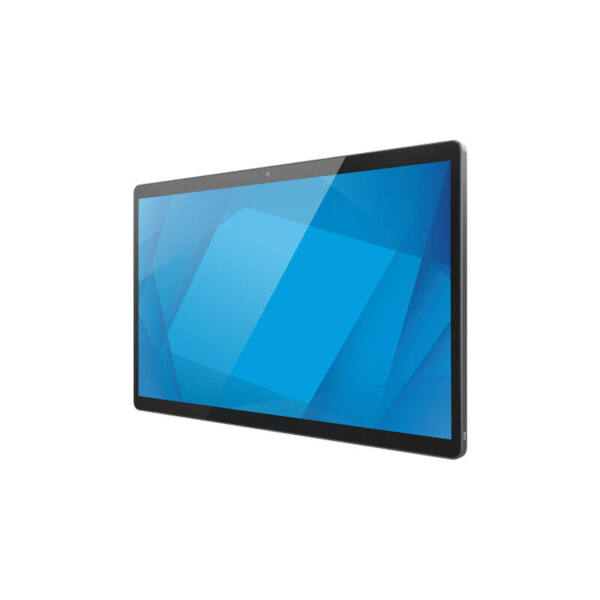

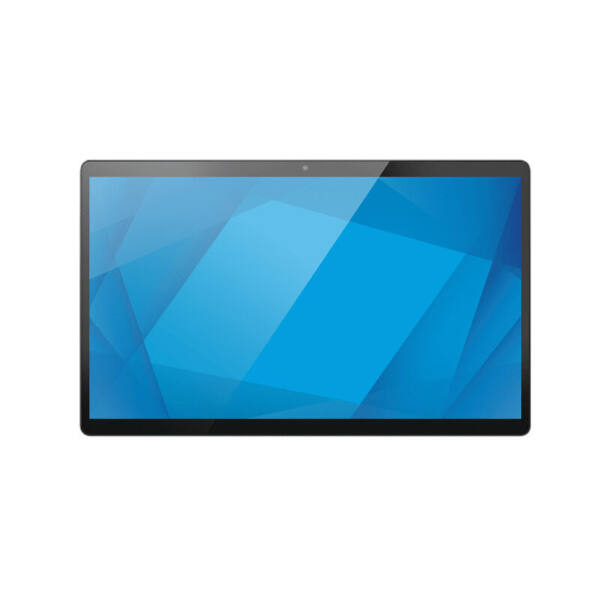

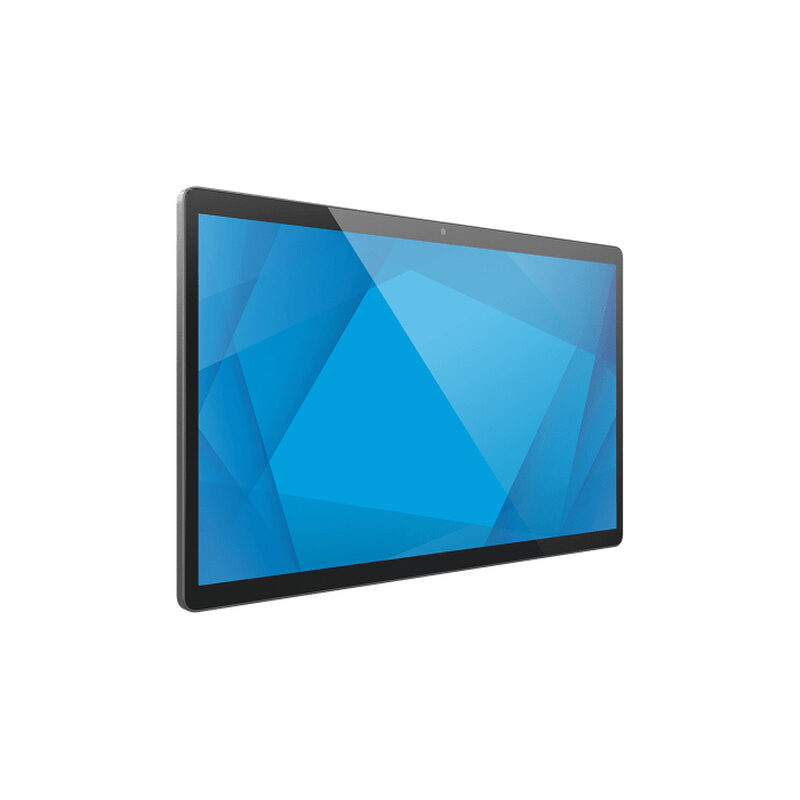

Elo I-Series 3.0 Slate, 39.6 cm (15,6”), Projected Capacitive,
HIGHLIGHTS
- 10-touch PCAP display

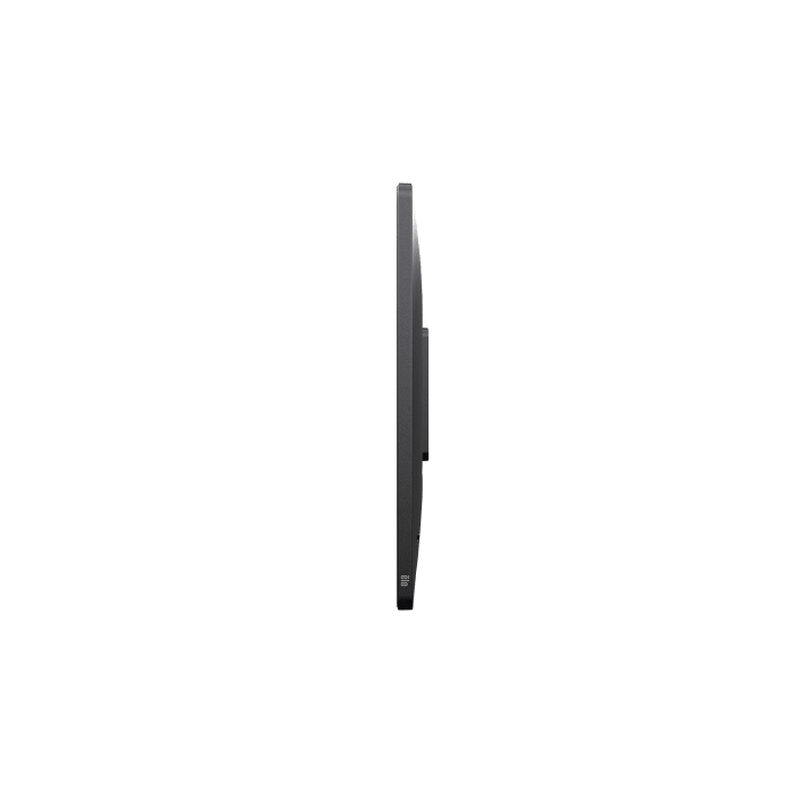

- 14.8mm thin
- Fanless & ventless
- 8MP webcam
Elo I-Series 3.0 Slate, 39.6 cm (15,6”), Projected Capacitive,
15.6″ I-Series Slate with Intel, Full HD 1920 x 1080 display, Pentium, Win 10, 8GB RAM, 128GB SSD, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.2, 8MP Camera, I/O hub, Gray
9.499,00kr. Excl. VAT
- Description
- Additional information
- Documents
Description
Elo Touch Solutions E983895. Display diagonal: 39.6 cm (15.6″), Display resolution: 1920 x 1080 pixels, Display type: TFT. Processor manufacturer: Intel. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM, Maximum internal memory: 32 GB. Total storage capacity: 128 GB, Storage media: SSD. Graphics card manufacturer: Intel, Graphics card: UHD Graphics
I-Series 3 Slate with Intel®
Brilliant, beautiful and razor thin.
Interactive signage has never looked so good.
Create your POS system.
Transform the I-Series 3 Slate it into a powerful, industrial-design POS system that scales with your business.
Reliable, security and performance.
Built with the reliability-tested performance and security of Intel 11th Generation processors, integrated Trusted Platform Modules and the Windows 10 operating system, the I-Series 3 Slate delivers the dependability businesses need.
Support for Linux.
For added flexibility, the I-Series 3 Slate offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.
Bridge the gap between Windows and Android.
Transitioning to Android in the future? Elo Bridge is the perfect solution. Simply choose the Elo Windows device that fits your needs today, and when you are ready to transition to Android, you can use Elo Bridge to migrate your fleet of devices.
Get peace of mind with EloCare.
– Advance Unit Replacement
– Extended Warranty
– Professional Services
3 Years
Media & Labels
| Storage media | SSD |
Display
| Display diagonal | 39.6 cm (15.6″) |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| Display type | TFT |
| Display brightness | 255 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Effective viewing area | 344.2 x 193.5 mm |
| Aspect ratio | 16:9 |
| Display number of colours | 16.2 million colours |

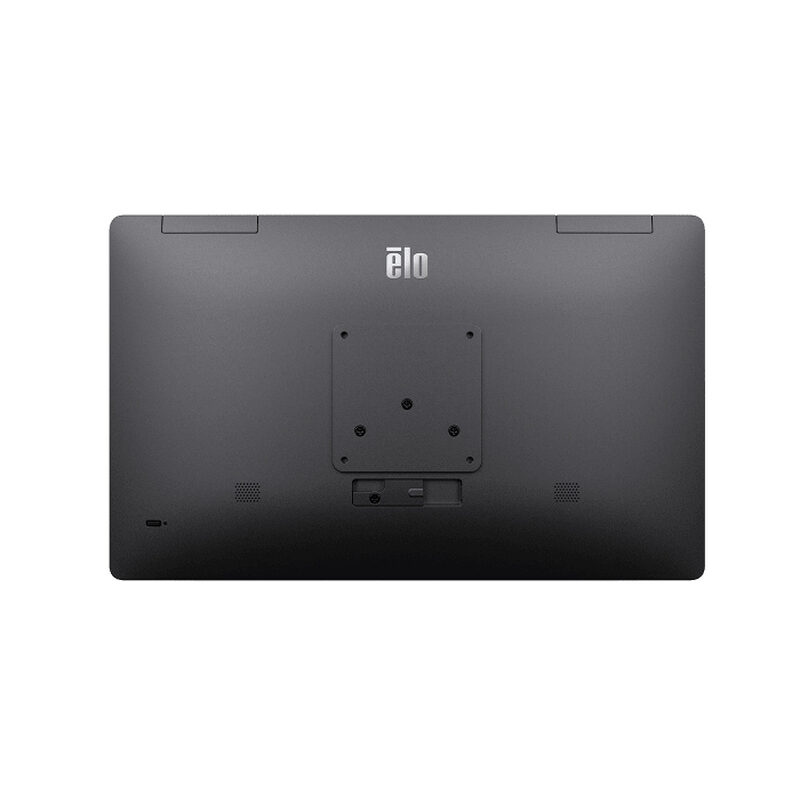

| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| Touchscreen technology | Projected capacitive system |
Connectivity & Ports
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Cables included | Power |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
Wireless & Network
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
Audio
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
Processor & Memory
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 32 GB |
| Number of memory slots | 1 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 3200 MHz |
| Total storage capacity | 128 GB |
| Graphics card manufacturer | Intel |
| Graphics card | UHD Graphics |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Processor manufacturer | Intel |
| NVMe | Yes |
Software & OS
| Operating system installed | Windows 10 |
Battery & Power
| Power supply | 65 W |
| Power consumption (typical) | 30 W |
| Power adapter included | Yes |
Dimensions, Weight & Design
| Product colour | Grey |
| Width | 362.8 mm |
| Depth | 20.2 mm |
| Height | 223.4 mm |
| Weight | 1.6 kg |
| Package width | 460 mm |
| Package depth | 178 mm |
| Package height | 321 mm |
| Package weight | 4 kg |
| Quantity per pack | 1 pc(s) |
Operating Conditions
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 0 - 95% |
Certifications
| Certification | UL/cUL, FCC, CE, CB, NOM, RCM, VCCI, Argentina S-Mark, CCC, SRRC, ANATEL, UKCA |
In the box
| Quick start guide | Yes |
Other specifications
| Response time | 25 ms |
| DC-in jack | Yes |
