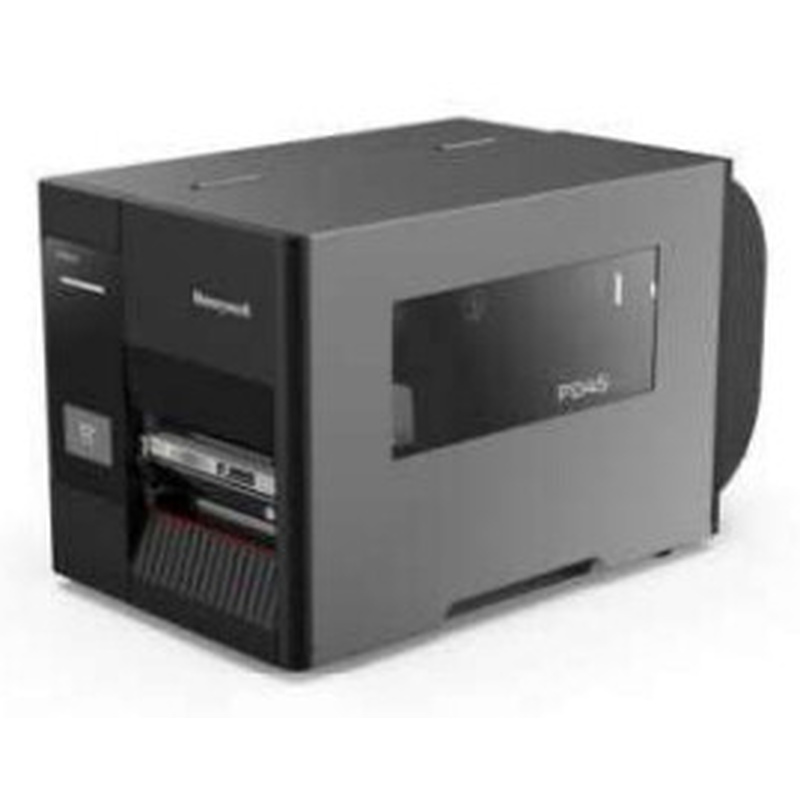

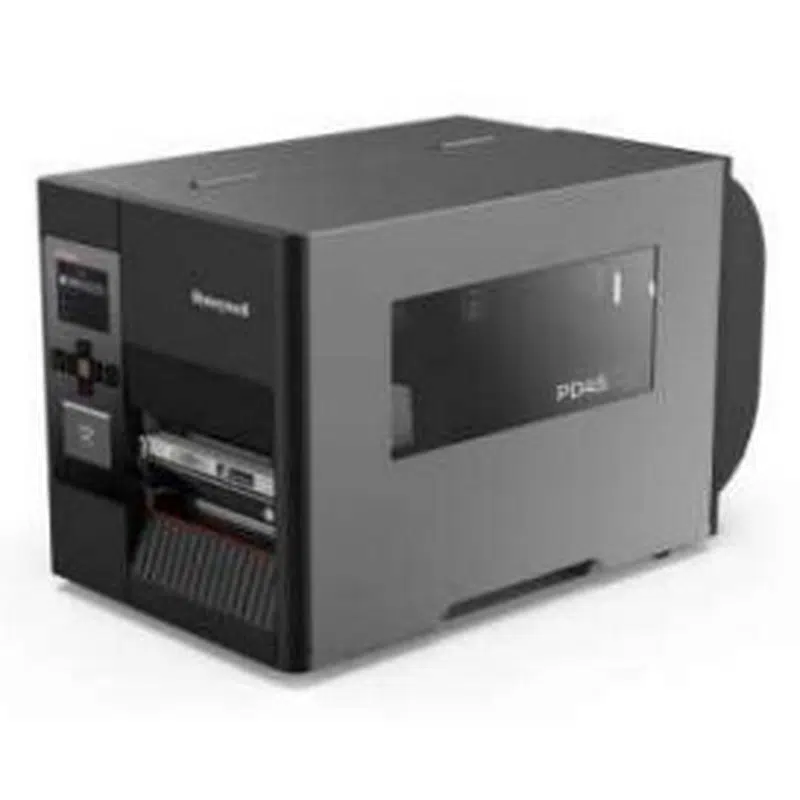

Honeywell PD45, 12 dots/mm (300 dpi), USB, USB Host, ZPLII, ZSim II, IPL, DPL
HIGHLIGHTS
- Direct thermal / Thermal transfer
- 300 x 300 DPI
- Maximum printing width: 10.8 cm Print speed: 250 mm/sec
- Built-in barcodes: 1D, 2D
- Connectivity technology: Wired
- USB port Ethernet LAN
- Display: LCD 8.89 cm (3.5")
- 9.34 kg
- Description
- Additional information
Description
Honeywell PD 45. Print technology: Direct thermal / Thermal transfer, Maximum resolution: 300 x 300 DPI, Print speed: 250 mm/sec. Connectivity technology: Wired, Ethernet LAN, USB port. Product colour: Black
Durable and Versatile Design
The PD45S/PD45 printer features a robust all-metal frame with minimal internal mechanical parts, ensuring a sleek, compact profile ideal for various applications and long-lasting performance.
Powerful Performance
Powered by an Arm Cortex-A7 800MHz processor with 128MB memory, the PD45S/PD45 supports both direct thermal and thermal transfer modes. Honeywell’s dual sensor positioning technology ensures precise label placement, with a minimum label height of 5mm and vertical accuracy of 0.5mm (PD45S) and 0.75mm (PD45).
Enhanced User Experience
The PD45S includes a 3.5″” full-touch color LCD for ease of use, while the PD45 features a 2.36″” keypad LCD and LED Feed button. Both models allow for easy printhead replacement and have a removable front sensor for cleaning.
Versatile Compatibility
The PD45S/PD45 supports multiple printer command languages (FP/DP/IPL/ZPL/DPL) for quick driver installation and simple Windows configuration. The PD45S also offers various accessories, including wireless network cards and options for peeling, rewinding, and cutting to meet diverse application needs.
Scan & Camera
| Built-in barcodes | 1D, 2D |
| Print technology | Direct thermal / Thermal transfer |
| Print speed | 250 mm/sec |
| Maximum printing width | 10.8 cm |
| Printing characters | 2D barcode, Barcode, Graphic, Text |
| Ribbon length | 450 m |
| Ribbon width | 11 cm |
| Minimum print length | 5 mm |
| Printable dot numbers | 12 dot |
Media & Labels
| Maximum label width | 10.8 cm |
| Media thickness | 0.076 - 0.255 mm |
| Maximum roll diameter | 8 cm |
| Maximum media length | 4.8 m |
| Core diameter | 7.62 cm |
Display
| Maximum resolution | 300 x 300 DPI |
| Display | LCD |
| Display diagonal | 8.89 cm (3.5") |
| Built-in display | Yes |
Connectivity & Ports
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| USB port | Yes |
| USB 2.0 ports quantity | 2 |
| RS-232 ports | 1 |
Processor & Memory
| Internal memory | 128 MB |
| Flash memory | 128 MB |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Dimensions, Weight & Design
| Product colour | Black |
| Width | 249 mm |
| Depth | 438 mm |
| Height | 270 mm |
| Weight | 9.34 kg |
| Colour | No |
Operating Conditions
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 20 - 85% |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Certifications
| Harmonized System (HS) code | 84433210 |
