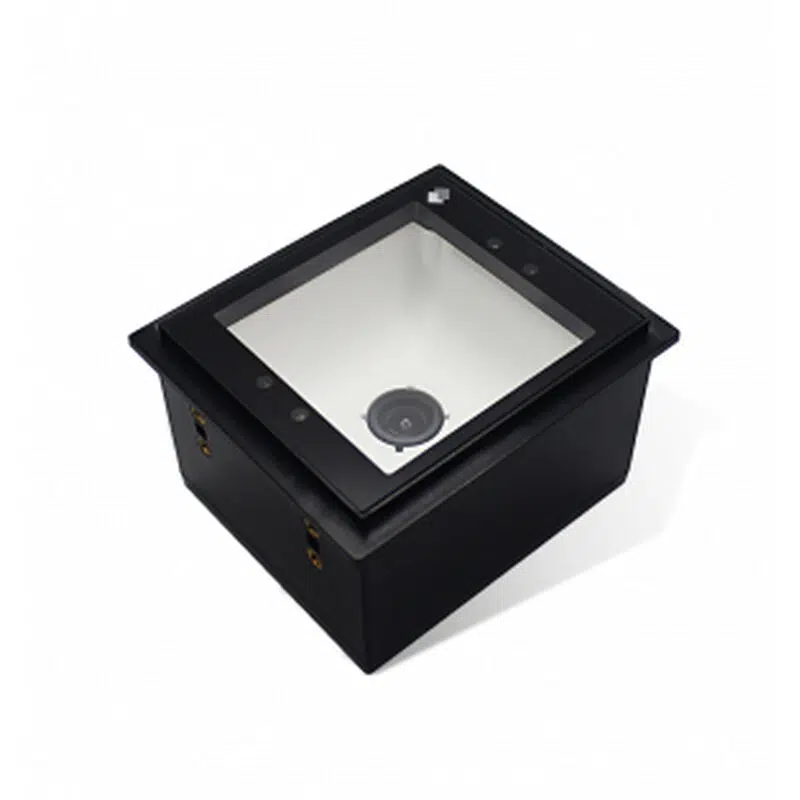

Newland FM3080 Hind, Multi Color LED index, 2D, HD, kit (USB), black

HIGHLIGHTS

  • 1D & 2D
  • Mobile Reading
  • Visual Feedback
  • CMOS
  • Dual Interface
  • IP65
  • Infrared
  • EasySet

Newland FM3080 Hind, Multi Color LED index, 2D, HD, kit (USB), black

800 x 800, CMOS, 1D/2D, USB, IP65, 78.7 x 67.7 x 47.5 mm, 132g

909,00kr. Excl. VAT

SKU: NLS-FM3080V2-20
In stock – 2-5 days delivery

Description

Newland FM30. Type: Fixed bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired, Standard interfaces: USB. Product colour: Black, International Protection (IP) code: IP65, Protection features: Electrostatic Discharge (ESD) protection. Power source type: USB, Input voltage: 5 V, Power consumption: 250 mA. Weight: 132 g, Width: 78.7 mm, Depth: 67.7 mm

Snappy on-screen barcode capture.
The FM3080 Hind is armed with Newland’s sixth-generation of UIMG® technology. This CPU-based scanner excels at reading on-screen barcodes that contain a large amount of data.

Instant visual feedback.
With up to 4 color options available, the white scanning window of the FM3080 Hind can light up each scan. It can be programmed for different barcodes, a successful read, or to match your company brand.

Small form factor.
Dimensions of 78.7 x 67.7 x 47.5mm make the FM3080 Hind the smallest of the FM30 series. As a result, it takes up minimal space in a kiosk or at the POS.

IR and light sensors.
In order to achieve higher productivity, the FM3080 Hind has a combination of an IR sensor and light sensor. This combination creates improved sensitivity in activating the scanner to scan the presented barcode.

IP65 sealing.
The FM3080 Hind possesses a high IP-rating of IP65, making it resistant to water and dust.

Anti Reflection
The updated FM3080 Hind has a coating on the underside of the glass to reduce the reflection and glare, making reading barcodes from screens, even snappier and user friendly.

2 Years

Scan & Camera

Scanner type1D/2D
Optical sensor resolution (W x H)800 x 800 pixels
Pitch reading angle-40 - 40°
Yaw reading angle0 - 360°
2D (matrix & stacked) barcodes supportedAztec Code, Data Matrix, Micro QR Code, PDF417, QR Code
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, Plessey, UPC-A, UPC-E

Connectivity & Ports

Standard interfacesUSB

Audio

BuzzerYes

Processor & Memory

Input voltage5 V

Battery & Power

Power source typeUSB
Power consumption250 mA

Dimensions, Weight & Design

Product colourBlack
Weight132 g
Width78.7 mm
Depth67.7 mm
Height47.5 mm

Operating Conditions

Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%
International Protection (IP) codeIP65

Certifications

CertificationFCC Part15 Class B, CE EMC Class B

Other specifications

TypeFixed bar code reader
Sensor typeCMOS
Connectivity technologyWired
LED indicatorsYes
Protection featuresElectrostatic Discharge (ESD) protection
