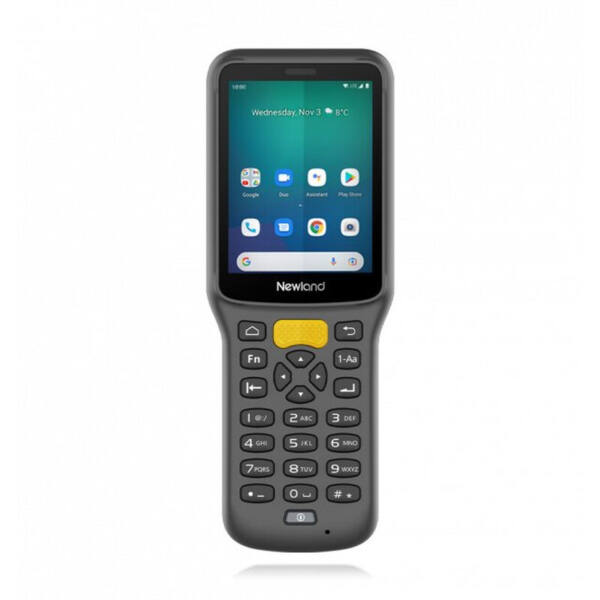

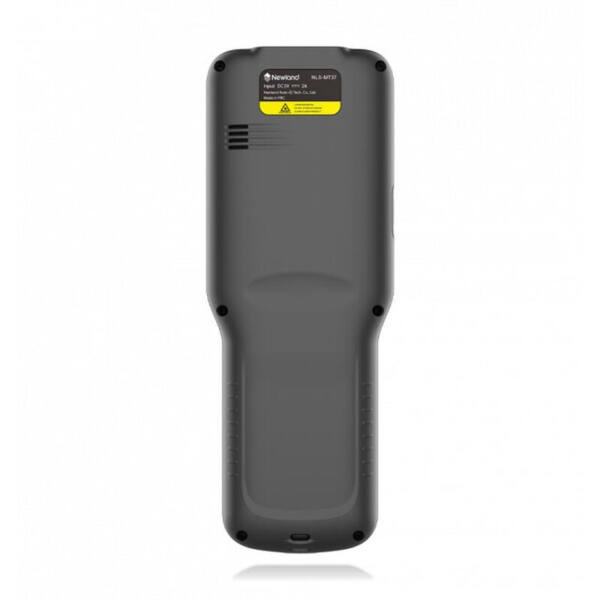

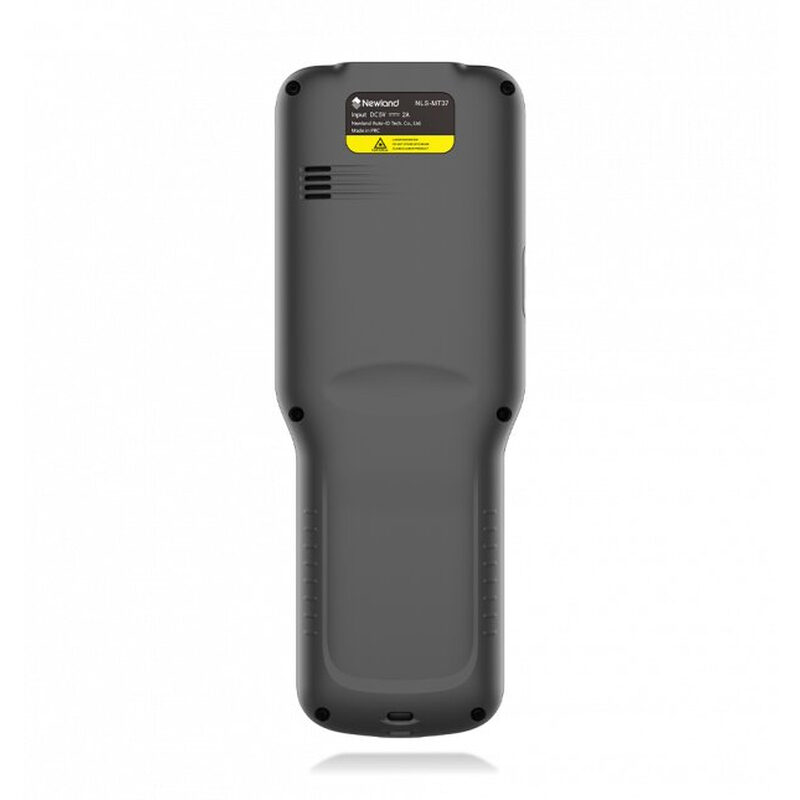

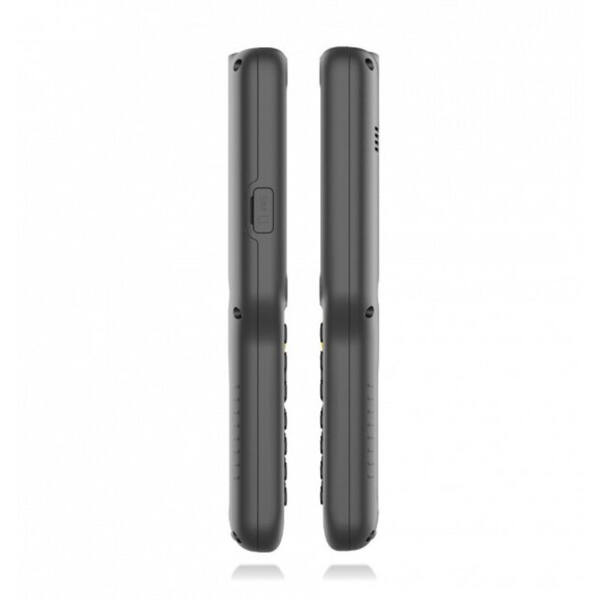

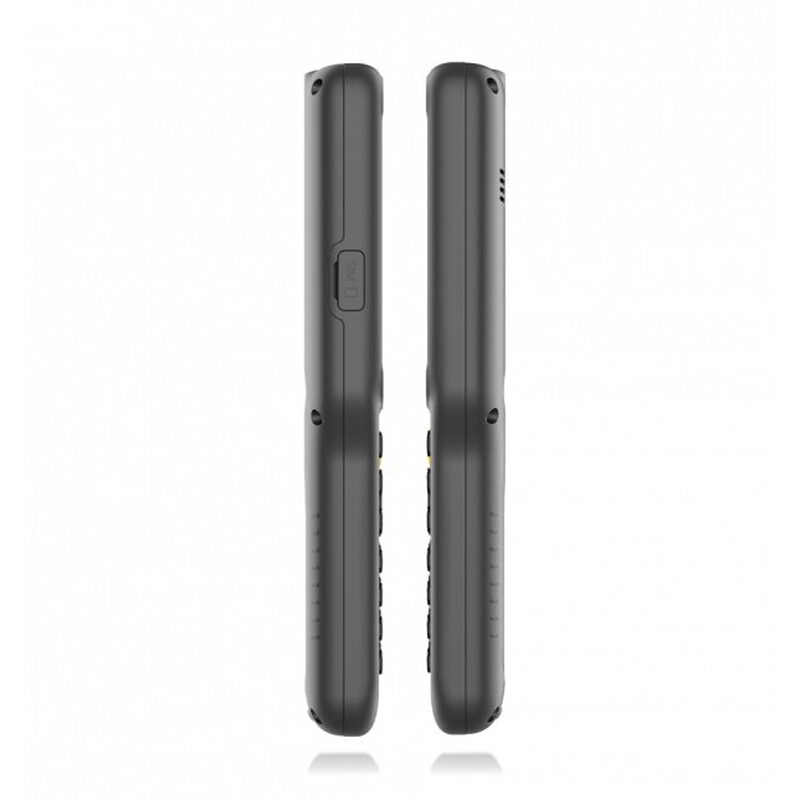

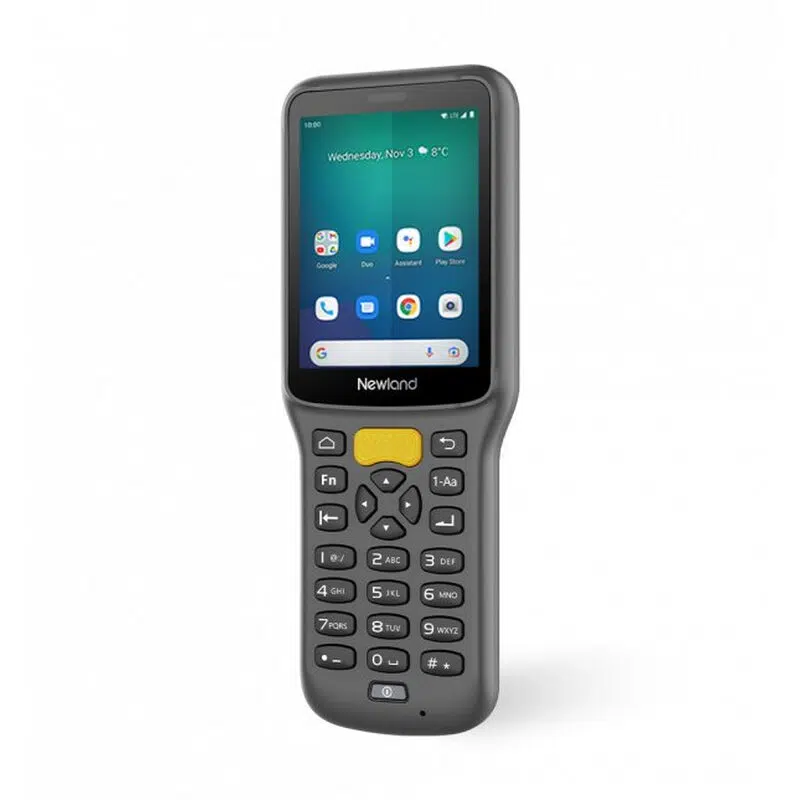

Newland MT37 Baiji Series, 2D, 7.1cm (2.8”), GPS, USB-C, BT, Wi-Fi, 4G, NFC, Android, kit, GMS
HIGHLIGHTS
- Light and Portable Data Collector
- Superior Scanning Capabilities
- User-focused Ergonomics
- Extended Battery Life
- Customized Android OS
- Excellent Setup
- DCAPP Software
Newland MT37 Baiji Series, 2D, 7.1cm (2.8”), GPS, USB-C, BT, Wi-Fi, 4G, NFC, Android, kit, GMS
2.8”, 320×240, 1GB/8GB, 1.8 GHz, 24 keys, 1D/2D CMOS, BT, GPS, NFC, 4G, WiFi, USB, Android 8.1, 3300 mAh, 158 x 59 x 18.3 mm, 155 g
1.999,00kr. Excl. VAT
- Description
- Additional information
- Documents
Description
Newland MT37 Baiji. Display diagonal: 7.11 cm (2.8″), Display resolution: 320 x 240 pixels, Touch technology: Multi-touch. Internal memory: 8 GB, Flash memory: 8 GB. Processor frequency: 1.8 GHz. Operating system installed: Android. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac). Keyboard layout: Alphanumeric, Barcode reader
Equipped with Newland’s 6th generation decoder chip, the MT37 Baiji can scan even damaged or poor quality barcodes with ease and speed.
The special pre-installed DCAPP software allows customizing the MT37 Baiji to any solution you might require.
Light and Portable Data Collector
Made for high-demand operations, the MT37 Baiji provides a lightweight & ergonomic design to reduce fatigue during extended work sessions, and a long-lasting battery to get you through the entire shift without re-charging or switching out devices.
Superior Scanning Capabilities.
MT37 Baiji’s integrated 2D scan engine, equipped with Newland’s 6th generation decoder chip, supports both 1D and 2D barcodes. The MT37 Baiji is set up to decode even damaged or poor-quality barcodes with ease and speed.
User-focused Ergonomics.
Made for high-demand operations, the MT37 Baiji renders a lightweight & ergonomic design to reduce fatigue during extended work sessions. The numeric keypad with some additional navigation buttons and a capacitive touch screen provides users with all the input choices they need.
Extended Battery Life.
The MT37 Baiji’s 3300 mAh battery lasts up to 10 hours on a single charge. This enables you to get through your entire shift without re-charging or switching out devices.
Customized Android OS.
Built on Android 8.1 Go, the MT37 Baiji offers extended data security features, including Android’s application protection and admin management tools.
Excellent Setup.
The MT37 Baiji is equipped with a Quad-Core processor, Android 8.1 Go OS, high-performance Dual-Band Wi-Fi, and Bluetooth 5.0 connection. Its rugged housing can withstand 1.2m drops to concrete.
DCAPP Software.
The MT37 Baiji comes with pre-installed and pre-licensed Newland DCAPP by Sysdev. Newland’s DCAPP is a ready-to-use app that allows you to collect, transfer, and export data in a very simple way. With DCAPP, you can quickly start to collect data with 5 included pre-established templates of ready-to-be-used apps. It can then be synchronized with your PC or server to effortlessly export the gathered data.
2 years
Scan & Camera
| Barcode reader | Yes |
| Scanner type | 1D/2D |
| RFID reader | Yes |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, MSI, Matrix 2 of 5, Plessey, UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, Dot Code A, MaxiCode, Micro QR Code, PDF417, QR Code |
Display
| Display diagonal | 7.11 cm (2.8") |
| Display resolution | 320 x 240 pixels |
| Touchscreen | Yes |
| Touch technology | Multi-touch |
Connectivity & Ports
| Data network | 2G, 3G, 4G, LTE, WCDMA |
| Cables included | USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
Wireless & Network
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth version | 5.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Near Field Communication (NFC) | Yes |
| GPS (satellite) | Yes |
Audio
| Speakers | Yes |
Processor & Memory
| Internal memory | 8 GB |
| Flash memory | 8 GB |
| Processor frequency | 1.8 GHz |
| Number of cores | 4 |
| Total storage capacity | 8 GB |
| RAM capacity | 1 GB |
Software & OS
| Operating system installed | Android |
| Operating system version | 8.1 |
Battery & Power
| Battery capacity | 3300 mAh |
| Battery voltage | 3.8 V |
Dimensions, Weight & Design
| Product colour | Black |
| Weight | 155 g |
| Width | 158 mm |
| Depth | 59 mm |
| Height | 18.3 mm |
Operating Conditions
| Drop proof | Yes |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -30 - 60 °C |
Other specifications
| Keyboard layout | Alphanumeric |
| LED indicators | Yes |
| Phone function | Yes |
| Vibrating alert | Yes |
