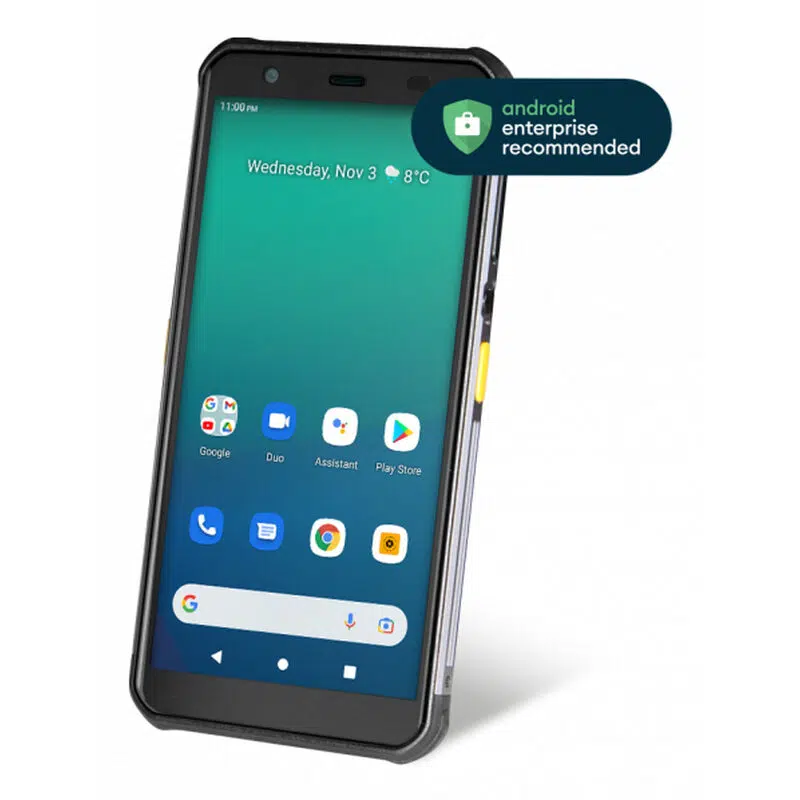

Newland NFT10 Pilot Pro, 2D, 14.5cm (5.7”), GPS, USB-C, BT, Wi-Fi, 4G, NFC, Android, kit, GMS, black
HIGHLIGHTS
- 14.5 cm (5.7") 1440 x 720 pixels Touchscreen
- 4 GB
- Compatible memory cards: MicroSD (TransFlash)
- 2 GHz
- GPS (satellite) Android 11
- Bluetooth Bluetooth Low Energy (BLE) Data network: 2G, 3G, 4G Near Field Communication (NFC) Wi-Fi
- Built-in camera 13 MP
- Auto focus Built-in microphone RFID reader
- 4800 mAh
- Black
- Description
- Additional information
- Documents
Description
Newland NFT10 Pilot Pro. Display diagonal: 14.5 cm (5.7″), Display resolution: 1440 x 720 pixels. Internal memory: 4 GB, Flash memory: 64 GB, Compatible memory cards: MicroSD (TransFlash). Processor frequency: 2 GHz. Operating system installed: Android. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac). Barcode reader
NFT10 Pilot Pro
Mobile Computers
Designed to bridge the gap between a rugged PDA and a sleek & stylish smartphone, the NFT10 Pilot Pro offers businesses a high quality Android mobile computer. At 5.7”, it’s one of the largest durable touchscreens on the market. The NFT10 Pilot Pro is also available in a white healthcare version.Work smarter, wherever you are. You’re the pilot.
Work smarter, wherever you are. You’re the pilot.
The NFT10 Pilot Pro uses an ultra-slim megapixel barcode scanner with left and right scan solutions for comfortable data capture, all housed in a design that matches the look and feel of high-end modern consumer phones. With Newland’s standard warranty, extended warranty options and Ndevor MDM solutions, the NFT10 Pilot Pro has all the style, functionality and support needed for any enterprise.
Comprehensive data capture.
The NFT10 Pilot Pro can be integrated with a variety of data capture options including Mega Pixel 1D/2D barcode scanning, NFC RFID reading, fingerprint recognition and GPS/Beidou/GLONASS.
Versatile connectivity.
With dual band 802.11 a/b/g/n/ac WiFi and 4G/3G/2G support, the NFT10 Pilot Pro keeps you connected. Further optimizing this, the dual SIM option allows you to use the most suitable provider no matter where you are. It’s a match for any leading consumer-brand mobile phone experience.
Powerful performance.
The Android 11 operating system helps you get more from your mobile computer. It’s intuitive, fast and tailored to you and your choice of software, applications and operational use. A 2.0GHz octa-core processor keeps you running even smoother.
Long Lasting Battery.
The NFT10 Pilot Pro is equipped with a 4800mAh battery. Supplemented by a low-power design, the usage time is significant. The device is so power-efficient that you won’t need to change the battery to operate well beyond a standard shift. To top it off, it supports fast-charging via its Type-C port.
Android Enterprise Recommended.
The Pilot Pro is the first Newland unit to be Android Enterprise recommended. Additionally, GMS services are included.
Rugged durability.
The NFT10 Pilot Pro’s rugged housing is sealed to IP67 standards for protection against dust and water. It was built to reliably withstand 1.5m drops to concrete.
Biometric Security.
The NFT10 Pilot Pro has fingerprint biometrics for extra security and a faster login. Positioned on the back of the device, the device can be comfortably unlocked with one hand without having the press the front of the screen.
2 years
Scan & Camera
| Built-in camera | Yes |
| Rear camera resolution (numeric) | 13 MP |
| Barcode reader | Yes |
| Scanner type | 1D/2D |
| Auto focus | Yes |
| Front camera | Yes |
| Front camera resolution (numeric) | 2 MP |
| RFID reader | Yes |
| 2D (matrix & stacked) barcodes supported | Code 39, Data Matrix, PDF417, QR Code |
Media & Labels
| Maximum memory card size | 128 GB |
| SIM card type | NanoSIM |
Display
| Display diagonal | 14.5 cm (5.7") |
| Display resolution | 1440 x 720 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
Connectivity & Ports
| Data network | 2G, 3G, 4G |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Headphone connectivity | Bluetooth / USB-C |
Wireless & Network
| Compatible memory cards | MicroSD (TransFlash) |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth version | 5.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Near Field Communication (NFC) | Yes |
| GPS (satellite) | Yes |
| GLONASS | Yes |
| Assisted GPS (A-GPS) | Yes |
Audio
| Built-in microphone | Yes |
| Speakers | Yes |
Processor & Memory
| Internal memory | 4 GB |
| Flash memory | 64 GB |
| Processor frequency | 2 GHz |
| Number of cores | 8 |
| Built-in flash | Yes |
| AC adapter input voltage | 100 - 240 V |
Software & OS
| Operating system installed | Android |
| Operating system version | 11 |
| Bundled software | Ndevor, SOTI, Airwatch |
Battery & Power
| Battery capacity | 4800 mAh |
| Battery voltage | 3.8 V |
| AC adapter output voltage | 5 V |
| AC adapter output current | 2 A |
| AC adapter frequency | 50/60 Hz |
Dimensions, Weight & Design
| Product colour | Black |
| Weight | 231 g |
| Width | 76.3 mm |
| Depth | 157 mm |
| Height | 12.6 mm |
Operating Conditions
| International Protection (IP) code | IP67 |
| Drop proof | Yes |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -20 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Certifications
| Certification | CE RED, FCCID, RoHS, IEC6247 |
Other specifications
| LED indicators | Yes |
| Vibrating alert | Yes |
| Electrostatic Discharge (ESD) protection (air) | 15 kV |
| Electrostatic Discharge (ESD) protection (contact) | 8 kV |
| Keypad number of keys | 10 |
| Sensor type | CMOS |
