Newland WD3 Series, BT, 2D, USB-C, BT, kit

HIGHLIGHTS

  • Outstanding performance
  • Batch collection
  • Precision scanning
  • Compact and light-weight design
  • High protection and industrial structure
  • Nwear DNA

Newland WD3 Series, BT, 2D, USB-C, BT, kit

1D/2D, 1280×800 CMOS, LED, Bluetooth, 110.8 x 62.3 x 10.6 mm, 53 g

1.116,00kr. Excl. VAT

SKU: WD3-BS30
Out of stock

Description

Newland WD3. Type: Wearable bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired & Wireless, Standard interfaces: Bluetooth, USB, Wireless range: 30 m. Product colour: Black, International Protection (IP) code: IP65, Protection features: Drop proof, Electrostatic Discharge (ESD) protection. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery type: Built-in battery. Weight: 53 g, Width: 110.8 mm, Depth: 62.3 mm

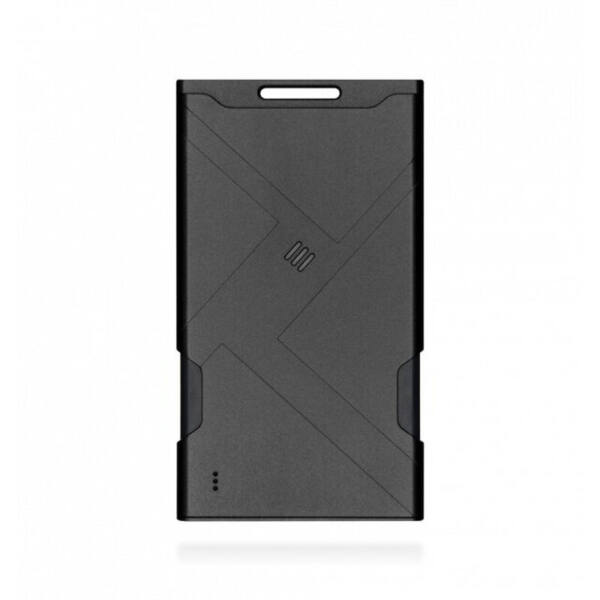

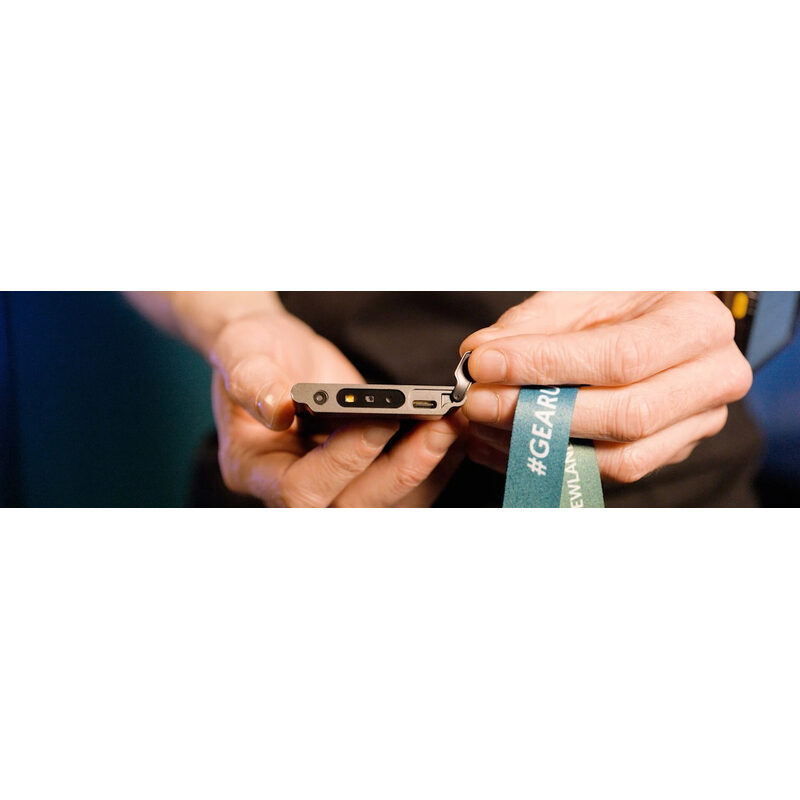

The WD3 is a feather-light badge scanner that packs high-performance in a compact yet sturdy design. You can use the scanner as a stand-alone device or wear it on a lanyard as a badge.

Gearup with the WD3
The lightweight WD3 Badge Scanner ensures reduced weariness and uninterrupted workflow to make your everyday tasks easier to perform.

Outstanding performance
Equipped with Newland’s latest megapixel 2D technology, the WD3 can effortlessly capture high-density, high-volume and distorted barcodes printed on paper or displayed on the screen.

Batch collection
The WD3 can be set to collect barcodes and store them in the memory to be uploaded to a host via a Bluetooth or cable connection. So, if you’re delivering bulk items to a single delivery point or taking the time to create a little inventory, the WD3 can work without the need for live host interaction.

Precision scanning
Acuscan can be set on the WD3, so the red laser cross aimer only decodes the exact barcode you want it to. Even on a cluttered picklist or when many smaller items are stored close to each other, the user can be sure their picking out the correct item all the time.

Compact and light-weight design
The WD3 is extremely thin and lightweight. So not only does it feel comfortable to hold, but if it is attached to the lanyard or retractable belt clip supplied, the weight and bulk are not noticeable.

High protection and industrial structure
The WD3 is built into an IP65-sealed and drop resistant (1.2m) housing with no moving parts that fortify itself inside and out. It can be used in all weather and cope with bumps, knocks and drops.

Nwear DNA
The WD3, as part of the Nwear family of devices, can easily connect to the Newland family of Android devices via the easy pairing application. Third-party devices running Android can also be connected easily with the scan of a QR code via the generic EasyConnect APK.

2 years

Scan & Camera

Scanner type1D/2D
Optical sensor resolution (W x H)1280 x 800 pixels
Tilt reading angle-55 - 55°
Pitch reading angle-55 - 55°
Yaw reading angle0 - 360°
2D (matrix & stacked) barcodes supportedAztec Code, Data Matrix, Grid Matrix Code, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, GS1-128 (UCC/EAN-128), ISBN, ISSN, Interleaved 2 of 5, MSI, Plessey, UPC-A, UPC-E

Print

Print contrast25%

Connectivity & Ports

Standard interfacesBluetooth, USB
Cables includedUSB Type-C

Wireless & Network

Wireless range30 m
Bluetooth Low Energy (BLE)Yes

Audio

BuzzerYes

Processor & Memory

Input voltage5 V

Battery & Power

Power source typeBattery
Battery technologyLithium-Ion (Li-Ion)
Battery capacity300 mAh
Charging time2 h
Battery typeBuilt-in battery
Battery life8 h
Battery voltage5 V

Dimensions, Weight & Design

Product colourBlack
Weight53 g
Width110.8 mm
Depth62.3 mm
Height10.6 mm

Operating Conditions

Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%
International Protection (IP) codeIP65

Certifications

CertificationCE RED, FCC IF, SRRC, IEC 62471
Compliance certificatesRoHS

Other specifications

TypeWearable bar code reader
Sensor typeCMOS
Connectivity technologyWired & Wireless
LED indicatorsYes
Protection featuresDrop proof, Electrostatic Discharge (ESD) protection
