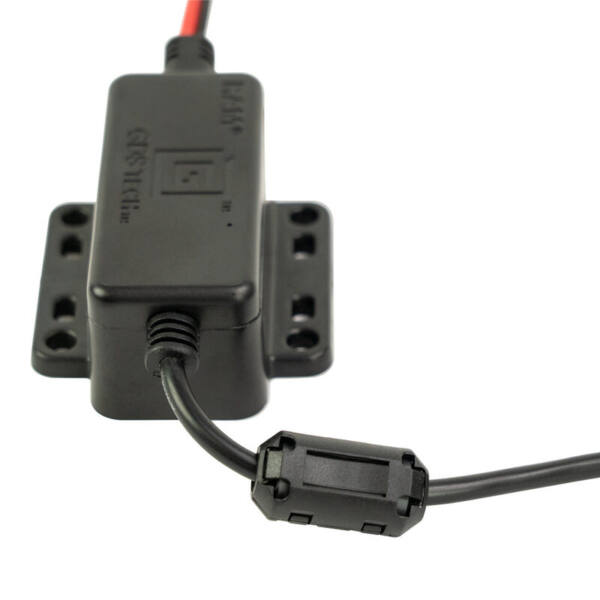

RAM Mounts GDS® Modular 10-30V Hardwire Charger with Male USB Type-C Connector
RAM Mounts GDS® Modular 10-30V Hardwire Charger with Male USB Type-C Connector
5.42-9V, USB-C, 1m
506,00kr.
- Description
- Additional information
Description
RAM Mounts RAM-GDS-CHARGE-V7CU. Charger type: Auto, Power source type: DC. Input voltage: 10 – 30 V, Maximum output voltage: 9 V. Power protection features: Over voltage, Reverse polarity, Short circuit. Cable length: 1 m, Product colour: Black, Green, Red
Overview
The GDS Modular Hardwire Charger is the ideal solution for providing power to any USB Type-C GDS vehicle solution. By connecting directly to the power source of your vehicle, the GDS Charger delivers up to 9V of USB Type-C power to your device. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This charger does not support Power Delivery. Always Protected. Always Connected.
3 years
Additional information
| Charger type | Auto |
|---|---|
| Power source type | DC |
| Product colour | Black, Green, Red |
| Cable length | 1 m |
| Input voltage | 10 – 30 V |
| Number of simultaneously connected devices (max) | 1 |
| Cables included | USB Type-C |
| Weight | 213 g |
| Certification | SAE J-1113-5, CE , FCC, UL 62368-1, E-Mark |
| Operating temperature (T-T) | -10 – 70 °C |
| Maximum output voltage | 9 V |
| Compliance certificates | RCM, RoHS, WEEE |
| Power protection features | Over voltage, Reverse polarity, Short circuit |
| Minimum output voltage | 5.42 V |
| Output current | 2500 mA |
| Storage temperature (T-T) | -40 – 70 °C |
| Sustainability compliance | Yes |
