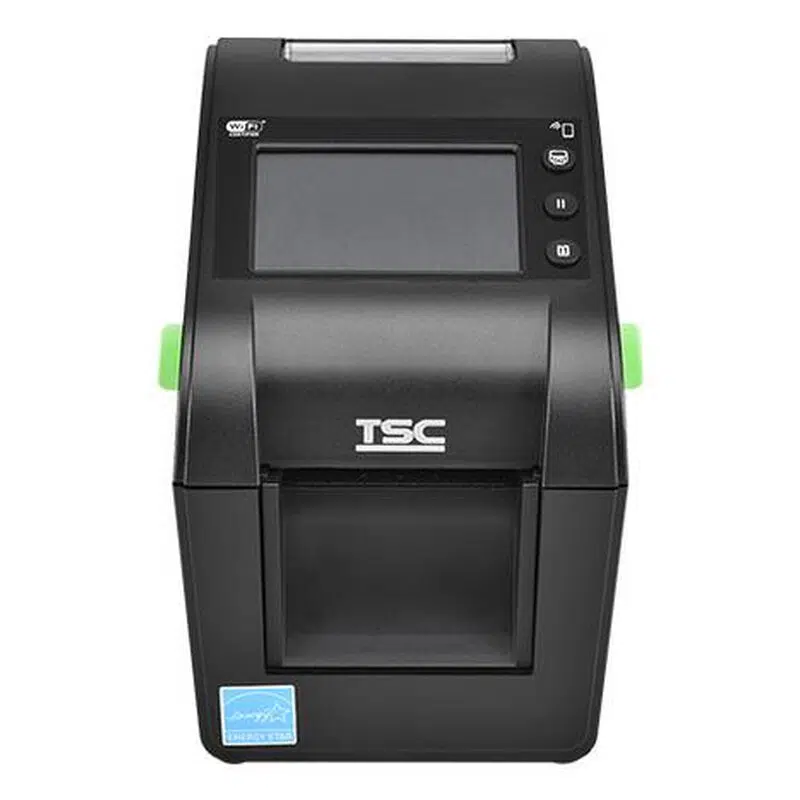

TSC DH220T, Buzzer, 8 dots/mm (203 dpi), disp., RTC, USB, USB Host, RS232, Ethernet, kit (USB)
HIGHLIGHTS
- Direct thermal
- 203 x 203 DPI
- Maximum printing width: 5.4 cm Print speed: 203 mm/sec
- Built-in barcodes: 1D, 2D, AZTECCODE, CODABAR (NW-7), China post, Codablock F, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Code-128 Codabar Library, Code128UCC, Datamatrix, Deutsche Post Identcode, Deutsche Post Leitcode, EAN128, EAN13, EAN14, EAN8, GS1 DataBar, ITF-14, Interleaved 2/5, LOGMARS, MSI, MaxiCode, MicroPDF417, PDF417, Planet, POSTNET, Plessey, QR Code, TELEPEN, TELEPENN, TLC39, UPC-A, UPC-E
- Connectivity technology: Wired & Wireless
- USB port Ethernet LAN Wi-Fi Bluetooth 5.0
- Display: LCD 8.89 cm (3.5") 480 x 320 pixels Colour display
- 1.6 kg
TSC DH220T, Buzzer, 8 dots/mm (203 dpi), disp., RTC, USB, USB Host, RS232, Ethernet, kit (USB)
Direct Thermal Label Printer, 203 dpi, Color Touch LCD, DRAM 128MB/Flash 128MB, USB + RS-232 + Ethernet + USB Host + RTC + Buzzer
2.033,00kr. Excl. VAT
- Description
- Additional information
- Documents
Description
TSC DH220T. Print technology: Direct thermal, Maximum resolution: 203 x 203 DPI, Print speed: 203 mm/sec. Connectivity technology: Wired & Wireless, Ethernet LAN, Wi-Fi, Bluetooth, Bluetooth version: 5.0, USB port. Product colour: Black
Seamless Integration, Effortless Deployment
– Out-of-the-box auto-switch print language emulation
– User-friendly and convenient label printing with TSC Standalone Creator and TSCPRTGo
Reducing Downtime, Boosting Uptime
– Real-time remote printer monitoring and management with the Internal Embedded Webpage, virtual control panel, TSC Console, TSC Console Web, and SOTI Connect
– Downtime prevention with self-diagnostic TPH Care, TPH (thermal printhead) maintenance
– User-friendly design: self-diagnostics, toolless TPH and platen roller replacement for easy maintenance, and shortcut buttons for enhanced efficiency
– Supports network security configurations: HTTPS, SNMPv3, 802.1X, and TCP/IP Port 9100 filter
Versatile, Future-Proof Print Quality
– 15mm to 120mm wide media width for diverse media types, optional narrow media adaptors support the narrow label width to 10mm
– High-precision print quality with innovative label stabilizing media damper and adjustments in vertical DPI, heater line, and TPH pressure
– Supports UTF-8 TTF (TrueType Font) for different language label content printing
– Addable future-proof upgrades: Wi-Fi, Bluetooth, cutter module, peeler module, care label cutter kit, linerless tear-off kit, and linerless cutter kit
Environmentally Sustainable Printer
– 100% recyclable packaging with FSC-compliant cartons
– 100% recyclable plastic printer casing made with 30% recycled plastic
– 90%+ of printer components are recyclable
Healthcare Tailored Design
– Perfectly suited for healthcare environments with a crisp white and bright full-color scheme
– Vastly reduces the risk of contamination with an antimicrobial, easy-to-disinfect casing for effortless cleaning
– IEC 60601-1 Medical-Grade Compliant Power Supply, ensuring safe and reliable use in healthcare facilities
Scan & Camera
| Built-in barcodes | 1D, 2D, AZTECCODE, CODABAR (NW-7), China post, Codablock F, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Code-128 Codabar Library, Code128UCC, Datamatrix, Deutsche Post Identcode, Deutsche Po |
| Print technology | Direct thermal |
| Print speed | 203 mm/sec |
| Maximum printing width | 5.4 cm |
| Page description languages | DPL, EPL, TSPL-EZ, ZPL, ZPL II |
| Maximum print height | 2.54 cm |
| Printable dot numbers | 8 dot |
| Power consumption (printing) | 60 W |
Media & Labels
| Maximum label width | 2.54 cm |
| Media thickness | 0.06 - 0.19 mm |
| Maximum roll diameter | 3.81 cm |
| Maximum media length | 6 cm |
Display
| Maximum resolution | 203 x 203 DPI |
| Display | LCD |
| Display diagonal | 8.89 cm (3.5") |
| Colour display | Yes |
| Display resolution | 480 x 320 pixels |
| Built-in display | Yes |
Connectivity & Ports
| Connectivity technology | Wired & Wireless |
| Ethernet LAN | Yes |
| USB port | Yes |
| RS-232 ports | 1 |
| Cables included | AC, USB |
Wireless & Network
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Processor & Memory
| Internal memory | 128 MB |
| Flash memory | 128 MB |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Built-in processor | Yes |
Battery & Power
| AC adapter output voltage | 24 V |
| AC adapter output current | 2.5 A |
Dimensions, Weight & Design
| Product colour | Black |
| Width | 138 mm |
| Depth | 210 mm |
| Height | 172 mm |
| Weight | 1.6 kg |
Operating Conditions
| Operating relative humidity (H-H) | 25 - 85% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Certifications
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | BSMI, CB, CCC, CE, China RoHS, EAC, Federal Communications Commission (FCC), Industry Canada (IC), Norma Oficial Mexicana (NOM), RCM, REACH, RoHS, UKCA, WEEE, cTUVus |
Other specifications
| Control type | Buttons, Touch |
| Open cover detection | Yes |
| Warranty period | 2 year(s) |
