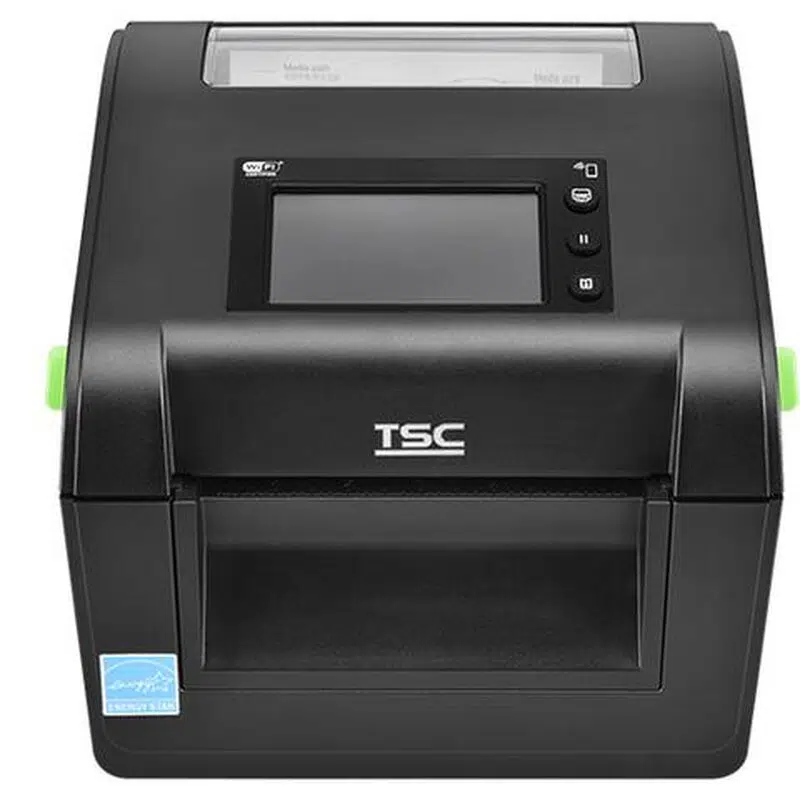

TSC DH240T, 8 dots/mm (203 dpi), disp., RTC, USB, USB Host, RS232, Ethernet, kit (USB)
HIGHLIGHTS
- Direct thermal
- 203 x 203 DPI
- Maximum printing width: 10.8 cm Print speed: 203 mm/sec
- Built-in barcodes: 1D, 2D, AZTECCODE, CODABAR (NW-7), China post, Codablock F, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Code-128 Codabar Library, Code128UCC, Datamatrix, Deutsche Post Identcode, Deutsche Post Leitcode, EAN128, EAN13, EAN14, EAN8, GS1 DataBar, ITF-14, Interleaved 2/5, LOGMARS, MSI, MaxiCode, MicroPDF417, PDF417, Planet, POSTNET, Plessey, QR Code, TELEPEN, TELEPENN, TLC39, UPC-A
- Connectivity technology: Wired & Wireless
- USB port Ethernet LAN Wi-Fi Bluetooth 5.0
- Display: LCD 10.2 cm (4") 480 x 320 pixels Colour display
- 2.1 kg
- Description
- Additional information
- Documents
Description
TSC DH240T. Print technology: Direct thermal, Maximum resolution: 203 x 203 DPI, Print speed: 203 mm/sec. Connectivity technology: Wired & Wireless, Ethernet LAN, Wi-Fi, Bluetooth, Bluetooth version: 5.0, USB port. Product colour: Black
The 4-inch DH Series Desktop Barcode Printers are versatile and flexible for diverse printing requirements. This series’ versatility enables printing a wide range of difficult labels, including thick, tiny, and long labels and certain types of vertical market labels.
Our printer language emulation makes the DH Series plug-and-play. Its firmware automatically identifies major printer languages and begins printing immediately without changing label templates. The DH Series minimises downtime during daily operations through comprehensive printer management tools (Internal Embedded Webpage, virtual control panel, TSC Console, and SOTI Connect), printer shutdown prevention, and supports network security configurations to manage printers efficiently.
The DH Series scales up applications with a wide media width, high-precision printing, and several addable future-proof options. This empowers businesses to adapt to changing requirements for present and future operations. The eco-friendly printer features 100% recyclable packaging and plastic printer casing. Over 90% of printer components are recyclable at the printer’s end-of-life, reducing environmental impact.
Scan & Camera
| Built-in barcodes | 1D, 2D, AZTECCODE, CODABAR (NW-7), China post, Codablock F, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Code-128 Codabar Library, Code128UCC, Datamatrix, Deutsche Post Identcode, Deutsche Po |
| Print technology | Direct thermal |
| Print speed | 203 mm/sec |
| Maximum printing width | 10.8 cm |
| Page description languages | DPL, EPL, TSPL-EZ, ZPL, ZPL II |
| Printable dot numbers | 8 dot |
| Power consumption (printing) | 90 W |
Media & Labels
| Maximum label length | 25.4 m |
| Media thickness | 0.06 - 0.19 mm |
| Maximum roll diameter | 3.81 cm |
| Maximum media length | 12 cm |
Display
| Maximum resolution | 203 x 203 DPI |
| Display | LCD |
| Display diagonal | 10.2 cm (4") |
| Colour display | Yes |
| Display resolution | 480 x 320 pixels |
| Built-in display | Yes |
Connectivity & Ports
| Connectivity technology | Wired & Wireless |
| Ethernet LAN | Yes |
| USB port | Yes |
| RS-232 ports | 1 |
| Cables included | AC, USB |
Wireless & Network
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Processor & Memory
| Internal memory | 128 MB |
| Flash memory | 128 MB |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Built-in processor | Yes |
Battery & Power
| AC adapter output voltage | 24 V |
| AC adapter output current | 3.75 A |
Dimensions, Weight & Design
| Product colour | Black |
| Width | 208 mm |
| Depth | 235 mm |
| Height | 170 mm |
| Weight | 2.1 kg |
Operating Conditions
| Operating relative humidity (H-H) | 25 - 85% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Certifications
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | BIS, CB, CCC, CE, China RoHS, EAC, Federal Communications Commission (FCC), Industry Canada (IC), KC, Norma Oficial Mexicana (NOM), RCM, REACH, RoHS, UKCA, WEEE, cTUVus |
Other specifications
| Control type | Buttons, Touch |
| Open cover detection | Yes |
| Warranty period | 3 year(s) |
