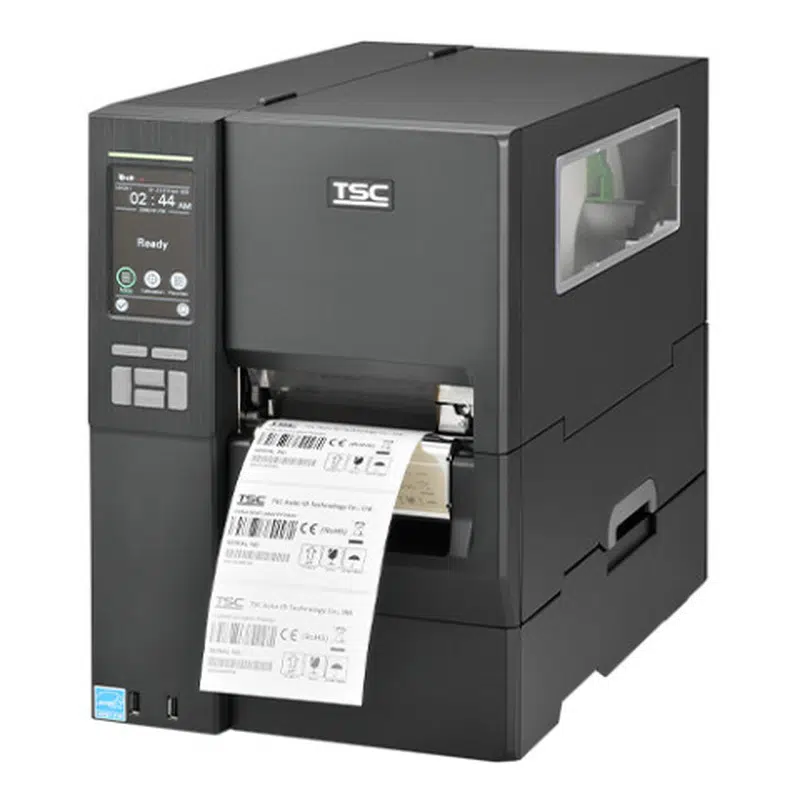

Name: TSC MH241 Series, 8 dots/mm (203 dpi), rewinder, disp., RTC, USB, RS232, Ethernet - MH241P-A001-0302 | Delfi
Brand: TSC
SKU: MH241P-A001-0302
Price: 9468.00 DKK
Availability: InStock

TSC MH241 Series, 8 dots/mm (203 dpi), rewinder, disp., RTC, USB, RS232, Ethernet

HIGHLIGHTS

Direct thermal / Thermal transfer
203 x 203 DPI
Maximum printing width: 10.4 cm Print speed: 356 mm/sec
Built-in barcodes: 1D, 2D, AZTECCODE, China post, Code 11, Code 128 (A/B/C), Code 39, Code 93, Code-128 Codabar Library, Code128UCC, Datamatrix, EAN128, EAN13, EAN8, GS1 DataBar, Interleaved 2/5, MSI, MaxiCode, PDF417, POSTNET, Plessey, QR Code, UPC-A, UPC-E
Connectivity technology: Wired & Wireless
USB port Ethernet LAN Wi-Fi Bluetooth
Display: LCD 10.2 cm (4") Colour display
18.9 kg

TSC MH241 Series, 8 dots/mm (203 dpi), rewinder, disp., RTC, USB, RS232, Ethernet

8 dots/mm (203 dpi), 356 mm/s, 256 MB SDRAM, 512 MB, USB, RS232, Ethernet, EU

9.468,00kr. Excl. VAT

SKU: MH241P-A001-0302

In stock – 2-5 days delivery

Description
Additional information
Documents

Description

TSC MH241P. Print technology: Direct thermal / Thermal transfer, Maximum resolution: 203 x 203 DPI, Print speed: 356 mm/sec. Connectivity technology: Wired & Wireless, Ethernet LAN, Wi-Fi, Bluetooth, USB port. Product colour: Black

This series features our flagship industrial barcode label printer with premium printhead technology, fast processor, and memory capacity to print high quality labels at the fastest speeds.

There are 18 MH series 4-inch wide printer models available in our performance industrial printer lineup. This series offers print resolution at 203 dpi and print speeds up to 14 ips, 300 dpi resolution to print speeds up to 12 ips, and 600 dpi resolution which makes it ideal for printing very small 2D barcodes, graphics, fine print, and other ultra-high-resolution images. Multiple resolutions and the ability to print on a wide variety of labels, ranging from healthcare patient safety, electronics, and jewelry labeling to shipping and distribution labels, make the MH Series ideal for industrial duty printing.

Scan & Camera

Built-in barcodes

1D, 2D, AZTECCODE, China post, Code 11, Code 128 (A/B/C), Code 39, Code 93, Code-128 Codabar Library, Code128UCC, Datamatrix, EAN128, EAN13, EAN8, GS1 DataBar, Interleaved 2/5, MSI, MaxiCode, PDF417,

Print technology	Direct thermal / Thermal transfer
Print speed	356 mm/sec
Maximum printing width	10.4 cm
Ribbon length	600 m
Page description languages	DPL, EPL, TSPL, TSPL-EZ, ZPL, ZPL II
Ribbon width	11.4 cm
Maximum print height	2.54 cm
Printable dot numbers	8 dot
Power consumption (printing)	243 W

Media & Labels

Maximum media length	11.4 cm
Tape end detection	Yes

Display

Maximum resolution	203 x 203 DPI
Display	LCD
Display diagonal	10.2 cm (4")
Colour display	Yes
Built-in display	Yes

Connectivity & Ports

Connectivity technology	Wired & Wireless
Ethernet LAN	Yes
USB port	Yes
RS-232 ports	1
Cables included	AC, USB

Wireless & Network

Wi-Fi	Yes
Bluetooth	Yes

Processor & Memory

Internal memory	256 MB
Flash memory	512 MB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Built-in processor	Yes

Battery & Power

AC adapter output voltage	36 V
AC adapter output current	1.4 A

Dimensions, Weight & Design

Product colour	Black
Width	276 mm
Depth	502 mm
Height	412 mm
Weight	18.9 kg
Colour	No

Operating Conditions

Operating relative humidity (H-H)	0 - 45%
Storage relative humidity (H-H)	25 - 85%
Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	10 - 90 °C

Certifications

Compliance certificates

BIS, BSMI, CCC, CE, EAC, Federal Communications Commission (FCC), KC, RCM, TÜV mark, cUL

Other specifications

Control type

Touch
