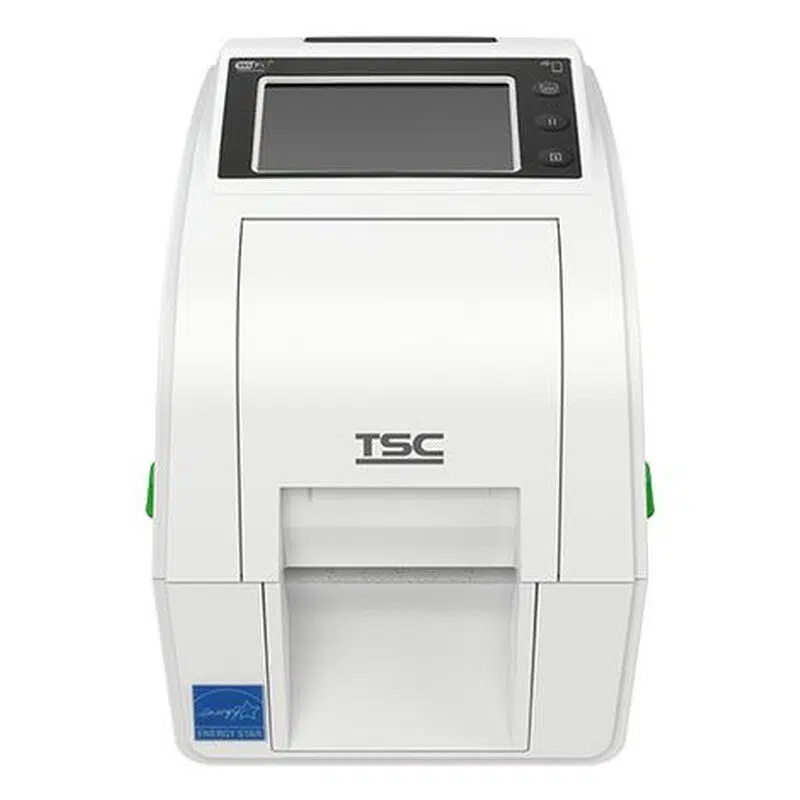

TSC TH220THC, Buzzer, 8 dots/mm (203 dpi), disp., RTC, USB, USB Host, RS232, Ethernet, kit (USB)
TSC TH220THC, Buzzer, 8 dots/mm (203 dpi), disp., RTC, USB, USB Host, RS232, Ethernet, kit (USB)
TH220THC, healthcare, LCD, DRAM 128 MB, Flash 128 MB, USB + RS-232 + Ethernet + USB host + RTC + buzzer, EU EMEA
3.326,00kr.
- Description
- Additional information
Description
TSC TH220THC. Print technology: Direct thermal / Thermal transfer, Maximum resolution: 203 x 203 DPI, Print speed: 203 mm/sec. Connectivity technology: Wired & Wireless, Ethernet LAN, Wi-Fi, Bluetooth, Bluetooth version: 5.0, USB port. Product colour: White
Seamless Integration, Effortless Deployment
– Out-of-the-box auto-switch print language emulation
– User-friendly and convenient label printing with TSC Standalone Creator and TSCPRTGo
Minimizing Downtime, Maximizing Uptime
– Real-time remote printer monitoring and management with the Internal Embedded Webpage, virtual control panel, TSC Console, and SOTI Connect
– Downtime prevention with self-diagnostic TPH Care, TPH (thermal printhead) maintenance, and ribbon low warning
– User-friendly design: self-diagnostics, toolless TPH and platen roller replacement for easy maintenance, and shortcut buttons for enhanced efficiency
– Supports network security configurations: HTTPS, SNMPv3, 802.1X, and TCP/IP Port 9100 filter
Versatile, Future-Proof Print Quality
– 15mm to 120mm wide media width for diverse media types, optional narrow media adaptors support the narrow label width to 10mm
– High-precision print quality with innovative label stabilizing media damper and adjustments in vertical DPI, heater line, and TPH pressure
– Supports UTF-8 TTF (TrueType Font) for different language label content printing
– Addable future-proof upgrades: Wi-Fi, Bluetooth, cutter module, peeler module, care label cutter kit, linerless tear-off kit, and linerless cutter kit
Environmentally Sustainable Printer
– 100% recyclable packaging with FSC-compliant cartons
– 100% recyclable plastic printer casing made with 30% recycled plastic
– 90%+ of printer components are recyclable
Healthcare Tailored Design
– Crisp white and bright full-color scheme, perfectly suited for healthcare environments
– Antimicrobial, easy-to-disinfect casing for effortless cleaning, vastly reducing the risk of contamination
– IEC 60601-1 Medical-Grade Compliant Power Supply, ensuring safe and reliable use in healthcare facilities
Additional information
| Print technology | Direct thermal / Thermal transfer |
|---|---|
| Maximum resolution | 203 x 203 DPI |
| Print speed | 203 mm/sec |
| Maximum printing width | 5.4 cm |
| Media thickness | 0.06 – 0.19 mm |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| USB port | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Internal memory | 128 MB |
| Flash memory | 128 MB |
| Product colour | White |
| Display | LCD |
| Display diagonal | 8.89 cm (3.5") |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Operating relative humidity (H-H) | 25 – 85% |
| Storage relative humidity (H-H) | 10 – 90% |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 60 °C |
| Width | 146 mm |
| Depth | 231 mm |
| Height | 179 mm |
| Weight | 1.8 kg |
| RS-232 ports | 1 |
| Ribbon length | 90 m |
| Page description languages | DPL, TSPL-EZ, ZPL, ZPL II |
| Built-in barcodes | 1D, 2D, AZTECCODE, CODABAR (NW-7), China post, Codablock F, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Code128UCC, Datamatrix, Deutsche Post Identcode, Deutsche Post Leitcode, EAN128, EAN13 |
| Control type | Buttons, Touch |
| Ribbon width | 5.8 cm |
| Colour display | Yes |
| Display resolution | 480 x 320 pixels |
| Printable dot numbers | 8 dot |
| Sustainability certificates | ENERGY STAR |
| Cables included | AC, USB |
| Built-in processor | Yes |
| AC adapter output voltage | 24 V |
| AC adapter output current | 2.5 A |
| Tape end detection | Yes |
| Open cover detection | Yes |
| Built-in display | Yes |
| Compliance certificates | BIS, CB, CCC, CE, China RoHS, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RCM, REACH, RoHS, UKCA, WEEE, cTUVus |
| Warranty period | 2 year(s) |
