TSC TTP-286MT, 8 dots/mm (203 dpi), RTC, display, TSPL-EZ, USB, RS232, LPT, Ethernet
TSC TTP-286MT, 8 dots/mm (203 dpi), RTC, display, TSPL-EZ, USB, RS232, LPT, Ethernet
TTP-286MT, RTC, Display, TSPL-EZ, USB, RS232, LPT, Ethernet
16.582,00kr.
- Description
- Additional information
Description

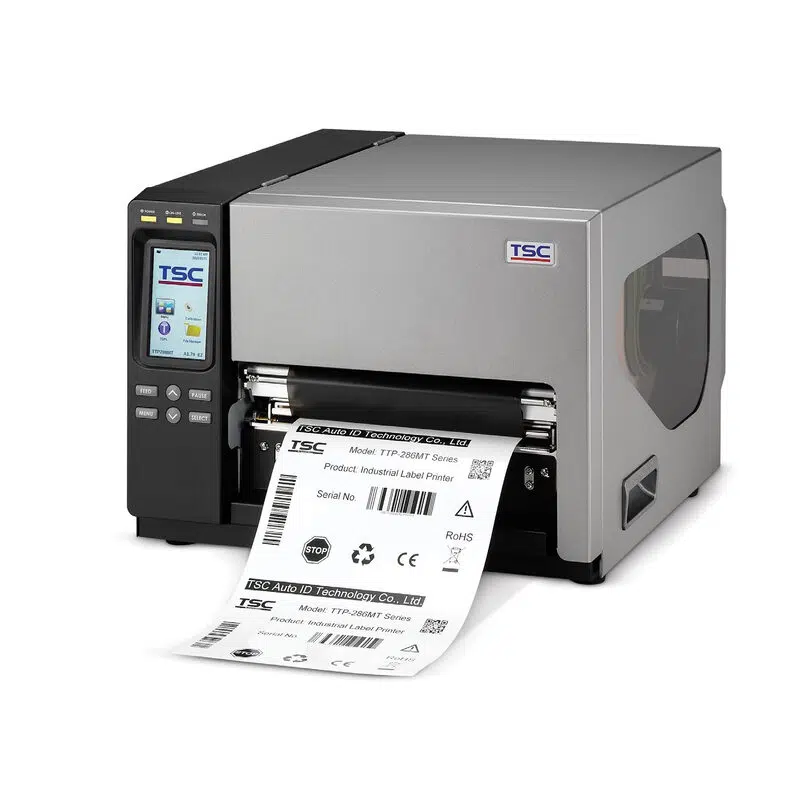

TSC TTP-286MT. Print technology: Direct thermal / Thermal transfer, Maximum resolution: 203 x 203 DPI, Print speed: 152 mm/sec. Connectivity technology: Wired, Ethernet LAN, USB port. Supported paper width: 241.3 mm. Product colour: Black, Grey
The TSC TTP-286MT 8-Inch Performance Industrial Printer is perfectly suited for compliance labeling, marketing your brand, drum labeling, warning signs and a host of other signage solutions. TTP-286MT prints at a resolution of 203 dpi with speeds up to 6-inches per second. The TTP-286MT is designed with wide-printing capabilities, allowing your business to print wide lateral bar codes without the need for rotating images.
2 years
Additional information
| Print technology | Direct thermal / Thermal transfer |
|---|---|
| Maximum resolution | 203 x 203 DPI |
| Print speed | 152 mm/sec |
| Maximum printing width | 21.6 cm |
| Maximum label length | 11.43 m |
| Media thickness | 0.06 ~ 0.254 mm |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| USB port | Yes |
| Internal memory | 256 MB |
| Flash memory | 512 MB |
| Product colour | Black, Grey |
| Display | LCD |
| Display diagonal | 10.9 cm (4.3") |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Operating relative humidity (H-H) | 20 – 85% |
| Storage relative humidity (H-H) | 10 – 90% |
| Operating temperature (T-T) | 5 – 40 °C |
| Storage temperature (T-T) | -40 – 60 °C |
| Width | 440 mm |
| Depth | 514 mm |
| Height | 336 mm |
| Weight | 23.7 kg |
| Colour | No |
| Autocutter | Yes |
| Supported paper width | 241.3 mm |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Certification | FCC Class A, CE Class A, UL, cUL, TÜV/Safety |
| Ribbon length | 600 m |
| Built-in barcodes | 1D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 93, Code-128 Codabar Library, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, GS1 DataMatrix, Interleaved 2/5, MSI, MaxiCode, PDF |
| Control type | Buttons, Touch |
| Ribbon width | 25.4 cm |
| Core diameter | 7.62 cm |
| Colour display | Yes |
| Number of fonts | 8 |
| Display resolution | 480 x 272 pixels |
| Printable dot numbers | 8 dot |
| Sustainability compliance | Yes |
| Cables included | AC, USB |
| Printing colours | Black |
| Built-in processor | Yes |
| AC adapter output voltage | 24 V |
| AC adapter output current | 8.33 A |
| Backlight display | Yes |
| Built-in display | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, TÜV mark, UL, WEEE, cUL |
| Power source type | DC |
