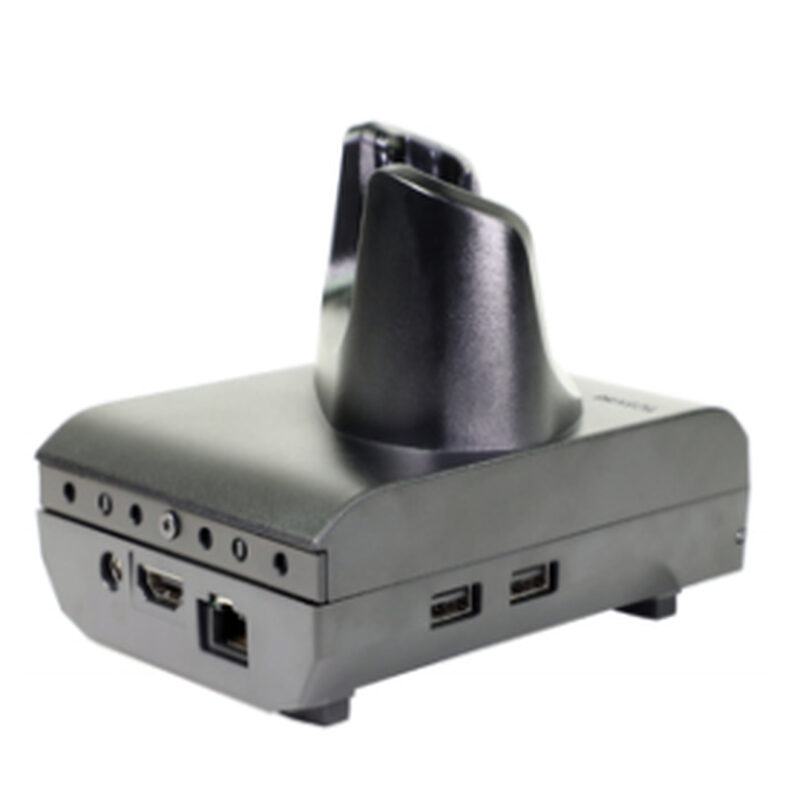

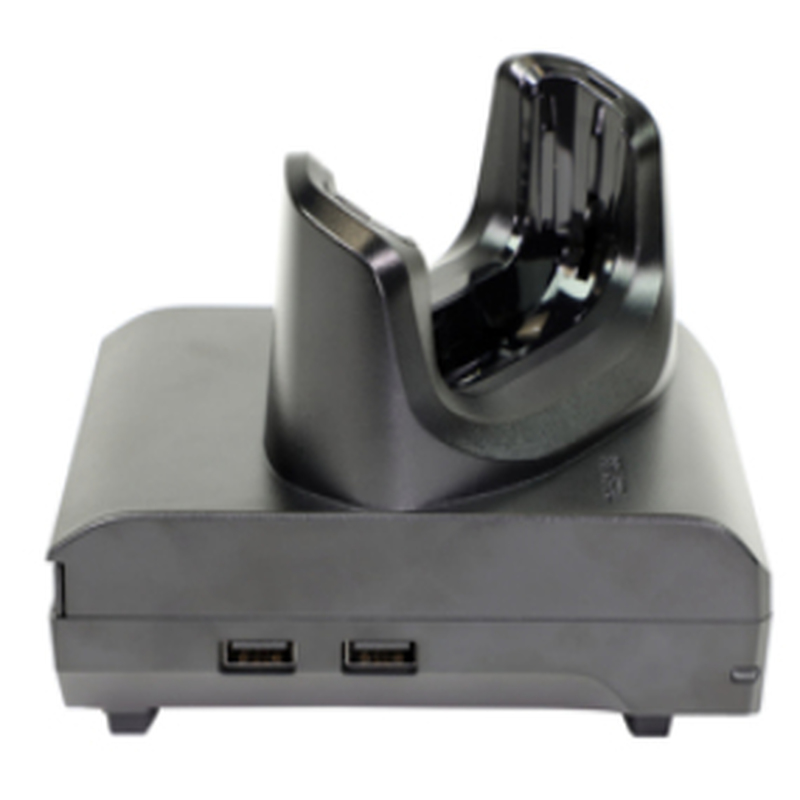

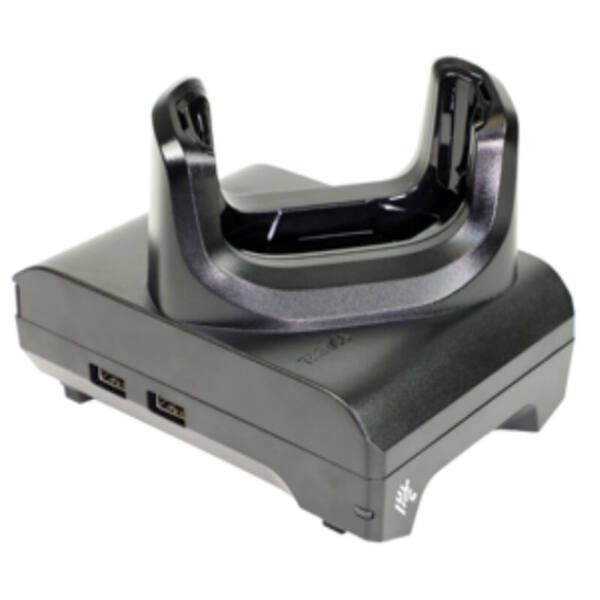

Zebra TC5X Docking Station, USB, Ethernet, HDMI
HIGHLIGHTS
- Basic device type: PDA
- Brand compatibility: Zebra
- Black
- Ethernet LAN HDMI
- Power source type: DC External power adapter
Zebra TC5X Docking Station, USB, Ethernet, HDMI
4xUSB-A/HDMI/RJ-45, 1.5A, Black
3.530,00kr. Excl. VAT
- Description
- Additional information
- Documents
Description
Zebra CRD-TC5X-1SWS-01. Basic device type: PDA, Brand compatibility: Zebra, Compatibility: TC5x, Product colour: Black
Workstation Docking Cradle Kit

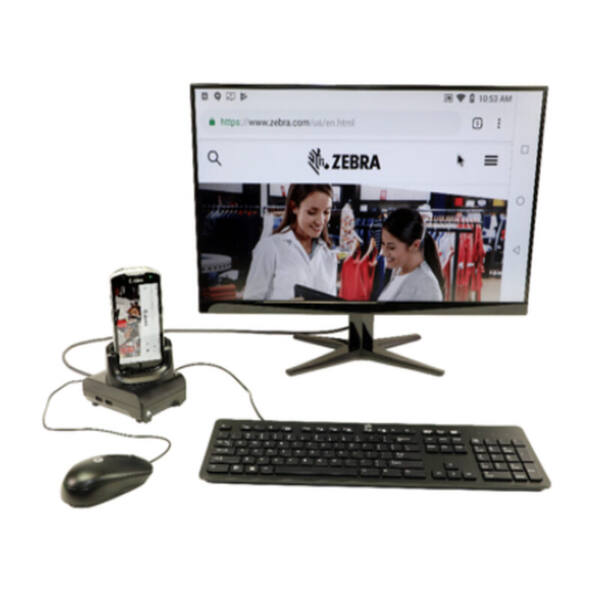

– An enhanced single-slot charging cradle allowing users to use the TC5X as a workstation or kiosk.
– Two USB ports are located on both sides of cradle. One port provides 1.5A current. The remaining three provide .5A current.
– Also includes Kensington port to secure the cradle to a desk location. Cradle can also be screwed down to desk/counter.
– Will charge TC5x only. Does not charge spare battery.
– Will charge battery in TC5x from 0-90% in as little as 2.5 hours
– Compatible with TC5x units with hand strap, Rugged Boot, or Pistol Grip Handle attached.
– Includes cradle insert/shim that requires removal when using a TC5x unit with the Rugged Boot/Exoskeleton or Pistol Grip Handle attached.
– Connects to rugged charge/communication connector on bottom of TC5x.
– TC5X may require additional drivers or updated BSP – see PMB 10207 for details.
– Kit includes Workstation Docking Cradle (CRD-TC5X-1SWS1-01), Power Supply (PWR-BGA12V50W0WW) and DC Line Cord (CBL-DC-388A1-01).
Additional information
| Basic device type | PDA |
|---|---|
| Brand compatibility | Zebra |
| Compatibility | TC5x |
| Product colour | Black |
| Ethernet LAN | Yes |
| Audio output | No |
| HDMI | Yes |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power source type | DC |
| Harmonized System (HS) code | 84719000 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| HDMI connector type | Full-size |
| DC output current | 1.5 A |
| External power adapter | Yes |
| Cables included | DC |
