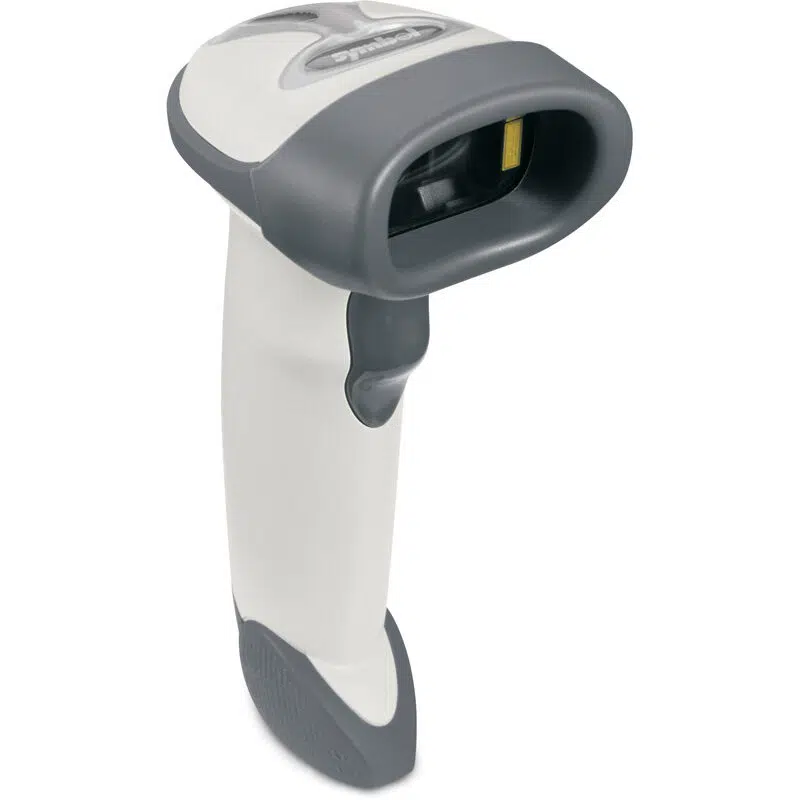

Zebra LS2208 White (with Stand) USB Kit: LS2208-SR20001R Scanner,
HIGHLIGHTS
- White
 - Sensor type: Laser
 - Tilt reading angle: -30 - 30°
 - Standard interfaces: USB

- Description
 - Additional information

Description
Motorola LS2208. Sensor type: Laser, Tilt reading angle: -30 – 30°, Pitch reading angle: -65 – 65°. Standard interfaces: USB. Product colour: White. Input voltage: 5 V, Power consumption: 130 mA. Weight: 146 g
The affordable LS2208 handheld bar code scanner provides fast, reliable scanning in an ergonomic, lightweight form. The wide working range —from near-contact to 17 inches — makes this device ideal for retail, hospital, education or government settings. Multiple on-board interfaces ensure integration with a variety of host systems
Durable, single-board construction
Meets stringent 5-ft drop tests.
Scratch-resistant tempered glass exit window
Is designed for continuous use.
Accurate first-time capture of 1D bar codes
Increased productivity, resulting in shorter check-out lines and better customer service.
Wide working range
Delivers optimal performance from contact to 17 in (43 cm).
Multiple on-board interfaces
Simplify installation and integration and ensures future compatibility.
Plug-and-play, with universal cable
Means rapid deployment, with a single cable connecting to any computing environment.
Intuitive design
Minimizes setup and training time.
Ergonomic, lightweight design
Reduces user fatigue with sleek, balanced form for maximum comfort and productivity.
Hands-free Intellistand
Enables presentation scanning and easy switching between hands-free and handheld modes.
Advanced Data Formatting (ADF)
Enables users to modify data prior to sending to host computer, reducing costly modifications to the host software.
5 Years
Additional information
| Sensor type | Laser  |

|---|---|
| Tilt reading angle | -30 – 30°  |

| Pitch reading angle | -65 – 65°  |

| Yaw reading angle | -60 – 60°  |

| Standard interfaces | USB  |

| Product colour | White  |

| Input voltage | 5 V  |

| Power consumption | 130 mA  |

| Weight | 146 g  |

| Operating temperature (T-T) | 0 – 50 °C  |

| Storage temperature (T-T) | -40 – 70 °C  |

| Operating relative humidity (H-H) | 5 – 95%  |

| Harmonized System (HS) code | 84716070  |

| Dimensions (WxDxH) | 63 x 84 x 152 mm  |

| Safety | UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1  |

| Decoding standards | UPC/EANUPC/EAN + SupplementalsUCC/EAN 128Code 39Code 39 Full ASCIICode 39 TriOpticCode 128Code 128 Full ASCIICodabarInterleaved 2/5Discrete 2/5Code 93MSICode 11IATAGS1 DataBarChinese 2/5  |

| Light source | 650nm  |

| Scan speed | 100 sec/page  |

| Electromagnetic emissions | FCC Part 15 Class B, ICES 003 Class B  |
