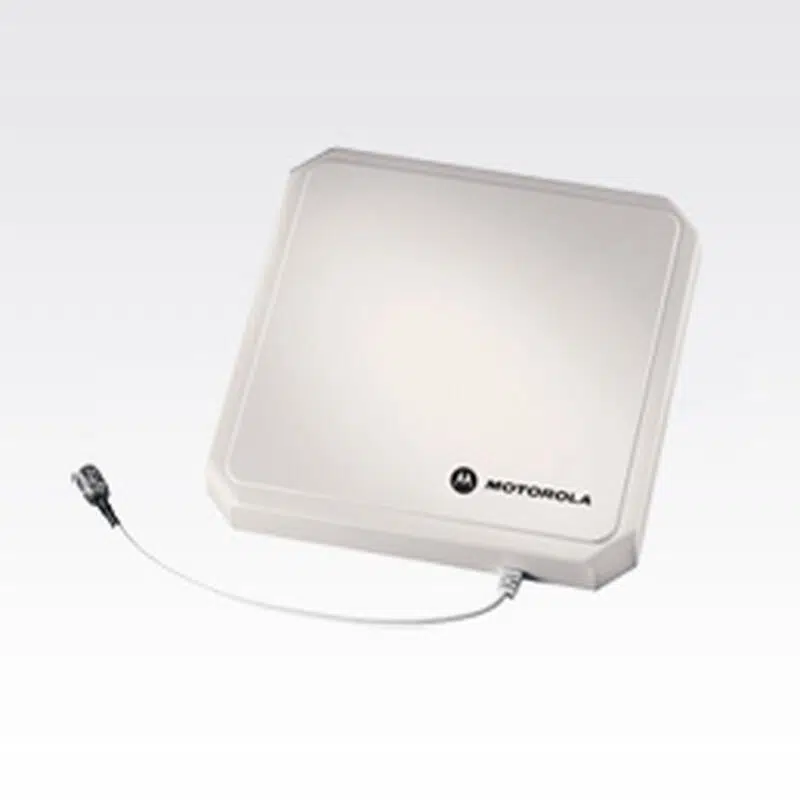

Zebra RFID antenna
HIGHLIGHTS
- N-type White
- 6 dBi
- 50 Ω
- Horizontal polarization
- Wall
Zebra RFID antenna
AN480-CL66100WR, AN480 RFID Antenna, 1.13kg, White
1.683,00kr. Excl. VAT
- Description
- Additional information
Description
Motorola AN480-CL66100WR. Antenna gain level (max): 6 dBi, Impedance: 50 Ω. Antenna connector type: N-type, Polarization: Horizontal polarization, Voltage Standing Wave Ratio (VSWR): 1.22:1. Compliance certificates: RoHS, Certification: IP 54 IEC-68 UL-746C. Width: 259.1 mm, Depth: 258.1 mm, Height: 50.3 mm. Frequency range: 865-868 MHz
This single port antenna offers the maximum flexibility and performance required to meet the needs of enterprises around the world. Compatible in virtually any global market, Motorola’s AN480 can be installed throughout the enterprise in manufacturing and warehouse floor environments or any dock door receiving application
The AN480 antenna offers a low axial ratio that delivers a more uniform gain for superior performance.
1 year
Connectivity & Ports
| Antenna connector type | N-type |
Wireless & Network
| Antenna gain level (max) | 6 dBi |
| Frequency range | 865-868 MHz |
Audio
| Impedance | 50 Ω |
Battery & Power
| Voltage Standing Wave Ratio (VSWR) | 1.22:1 |
| Power handling | 2 W |
Dimensions, Weight & Design
| Mounting | Wall |
| Product colour | White |
| Width | 259.1 mm |
| Depth | 258.1 mm |
| Height | 50.3 mm |
| Weight | 1.13 kg |
Certifications
| Certification | IP 54IEC-68UL-746C |
| Harmonized System (HS) code | 85177100 |
| Compliance certificates | RoHS |
Other specifications
| Polarization | Horizontal polarization |
