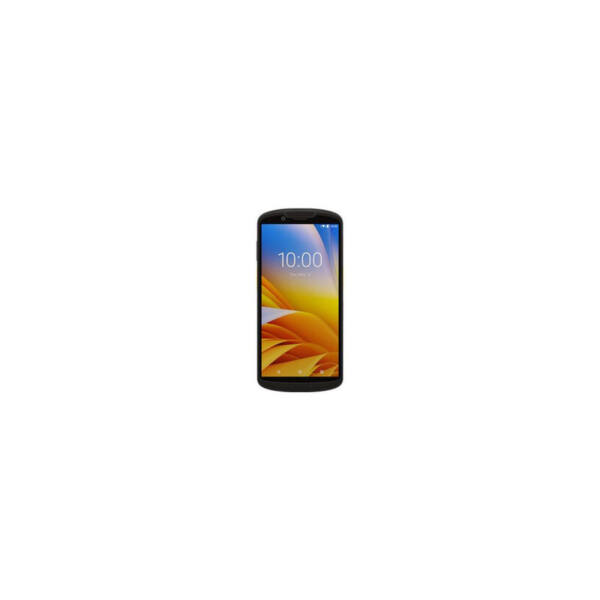

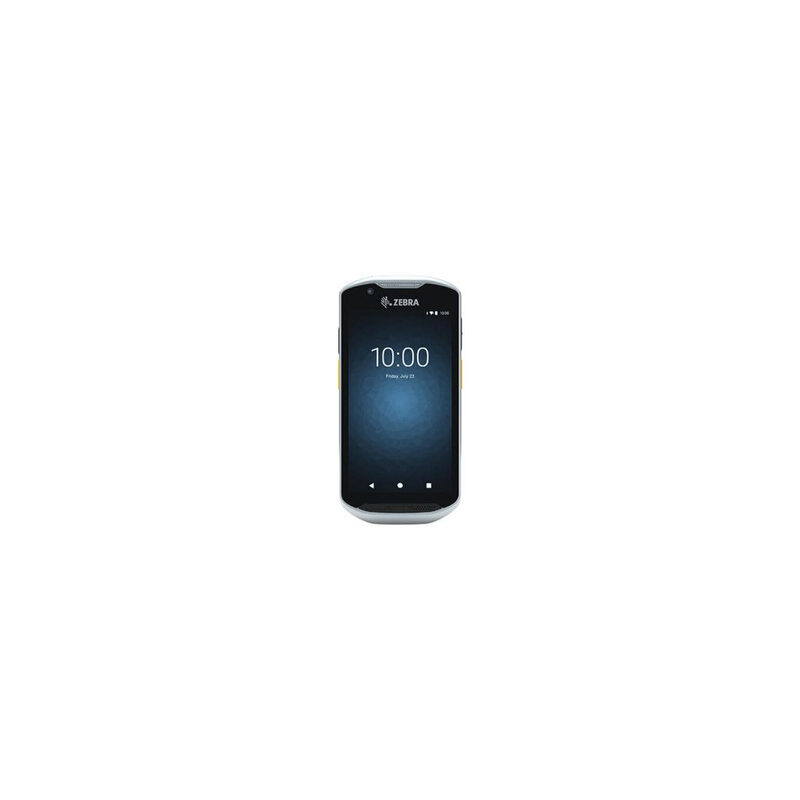

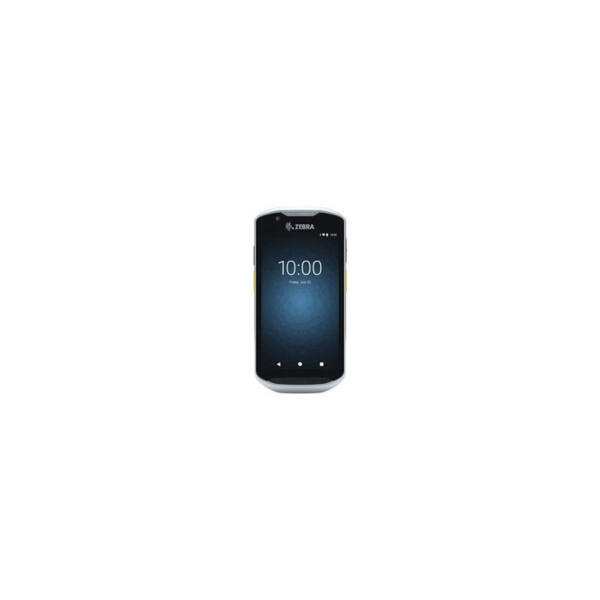

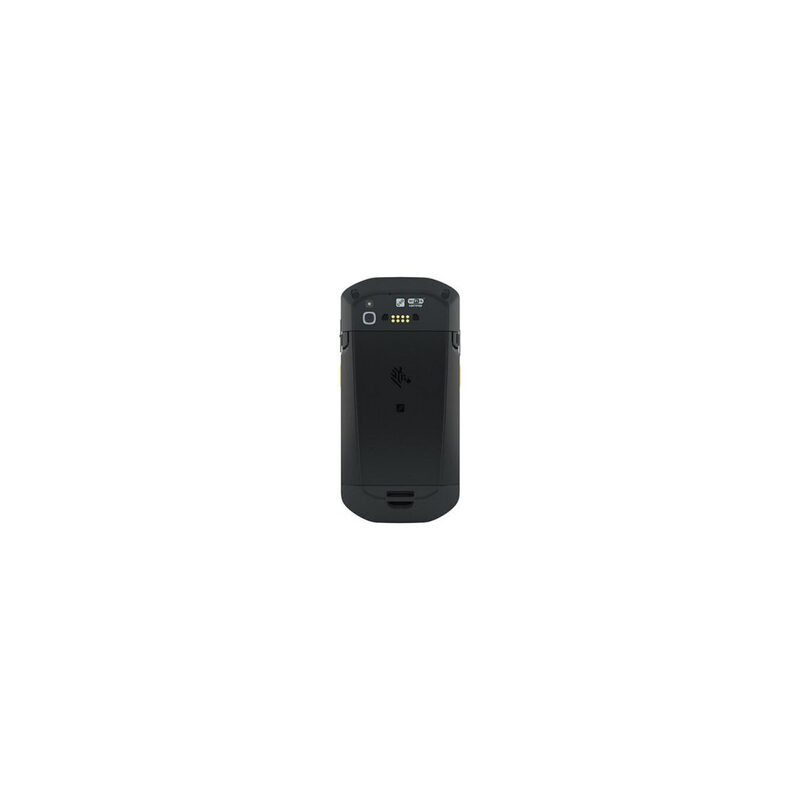

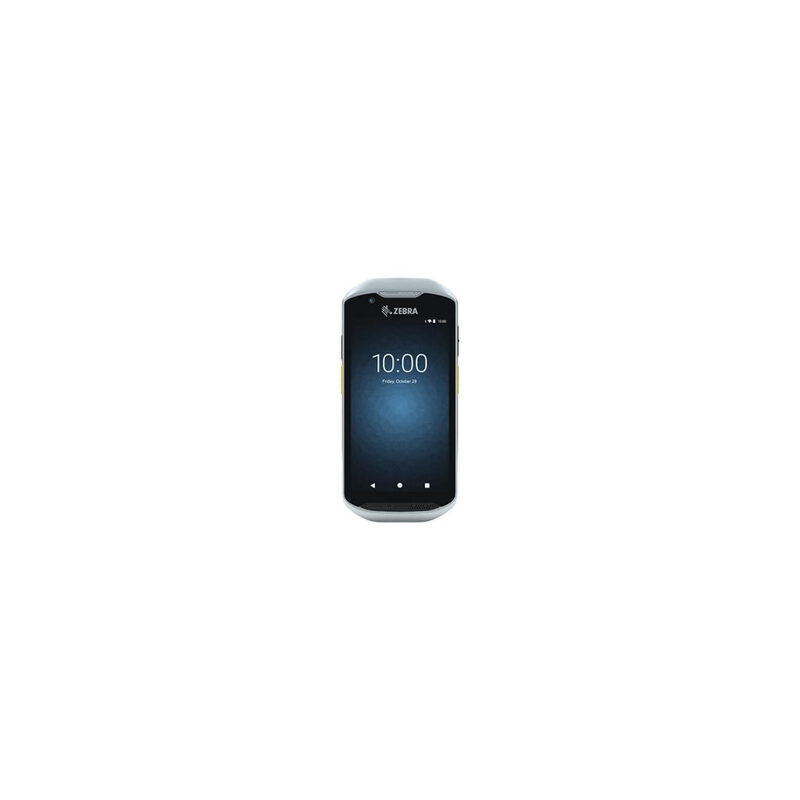

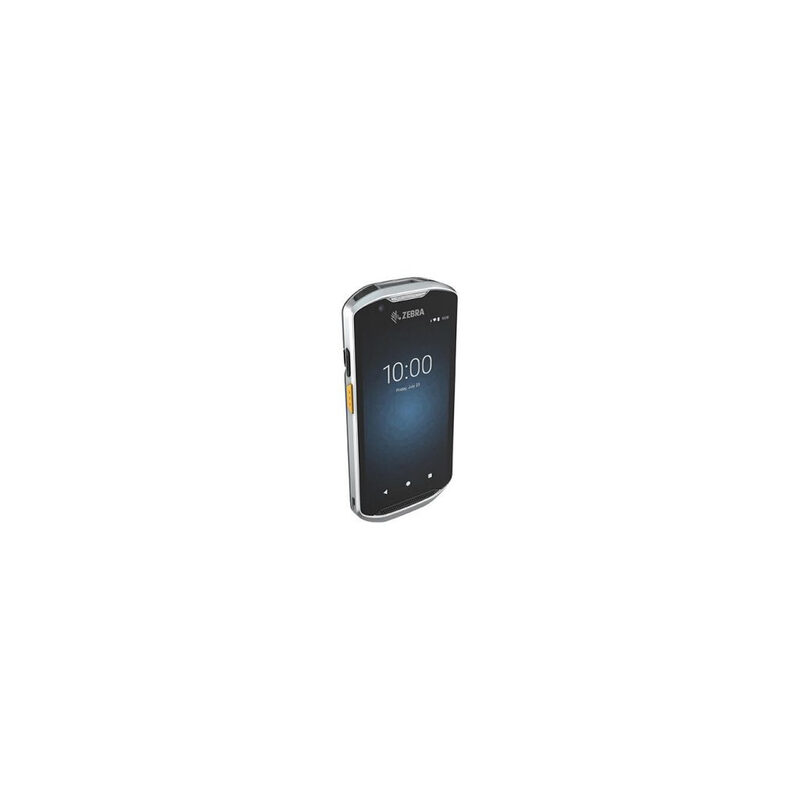

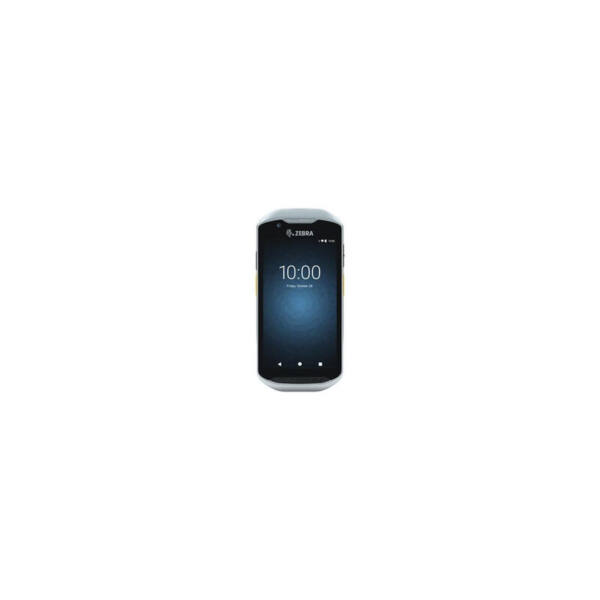

Zebra TC52ax, Handheld Terminal, 1D/2D, Android 11, SE5500

Description

Zebra TC52AX. Display diagonal: 12.7 cm (5″), Display resolution: 1920 x 1080 pixels, Touch technology: Dual-touch. Internal memory: 4 GB, Flash memory: 64 GB, Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. Processor frequency: 2.45 GHz, Processor manufacturer: Qualcomm, Processor family: Snapdragon, Processor model: 660. Operating system installed: Android. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Barcode reader

The TC5X Series builds on the best-selling TC52 and TC57 rugged handheld mobile computers, with three models that deliver the ultimate in rugged, all-touch mobile computing. The Wi-Fi only TC52x and the Wi-Fi/cellular TC57x add support for the latest mobile innovations, paving the way for new apps that deliver more value and superior future-proofing — such as payment solutions. Support for more Mobility DNA tools makes everything easier — from the user interface to device management, integration and app development. The Wi-Fi only TC52ax adds Wi-Fi 6, a new scanner option with intelligent focusing, double the memory to boost application performance and the new Workstation Connect solution that allows the TC52ax to function simultaneously as a workstation and a mobile computer. And with LifeGuard 3, keeping all TC5X devices and data secure has never been easier.1 The TC5X Series — the ultimate rugged mobile computers, redefined.

The best-in-class green laser aimer is designed for the extended scanning range. It’s up to seven times more visible than a red laser. And instead of the typical aiming dot, the aiming pattern spreads out over several feet. The result? Easy and accurate point-and-shoot aiming throughout the entire scan range — even in bright sunlight. And no matter which engine you choose, with Zebra’s PRZM Intelligent Imaging Technology, you get the performance that has made Zebra the worldwide leader in barcode scanning — dependably fast first-time every-time barcode capture.

Maximize productivity with enterprise accessories

Backwards compatibility with all TC52/TC57 accessories allows you to cost-effectively upgrade to the latest technology. Support is built in for the new generation of payment solutions. And Zebra’s HD4000 head-mounted display enables new cutting edge hands-free directed-action workflows.

Easily find misplaced devices

An integrated Bluetooth beacon and support for Device Tracker allows users to quickly and easily locate misplaced or missing devices. And with support for the latest version of Device Tracker, the TC52ax can be located — even if the device is turned off or the battery is dead.

Full shift power your workers can count on

The PowerPrecision+ high capacity battery delivers up to an impressive 14 hours of power3 — plenty for the longest shift. With a two-minute Warm Swap mode, swapping batteries is fast and easy — there’s no need to turn off the device or close active apps. And with fast charging, batteries are fully charged and ready to go in record time.

A USER EXPERIENCE IN A CLASS OF ITS OWN
Powerful advanced scanning for the fastest, easiest data capture

Available in all models, the SE4720 delivers point-and-shoot simplicity with a large ‘sweet spot’ of up to 24 in./60 cm away, and easy capture of large barcodes at close range. Available in the TC52ax, the SE55 Advanced Range Scan Engine with IntelliFocus™ technology intelligently adjusts to quickly capture barcodes in hand or over 40 ft./12 m2 away — ideal for dark stores and front-of-store micro-fulfillment centers.

Maximum application performance

Instantly navigate through application screens, thanks to the faster 2.45 GHz processor and new Universal Flash Storage (UFS).

Advanced higher-resolution touchscreen technology with Full HD

Full HD utilizes the entire 5-inch display, providing more room to view more information. The easy, familiar and flexible multi-touch operation works even when wet, with a gloved finger or a stylus. And the best-in-class outdoor readability screen is easy to read, even in bright sunlight.

Get double functionality — turn your TC52ax into a mobile-powered workstation

When workers need a larger display to best view information and interact with applications, the TC52ax with Workstation Connect delivers. This powerful complimentary software solution enables the display of TC52ax apps on a large monitor, complete with a mouse, keyboard and any other peripheral required to make app interaction easy. Workers get a true workstation experience — the application’s user interface takes advantage of the additional screen real estate and users can resize windows — and open multiple apps in multiple windows. And workers can switch between mobile computer and mobile-powered workstation on the fly to meet the app needs of the moment. The result? More ways to use your TC52ax, boosting device value and return on investment, while simplifying and reducing the cost of your technology infrastructure.

ALL THE LATEST TECHNOLOGY ADVANCEMENTS
Rugged and ready for the toughest business day

The TC5X Series mobile computers may look like smartphones, but they are engineered for the enterprise. Drop it in water or on concrete, use it in the rain, snow or dusty areas. Sealing now includes the battery, increasing reliability. The unibody design provides extra impact protection for the sensitive electronics. And Corning® Gorilla® Glass provides maximum scratch-resistance and shatter-proofing for the touch panel and scanner window.

More Wi-Fi range and speed — with less power

2×2 Multiple-User Multiple Input Multiple Output (MU-MIMO) technology allows access points to communicate with multiple devices simultaneously via pinpoint beamforming, boosting Wi-Fi network capacity, speed and range. Processing is shifted from the mobile device to the access point, extending battery cycle time.

And if you need the latest in Wi-Fi technology, the future-ready TC52ax supports Wi-Fi 6, providing your workers with unmatched wireless performance.

The highest quality voice in its class

Three microphones, high-volume speakers and noise-cancellation technology work together to ensure that callers on both ends of every call can hear every word — even in the noisiest areas. And inside your facility, Zebra’s Fusion software ensures voice clarity everywhere — on the warehouse or sales floor, in a stairwell or in the parking lot.

Complete cellular network flexibility with single device simplicity

The TC57x provides workers anywhere in the world with dependable cellular service. And certification on leading public safety networks provides first responders with the dependable service they require.

Ultra high-resolution photos and videos

The 13 MP color rear camera captures detailed photos and videos for proof-of-condition/delivery/service, onsite support and more. And with more advanced software, color is accurate, images are sharper and crisper, a dynamic lighting range enables superior image capture in low light — and new on screen icons make the user interface more intuitive.

5 MP front-facing camera supports more advanced apps

Video calling improves service and productivity. Customers enjoy a more personal touch, while remote experts can assist with repair to help onsite technicians resolve issues faster and increase first-time-fix rates.

Bluetooth 5.x — 2x speed, 4x the range, all with less power

Improved data speeds up to 2 Mbps increase application flexibility and performance for Bluetooth peripherals, such as printers and headsets, while Bluetooth Low Energy (BLE) reduces power requirements to extend battery cycle times.

DRIVE WORKFORCE PRODUCTIVITY AND DEVICE CONTROL TO A NEW LEVEL WITH THE POWERFUL MOBILITY DNATM SUITE
So many tools, so much value

LifeGuardTM for AndroidTM provides security patches that keep your device secure, every day your devices are in service — and devices can be updated automatically. Mobility Extensions (Mx) provides over a hundred features you can activate to improve the security, data capture support, wireless connectivity and device manageability of the standard Android operating system. Stage a handful or thousands of devices quickly and easily with StageNow — including deactivation of Google Mobile Services (GMS). Control the apps and device features your workers see with Enterprise Home Screen. Capture and send data right to your application with DataWedge — no coding required. WorryFree Wi-Fi provides dependably superior Wi-Fi. PowerPrecision Console and the PowerPrecision+ battery enable unsurpassed battery management. Add push to talk over Wi-Fi or cellular with PTT Pro. Turn TC5X Series devices into mobile PBX handsets with PTT Voice. And more.
