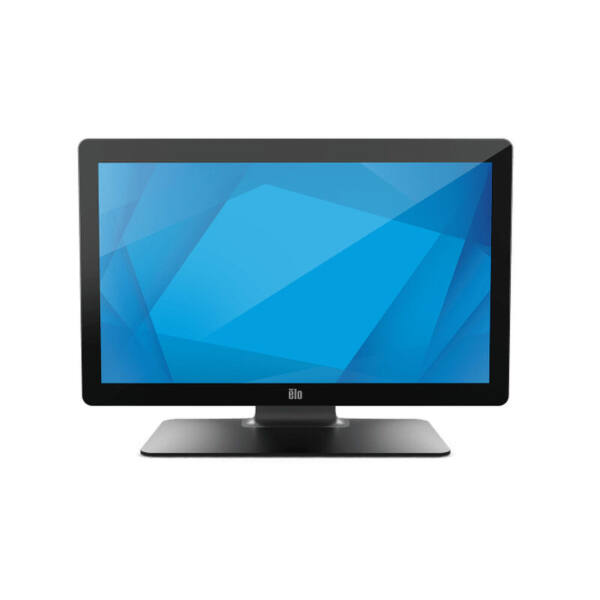

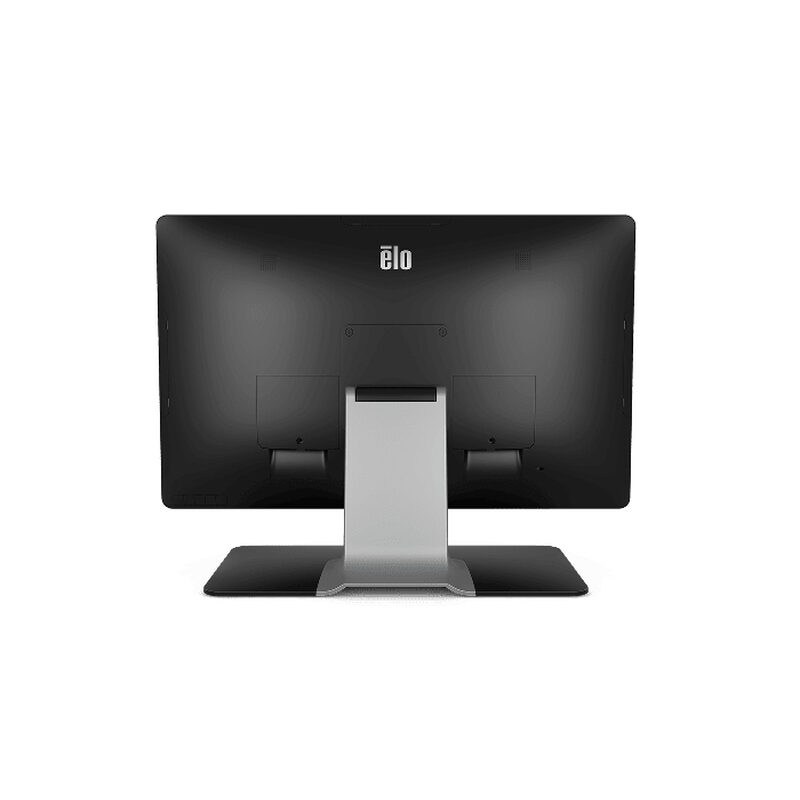

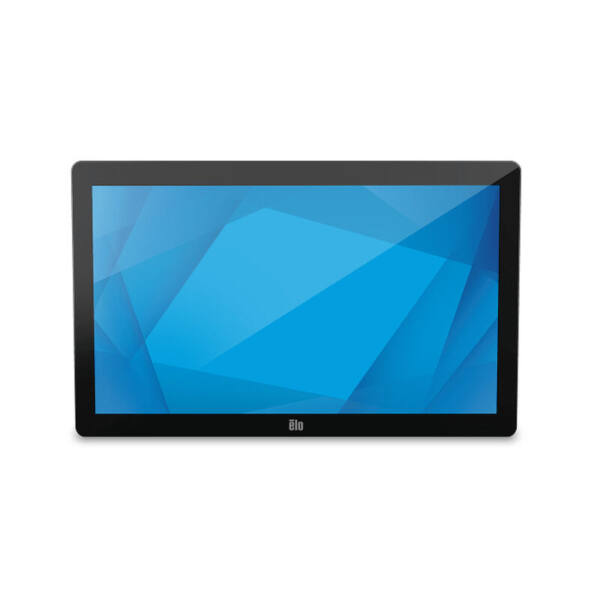

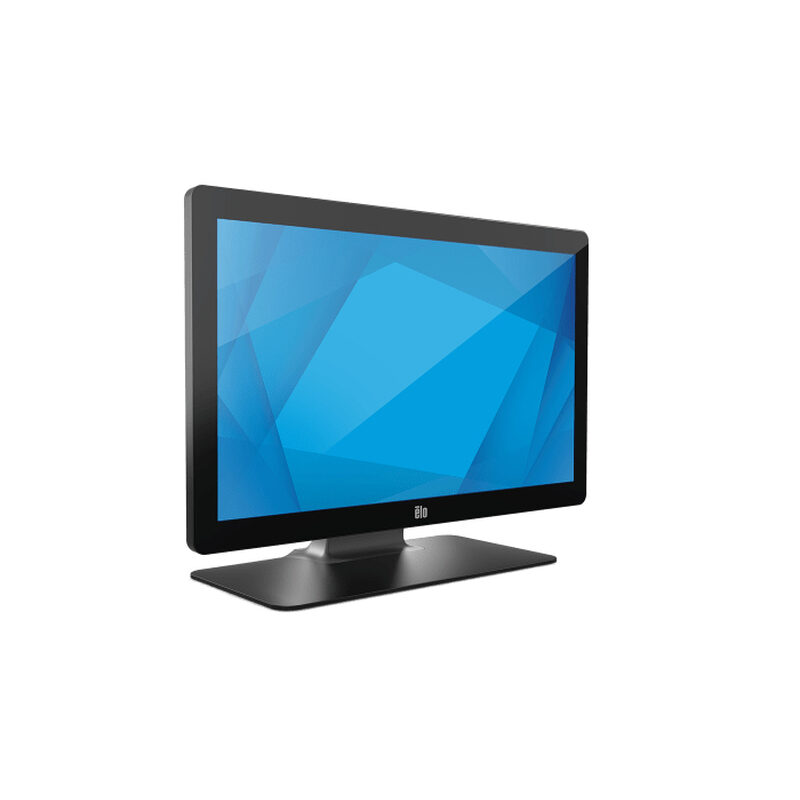

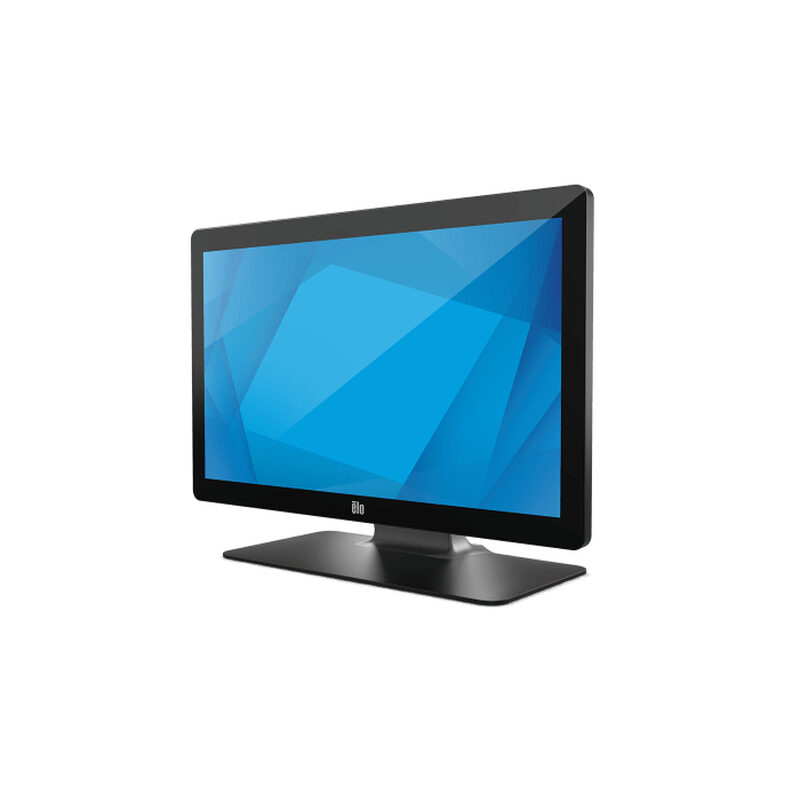

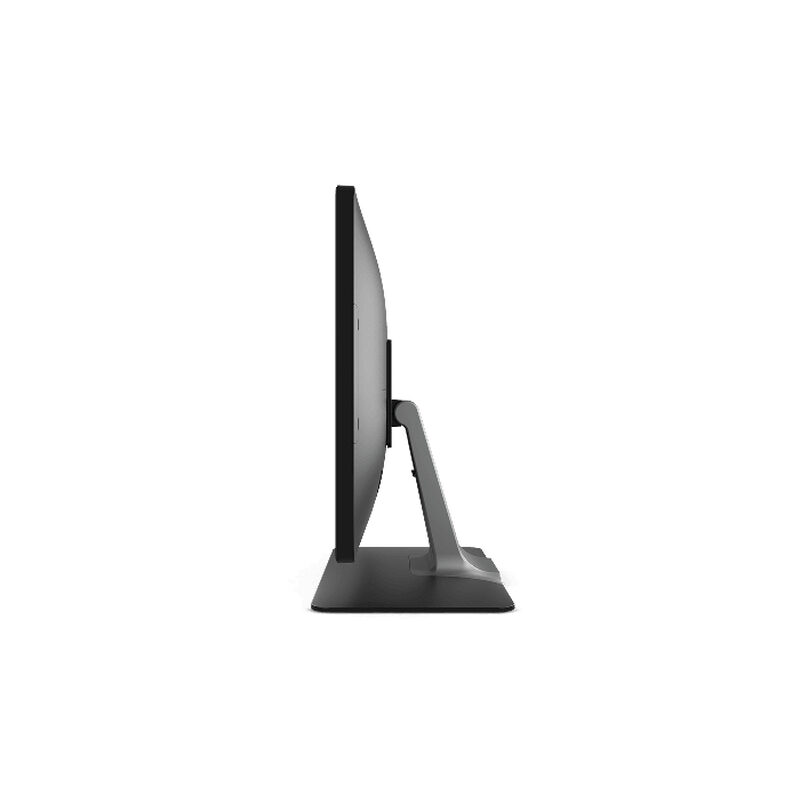

Elo 2202L 22-inch wide LCD Desktop, Full HD, Projected Capacitive 10-touch, USB Controller,












HIGHLIGHTS
- Touchscreen 54.6 cm (21.5") LED
- 1920 x 1080 pixels 16:9
- 60 Hz 14 ms 1000:1
- E 16 kWh 16.78 W
Elo 2202L 22-inch wide LCD Desktop, Full HD, Projected Capacitive 10-touch, USB Controller,
648,14 € Exkl. MwSt
21.5“, 16:9, 1920 x 1080, 240 nits, PCAP 10 Touch, 14 msec, VGA, HDMI, 4 x Micro USB, Anti-glare with Stand
- Beschreibung
- Zusätzliche Informationen
- Dokumente
Beschreibung
Elo Touch Solutions E159758. Display diagonal: 54.6 cm (21.5″), Display resolution: 1920 x 1080 pixels, Display technology: LED, Response time: 14 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub. VESA mounting. Product colour: Black
The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.
Brilliant Displays from 19 to 27-inches
The brilliant touchscreens with Elo’s industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.
Well-Suited for…
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
Fingerprint Scanner
The Biometric Fingerprint Scanner can be attached to provide secure and quick login.
MSR
Elo offers the flexibility of integrating payment devices, including a Magtek 3-track encryptable MSR payment terminal.
Barcode Scanner
Enhance self-service checkout and price-checker applications by coupling a high-performance barcode scanner onto the Elo touchscreen.
NFC
The Near Field Communication (NFC) adapter can be integrated for easy mobile payments with just a touch of the phone.
One for You.
One for Your Customers.Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.
Mount with Flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.
Zusätzliche Informationen
Display diagonal | 54.6 cm (21.5") |
---|---|
Display resolution | 1920 x 1080 pixels |
Native aspect ratio | 16:9 |
Display technology | LED |
Touchscreen | Yes |
Screen shape | Flat |
Contrast ratio (typical) | 1000:1 |
Maximum refresh rate | 60 Hz |
Display number of colours | 16.7 million colours |
Touchscreen type | Tabletop |
Touchscreen technology | Projected capacitive system |
Touch technology | Multi-touch |
Number of simultaneous touchpoints | 10 |
Response time | 14 ms |
Supported graphics resolutions | 640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+) |
Viewing angle, horizontal | 178° |
Viewing angle, vertical | 178° |
NVIDIA G-SYNC | No |
AMD FreeSync | No |
Built-in speaker(s) | Yes |
Built-in camera | No |
Number of speakers | 2 |
RMS rated power | 20 W |
Product colour | Black |
HDMI | Yes |
VGA (D-Sub) ports quantity | 1 |
HDMI ports quantity | 1 |
DC-in jack | Yes |
VESA mounting | Yes |
Panel mounting interface | 100 x 100 mm |
Wall mountable | Yes |
On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Russian |
Energy efficiency class (SDR) | E |
Energy consumption (SDR) per 1000 hours | 16 kWh |
Power consumption (typical) | 16.78 W |
Power consumption (standby) | 0.69 W |
Power consumption (off) | 0.28 W |
Energy efficiency scale | A to G |
Operating temperature (T-T) | 0 – 40 °C |
Storage temperature (T-T) | -20 – 60 °C |
Operating relative humidity (H-H) | 20 – 80% |
Storage relative humidity (H-H) | 10 – 95% |
Cables included | AC, Audio, HDMI, USB, VGA |
Width (without stand) | 326.9 mm |
Depth (without stand) | 42.7 mm |
Height (without stand) | 526.9 mm |
Weight (without stand) | 6.75 kg |
Package width | 477 mm |
Package depth | 260 mm |
Package height | 617 mm |
Package weight | 10.8 kg |
Aspect ratio | 16:9 |
Horizontal scan range | 30 – 82 kHz |
Vertical scan range | 50 – 75 Hz |
Built-in USB hub | Yes |
USB upstream port type | USB Type-A, USB Type-B |
Audio input | Yes |
Audio output | Yes |
AC input voltage | 100 – 240 V |
AC input frequency | 50/60 Hz |
Quick start guide | Yes |
Mean time between failures (MTBF) | 50000 h |
Height adjustment | No |
USB Type-C downstream ports quantity | 4 |
Number of OSD languages | 10 |
Width (with stand) | 383.8 mm |
Depth (with stand) | 193.4 mm |
Height (with stand) | 526.9 mm |
Weight (with stand) | 4.75 kg |
