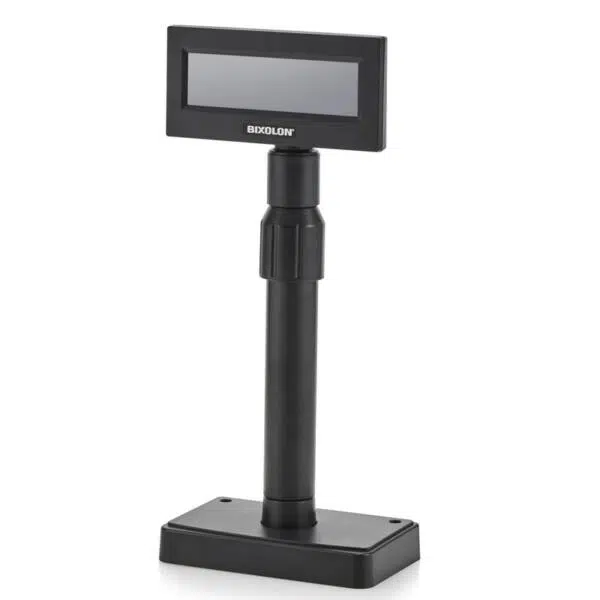

Bixolon BCD-2000, Display, USB, Dark Grey
HIGHLIGHTS
- Black
- 100 cd/m²
- Interface: USB 2.0
Bixolon BCD-2000, Display, USB, Dark Grey
BCD-2000K, STN LCD (Mono), USB, Dark-Gray
995,00kr. Excl. VAT
- Description
- Additional information
- Documents
Description
Bixolon BCD-2000. Display digits: 120 digits, Digit pitch: 0.03 mm, Display brightness: 100 cd/m². Product colour: Black, Tilt angle range: 0 – 13°, Height adjustment range: 167 – 521 mm. Interface: USB 2.0, Optional connectivity: Serial (RS-232), USB 2.0. Width: 162.5 mm, Depth: 97.6 mm, Height: 521 mm
Improved Performance
– Flexible character alignment on display (Horizontal, vertical, font space and line space)
– Adjust alignment (Center, left and right)
– Maximum 120 characters display
– Two character font available (8 x 16, 9 x 17)
– 250% enhanced reliability as compared BCD-1000/1100
– Simple download and display image by utility
Highly Flexible Design
– Adjustable display height
– Optional wall mount
– 13° five option angle adjustor and 360° screen rotation
– Easy connection to the host via USB cable pass-through design
Hardware Compatibility
– Easy plug and play USB set up
– Compatible with all major operating systems including Android™, iOS™ and Windows®
Additional information
| Communication | |
|---|---|
| Display digits | 120 digits |
| Display brightness | 100 cd/m² |
| Display size (HxV) | 127.2 x 33.9 mm |
| Illumination colour | Blue, White |
| Product colour | Black |
| Interface | USB 2.0 |
| Width | 162.5 mm |
| Depth | 97.6 mm |
| Height | 521 mm |
| Weight | 850 g |
| Digit pitch | 0.03 mm |
| Tilt angle range | 0 – 13° |
| Height adjustment range | 167 – 521 mm |
| Optional connectivity | Serial (RS-232), USB 2.0 |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 10 – 80% |
| Storage temperature (T-T) | -20 – 55 °C |
| Storage relative humidity (H-H) | 10 – 90% |
