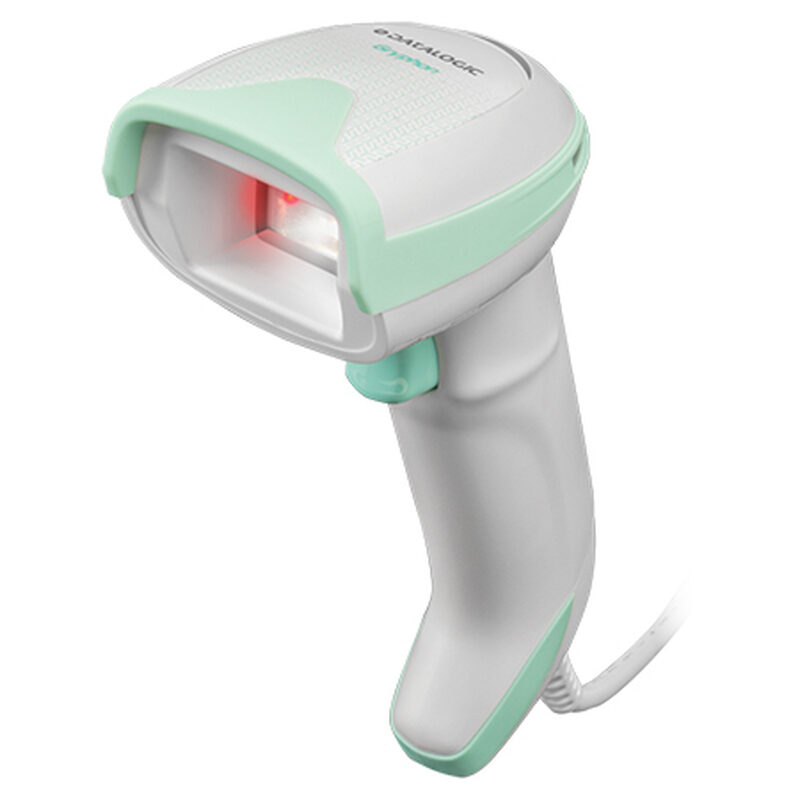

Datalogic Gryphon I GD4520, KIT

HIGHLIGHTS

  • Handheld bar code reader White
  • Scanner type: 1D/2D
  • Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, QR Code
  • 1280 x 800 pixels
  • Tilt reading angle: 0 - 360°
  • Wired Standard interfaces: USB
  • Power source type: DC

Datalogic Gryphon I GD4520, KIT

healthcare, 2D, HD, USB,
incl.: cable (USB, straight, 2 m, white)

Kit, 2D Mpixel Imager, USB-only, High Density, HC

2.105,00kr. Excl. VAT

SKU: GD4520-HCK1-HD Delfi nr.: 7401435
In stock – 2-5 days delivery

Description

Datalogic Gryphon I GD4520. Type: Handheld bar code reader, Scanner type: 1D/2D, 2D (matrix & stacked) barcodes supported: Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, QR Code. Connectivity technology: Wired, Standard interfaces: USB. Product colour: White, International Protection (IP) code: IP52, Protection features: Shock resistant. Power source type: DC, Input voltage: 5 V, Power consumption: 300 mA. Weight: 161 g, Width: 68 mm, Depth: 109 mm

Kit includes Scanner & USB Cable 90A052278.

The Gryphon™ 4500 2D series represents the premium range of hand held scanners from Datalogic. The GD4500 scanner is the desk (corded) version for general purpose applications.

The Gryphon I GD4500 imager stands out with an elegant and trendy new design, unchallenged ergonomics and features the most advanced Megapixel sensor with warm-white-illumination 2D technology for outstanding performance.

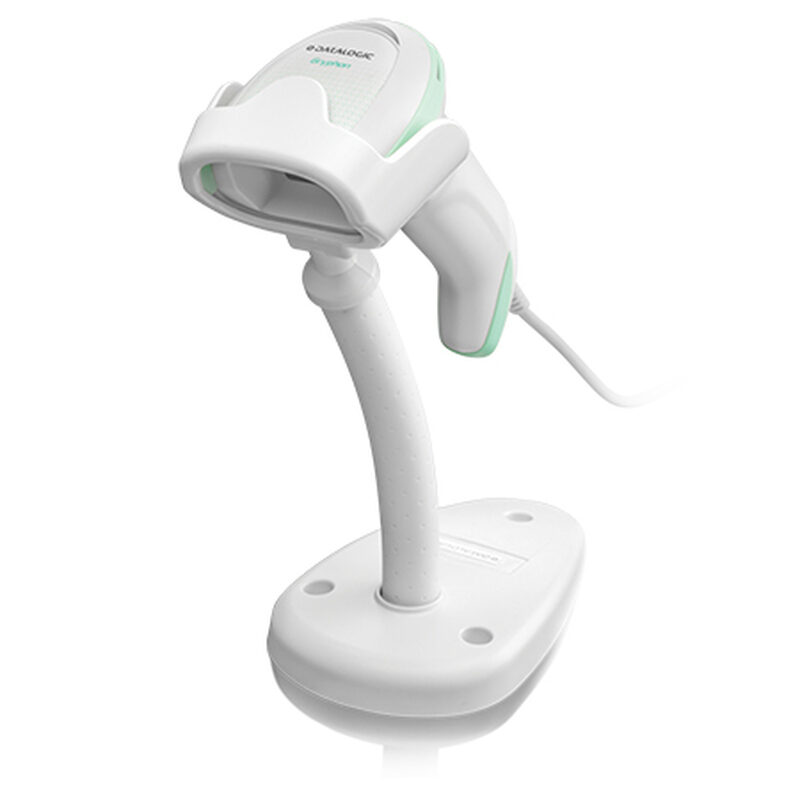

The Gryphon GD4500 imager takes advantage of Datalogic’s Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering both hand held and presentation reading options.

Datalogic’s reading technology with highly visible warm-white illumination is easier on the human eyes and reads colored labels much better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment.

The GD4500 imager is also available in a Healthcare model with disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.

Scan & Camera

Scanner type1D/2D
Scanengine1D, 2D
Optical sensor resolution (W x H)1280 x 800 pixels
Tilt reading angle0 - 360°
Pitch reading angle-65 - 65°
2D (matrix & stacked) barcodes supportedAztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, QR Code
Motion tolerance (cm/s)88.9
Image formats supportedTIFF, BMP, JPEG

Display

Built-in displayNo

Connectivity & Ports

ConnectionCabled
Standard interfacesUSB
Cables includedUSB

Processor & Memory

Input voltage5 V

Battery & Power

Power source typeDC
Power consumption300 mA

Dimensions, Weight & Design

Product colourWhite
Weight161 g
Width68 mm
Depth109 mm
Height166 mm
Wavelength650 nm

Operating Conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%
International Protection (IP) codeIP52

Certifications

Harmonized System (HS) code84716070
CertificationIEC 60825 Class 2
Compliance certificatesRoHS

Other specifications

TypeHandheld bar code reader
Light levels (direct sunlight)0 - 100000 lx
Connectivity technologyWired
Protection featuresShock resistant
