Datalogic PM9100, 1D, multi-IF, disp., kit (RS232), RB, black, yellow
HIGHLIGHTS
- Handheld bar code reader Black, Yellow
- Scanner type: 1D Sensor type: LED
- Codabar, Code 32, Code 39, Code 93, EAN 2, EAN 5, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, Interleaved 2 of 5, U.P.C.
- Tilt reading angle: -45 - 45°
- Standard interfaces: RS-232
- Power source type: Battery Lithium-Ion (Li-Ion) 2150 mAh
Datalogic PM9100, 1D, multi-IF, disp., kit (RS232), RB, black, yellow
1D, 433 MHz, 48×132, RS-232, RS-485, IP65, Li-Ion 2150 mAh, 212x110x74 mm, 435 g, RS-232
7.022,00kr. Excl. VAT
- Description
- Additional information
- Documents
Description

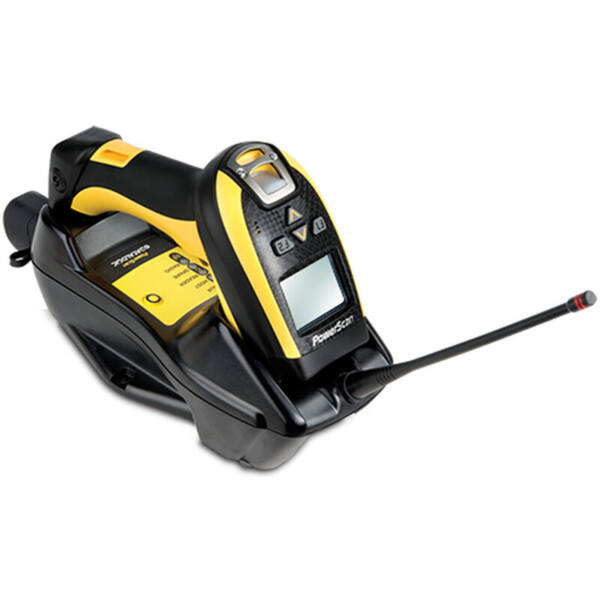

Datalogic PowerScan PM9100. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: LED. Standard interfaces: RS-232, Wireless range: 50 m, Operating frequency: 433 MHz. Product colour: Black, Yellow, International Protection (IP) code: IP65, Protection features: Shock resistant. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 2150 mAh. Weight: 435 g, Width: 212 mm, Depth: 110 mm
The PowerScan PM9100 linear imager is a cordless device offering state-of-the-art performance in an industrial product and features Datalogic’s STAR Cordless System narrow band radio. This linear imager introduces Datalogic’s new and innovative scanning technology, implementing a green scanning line which has the same definition of a laser beam with all the benefits of a linear imager.
The PM9100 imager also features Datalogic’s exclusive 3 Green Lights (3GL) for superior good read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle.
The PM9100 linear imager is available in 3 models: a basic model with no display or keypad; with display and 4-key keypad or with display and full alphanumeric keypad.
All models have multi-interface capabilities featuring the most popular interfaces; RS-232, Keyboard Wedge and USB.
3-Year Factory
| Display resolution | 48 x 132 pixels |
Display
| Built-in display | Yes |
| Backlight display | Yes |
Connectivity & Ports
| Standard interfaces | RS-232 |
| Cables included | RS-232 |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Linear (1D) barcodes supported | Codabar, Code 32, Code 39, Code 93, EAN 2, EAN 5, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, Interleaved 2 of 5, U.P.C. |
Wireless & Network
| Wireless range | 50 m |
| Operating frequency | 433 MHz |
Scan & Camera
| Scanner type | 1D |
| Tilt reading angle | -45 - 45° |
| Pitch reading angle | -75 - 75° |
| Yaw reading angle | -70 - 70° |
Processor & Memory
| Input voltage | 10 - 30 V |
| Storage temperature (T-T) | -40 - 70 °C |
Battery & Power
| Power source type | Battery |
| Power consumption | 500 mA |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 2150 mAh |
| Battery life | 4 h |
Dimensions, Weight & Design
| Product colour | Black, Yellow |
| Weight | 435 g |
| Width | 212 mm |
| Depth | 110 mm |
| Height | 74 mm |
| Base dimensions | 240 x 108 x 95 mm |
Operating Conditions
| Operating temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| International Protection (IP) code | IP65 |
Certifications
| Harmonized System (HS) code | 84716070 |
| Compliance certificates | RoHS |
Other specifications
| Type | Handheld bar code reader |
| Sensor type | LED |
| LED indicators | Yes |
| Protection features | Shock resistant |
| Keys quantity | 4 keys |
| Number of reads per charge | 50000 |
