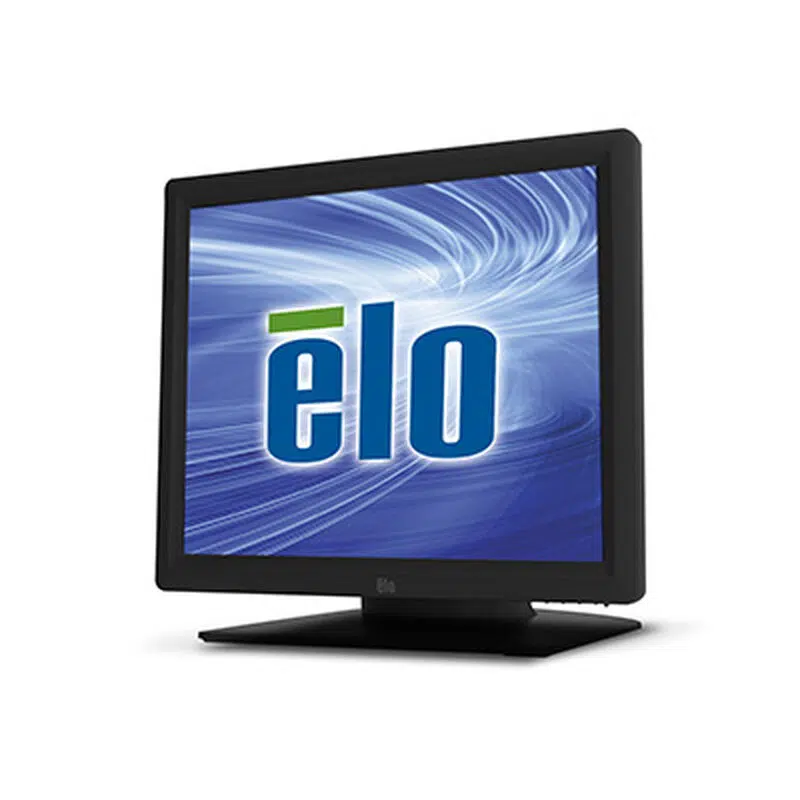

Elo 1717L, Touch Monitor, 17”, black
HIGHLIGHTS
- Black
- 43.2 cm (17") 1280 x 1024 pixels LCD
- Touchscreen 60 Hz 5 ms
- Description
- Additional information
Description
Elo Touch Solutions 1717L. Display diagonal: 43.2 cm (17″), Display technology: LCD, Display resolution: 1280 x 1024 pixels, Touchscreen. Product colour: Black
The 1717L touchmonitor is built to withstand the rigors of continuous public use with a rugged “built for touch” design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems systems are found.
The 1717L is offered with AccuTouch five-wire resistive technology, IntelliTouch surface acoustic wave, or iTouch pure glass surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. IntelliTouch and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.
The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
The 1717L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
3 Years
Display
| Display diagonal | 43.2 cm (17″) |
| Display technology | LCD |
| Display resolution | 1280 x 1024 pixels |
| Touchscreen | Yes |
| Contrast ratio (typical) | 800:1 |
| Display number of colours | 16.78 million colours |
| Screen shape | Flat |
| Panel mounting interface | 75 x 75 mm |
| Aspect ratio | 5:4 |
| Native aspect ratio | 5:4 |
| Native refresh rate | 60 Hz |
Wireless & Network
| Wall mountable | Yes |
Processor & Memory
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Battery & Power
| Power supply type | AC |
Dimensions, Weight & Design
| Product colour | Black |
| Weight (with stand) | 5.4 kg |
| Package width | 511 mm |
| Package depth | 233 mm |
| Package height | 510 mm |
| Package weight | 8.3 kg |
| Height (without stand) | 215 mm |
| Depth (without stand) | 361 mm |
Operating Conditions
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Mean time between failures (MTBF) | 50000 h |
Certifications
| Harmonized System (HS) code | 85285210 |
Other specifications
| Response time | 5 ms |
