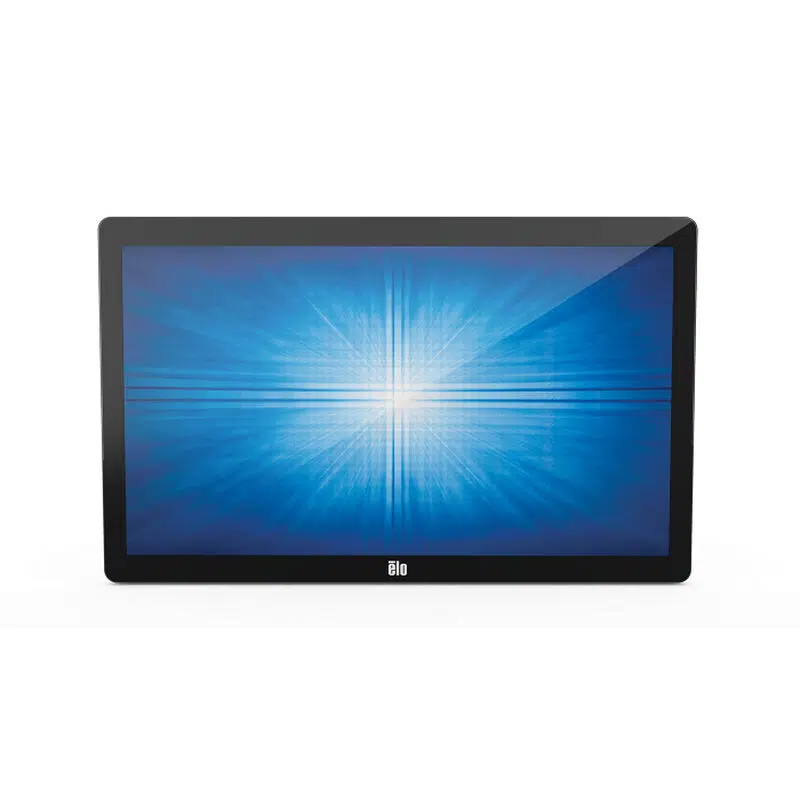

Elo 2202L 22-inch wide LCD Monitor, Full HD, Projected Capacitive 10-touch, USB Controller, Clear,

HIGHLIGHTS

  • Black
  • 54.6 cm (21.5") 1920 x 1080 pixels LCD 250 cd/m²
  • Touchscreen 25 ms
  • Built-in speaker(s) 4 W

Elo 2202L 22-inch wide LCD Monitor, Full HD, Projected Capacitive 10-touch, USB Controller, Clear,

Zero-bezel, No Stand, VGA and HDMI video interface
Non returnable

21.5″, TFT LCD, 1920 x 1080, PCAP, 16:9, 1000:1, 25 ms, 2 x 2 W, VGA, HDMI, USB, Black

481,00  Excl. VAT

SKU: E126096 Delfi nr.: 7405817
In stock – 2-5 days delivery

Description

Elo Touch Solutions 2202L. Display diagonal: 54.6 cm (21.5″), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD, Touchscreen. Product colour: Black

The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.

Brilliant Displays from 19 to 27-inches
The clear glass touchscreens with Elo’s industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.

Well-Suited for…
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.

Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

One for You
One for Your Customers.Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.

Mount with Flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.

Built-to-Last
The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build and are responsible for the complete solution,with touch integrated from the start.

3-year

Scan & Camera

Built-in cameraNo

Display

Display diagonal54.6 cm (21.5″)
Display technologyLCD
Display resolution1920 x 1080 pixels
Display brightness250 cd/m²
TouchscreenYes
LED backlightYes
Touchscreen technologyProjected capacitive system
Contrast ratio (typical)1000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Display number of colours16.78 million colours
HDMI ports quantity1
VESA mountingYes
Screen shapeFlat
Panel mounting interface100 x 100 mm
On Screen Display (OSD) languagesSimplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Russian
Maximum refresh rate60 Hz
Display viewable area (HxV)467.06 x 267.78 mm
HD typeFull HD
Panel typeTFT
Native aspect ratio16:9
Display diagonal (metric)54.61 cm
Supported graphics resolutions800 x 500, 640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+)
Number of OSD languages10

Connectivity & Ports

Cables includedAC, Audio (3.5mm), HDMI, USB, VGA
Micro-USB ports quantity4
Headphone outputs1

Wireless & Network

Wall mountableYes

Audio

Built-in speaker(s)Yes
RMS rated power4 W

Processor & Memory

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Battery & Power

Power consumption (typical)22.5 W
Power consumption (standby)0.8 W
Power consumption (off)0.35 W
Power supply typeAC/DC
AC adapter includedYes

Dimensions, Weight & Design

Product colourBlack
Package width633 mm
Package depth196 mm
Package height450 mm
Package weight7.2 kg
Weight (without stand)5.2 kg
Stand includedNo
Height (without stand)326.9 mm
Depth (without stand)42.7 mm

Operating Conditions

International Protection (IP) codeIPX1
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)20 - 80%
Storage temperature (T-T)-20 - 60 °C
Storage relative humidity (H-H)10 - 95%
Mean time between failures (MTBF)50000 h
Operating altitude0 - 3.048 m
Non-operating altitude0 - 12.192 m

Certifications

Harmonized System (HS) code85285210
CertificationCanada (CUL, IC), China CCC, Europe CE, Korea KCC, Taiwan BSMI, United States (FCC, UL), Japan VCCI, International CB, Australia RCM, Russia EAC, Mexico CoC, India BIS

In the box

Quick start guideYes

Other specifications

Response time25 ms
Number of simultaneous touchpoints10
Digital horizontal frequency30 - 82 kHz
Digital vertical frequency50 - 75 Hz
