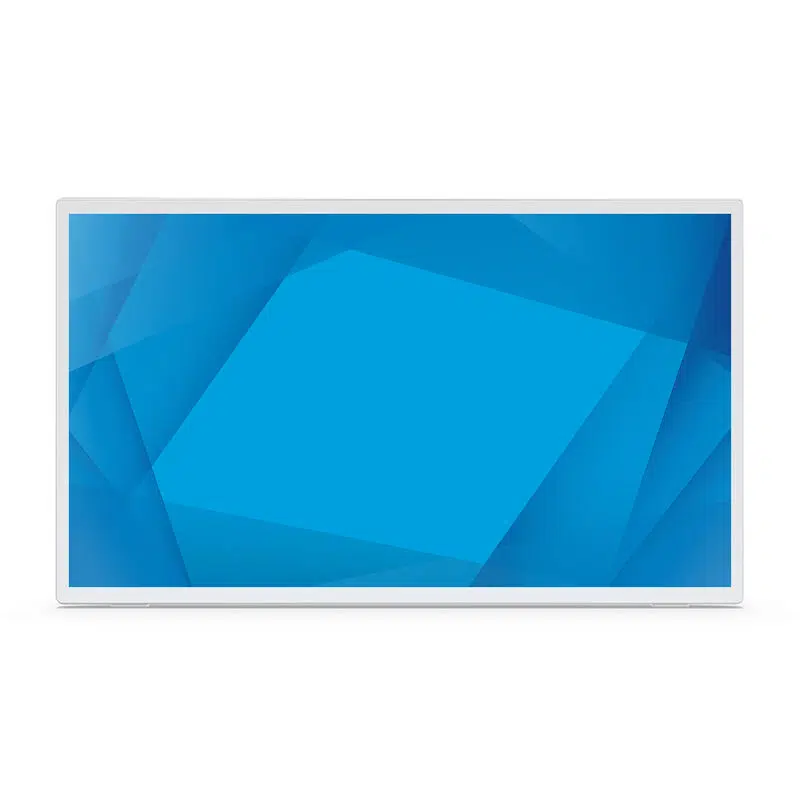

Elo 2770L 27-inch wide LCD Monitor, Full HD, Projected Capacitive 10-touch, USB Controller,
HIGHLIGHTS
- Minimalistic design to fit any space
- From 20 degrees to 70 degrees, angle the display where you want it
- Increase viewing comfort with low blue light and flicker free features
Elo 2770L 27-inch wide LCD Monitor, Full HD, Projected Capacitive 10-touch, USB Controller,
27”, TFT LCD, 16:9, 1920 x 1080 @ 50/60Hz, AC Input, Audio in/out, VGA, HDMI, DisplayPort, USB 2.0 Type B, 2x USB 2.0 Type A, PCAP, 626.2 x 372.8 x 43.8 mm, 6.3 kg, White, anti-glare
5.893,00kr. Excl. VAT
- Description
- Additional information
- Documents
Description
Elo Touch Solutions Elo 2770L. Display diagonal: 68.6 cm (27″), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 14 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 2.0. VESA mounting. Product colour: White
The bezel just got smaller.
The 2770L 27” touchscreen offers up to a 70% reduction in the bezel compared to similar models.
Built-in speakers and integrated IO.
Place it on a desktop, mount it on a wall or configure the 2770L to fit your space with VESA-compatibility. Built-in speakers and integrated IO.
Durable, energy efficient touchscreen.
Scratch-resistant glass surface. IK07 impact resistant. ES8.0 certified for greater energy efficiency.
Navigate the OSD directly on the touchscreen.
We have made it easier to manage your On-Screen Display (OSD) controls – Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.
Scan & Camera
| Built-in camera | No |
Media & Labels
| Market positioning | Business |
Display
| Display diagonal | 68.6 cm (27″) |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | Yes |
| Panel type | TFT |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 60 Hz |
| Display number of colours | 16.7 million colours |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Anti-glare screen | Yes |
| Supported graphics resolutions | 640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 500, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 18 kWh |
| Energy efficiency scale | A to G |
| DisplayPorts quantity | 1 |
| Display brightness (peak) | 300 cd/m² |
| Display brightness (typical) | 270 cd/m² |
Connectivity & Ports
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Built-in USB hub | Yes |
| USB upstream port type | USB Type-A, USB Type-B |
| USB Touch ports quantity | 1 |
| USB hub version | 2.0 |
| Number of USB Type-B upstream ports quantity | 1 |
| USB Type-A downstream ports quantity | 2 |
| Cable lock slot | No |
Wireless & Network
| Communication | Ethernet |
Audio
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
Processor & Memory
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Battery & Power
| Power consumption (typical) | 19 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.16 W |
| Power consumption (PowerSave) | 16.5 W |
| Power supply type | External |
Dimensions, Weight & Design
| Product colour | White |
| Width (without stand) | 626.2 mm |
| Depth (without stand) | 372.8 mm |
| Height (without stand) | 43.8 mm |
| Weight (without stand) | 6.3 kg |
| Package width | 703 mm |
| Package depth | 136 mm |
| Package height | 489 mm |
| Package weight | 9.45 kg |
| Height adjustment | No |
Operating Conditions
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 95% |
Other specifications
| HD type | Full HD |
| Number of simultaneous touchpoints | 10 |
| Response time | 14 ms |
| Digital horizontal frequency | 30 - 82 kHz |
| Digital vertical frequency | 50 - 75 Hz |
