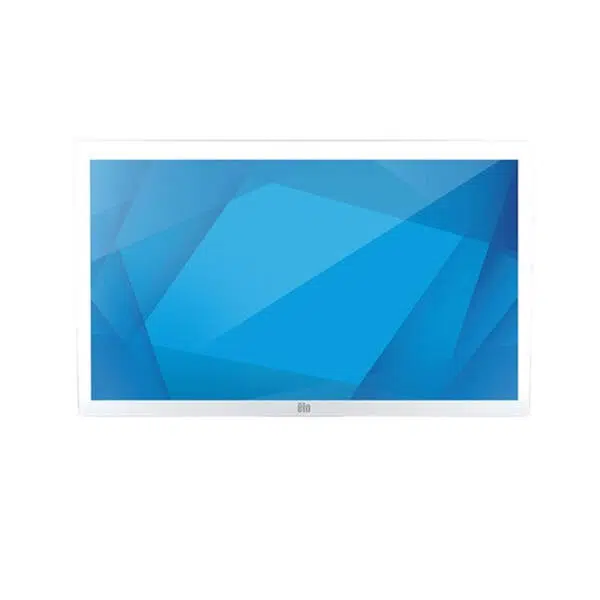

Elo 2703LM 27-inch wide LCD Medical Grade Touch Monitor, Full HD, Projected Capacitive 10-touch,
HIGHLIGHTS
- Nurse Station
- Patient Rooms
- Laboratory
- Pharmacy
- Operating Theatres
- Medical Carts
Elo 2703LM 27-inch wide LCD Medical Grade Touch Monitor, Full HD, Projected Capacitive 10-touch,
7.676,00kr. Excl. VAT
27″, 1920 x 1080, 16:9, TFT, 225 nits, HDMI, VGA, USB, White
- Description
- Additional information
- Documents
Description
Elo Touch Solutions 2703LM. Display diagonal: 68.6 cm (27″), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 14 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: White
DICOM Medical Grade Touchscreen Monitors
The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.
Easy to Clean
Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays.
DICOM 14 – Designed for Consistent Image Review
Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.
Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.
Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.
Purpose-built for Healthcare
The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.
Medical Device Ready
With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.
Configurability Made Easy
Flexible Mounting
Every monitor is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts.
Privacy Matters
Optional privacy filters offer an additional safeguard when reviewing private health information or sensitive administrative data.
Ergonomic
Optional handles can be added to easily move or rotate the display to a comfortable orientation.
3 Years
Additional information
| Display diagonal | 68.6 cm (27") |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Touchscreen | Yes |
| HD type | Full HD |
| Panel type | TFT |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 70 Hz |
| Display number of colours | 16.7 million colours |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Response time | 14 ms |
| Anti-glare screen | Yes |
| Supported graphics resolutions | 640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 500, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Viewable size, horizontal | 59.8 cm |
| Viewable size, vertical | 33.6 cm |
| Display brightness | 300 cd/m² |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| RMS rated power | 2 W |
| Market positioning | Medical |
| Product colour | White |
| International Protection (IP) code | IP54 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DC-in jack | Yes |
| VESA mounting | Yes |
| Wall mountable | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 21 kWh |
| Power consumption (typical) | 17.37 W |
| Power consumption (standby) | 1 W |
| Power consumption (off) | 0.24 W |
| Energy efficiency scale | A to G |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage relative humidity (H-H) | 10 – 95% |
| Cables included | HDMI, USB, VGA |
| Width (without stand) | 394.1 mm |
| Depth (without stand) | 44.9 mm |
| Height (without stand) | 647.6 mm |
| Weight (without stand) | 7.13 kg |
| Package width | 520 mm |
| Package depth | 187 mm |
| Package height | 770 mm |
| Package weight | 10.4 kg |
| Horizontal scan range | 30 – 82 kHz |
| Vertical scan range | 50 – 75 Hz |
| Certification | UL: AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012/IEC 60601-1 Ed. 3.1 cUL: (CAN/CSA-C22.2 NO. 60601-1:14 /IEC60601-1 Ed. 3.1CB: IEC 60601-1:2005+A1:2012 (Ed. 3.1)C |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 / 60 Hz |
| Mean time between failures (MTBF) | 50000 h |
| Display viewable area (HxV) | 597.88 x 336.31 mm |
| Power consumption (sleep) | 1.006 W |
| Number of OSD languages | 10 |
| Display diagonal (metric) | 68.6 cm |
| USB version | 2.0 |
| Headphone connectivity | 3.5 mm |
| LED indicators | Power |
| Power consumption (max) | 22.41 W |
| Sustainability compliance | Yes |
| Placement supported | Indoor |
| USB connector type | Micro-USB, USB Type-A, USB Type-B |
| Active display area (W x H) | 597.88 x 336.31 mm |
| USB 2.0 ports quantity | 1 |
| USB ports quantity | 6 |
| Box contents | TouchmonitorQuick Install Guide3x Tie wrapsVGA cableHDMI cableTouch USB cableAudio cablePower brick (E323104)NA Power cableEU Power cableEEI LabelDICOM calibration sheet4 x VESA Screws (only for E3816 |
| European Product Registry for Energy Labelling (EPREL) code | 361244 |
| Compliance certificates | BIS, BSMI, CB, CE, China Compulsory Certification (CCC), China RoHS, EAC, Federal Communications Commission (FCC), KCC, RCM, REACH, RoHS, UKCA, VCCI, WEEE, cUL |
