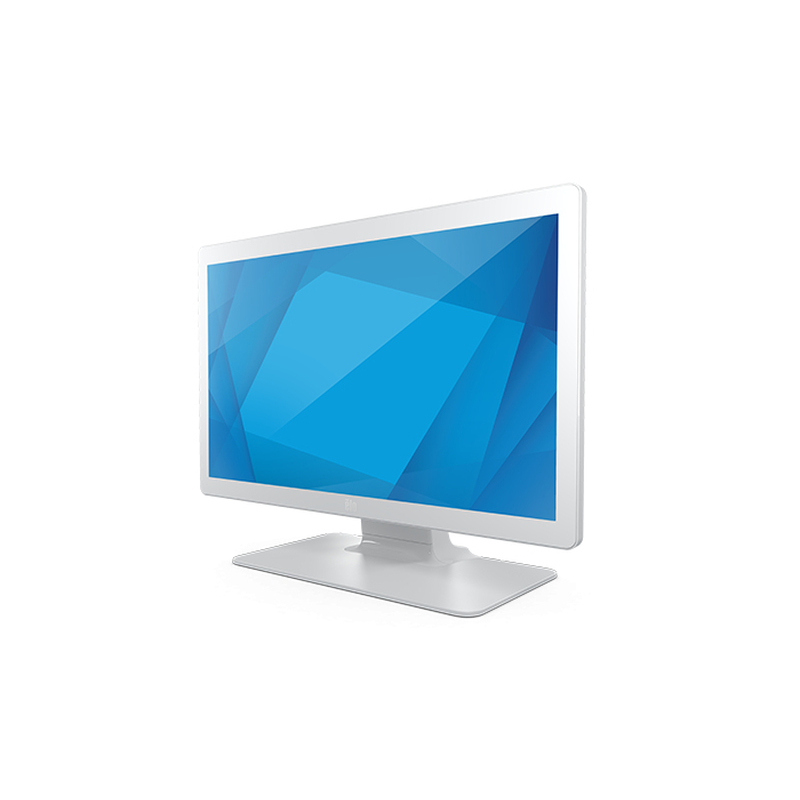

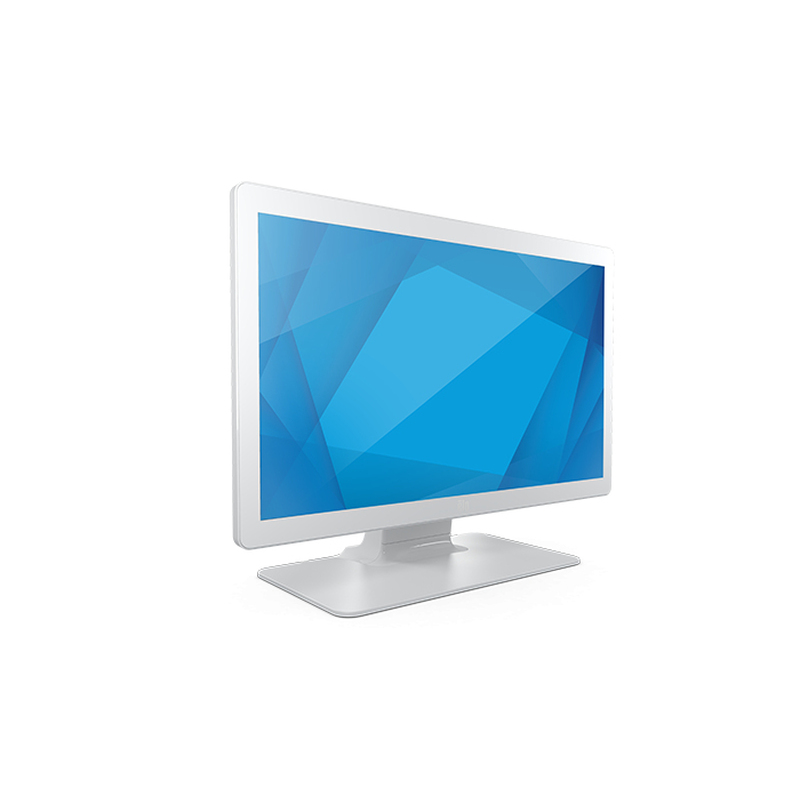

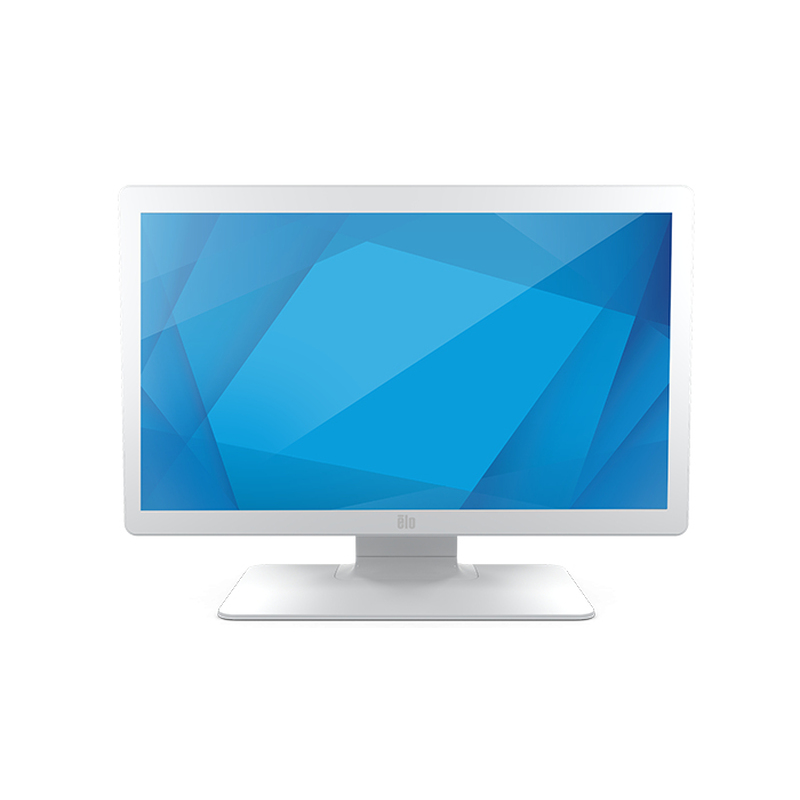

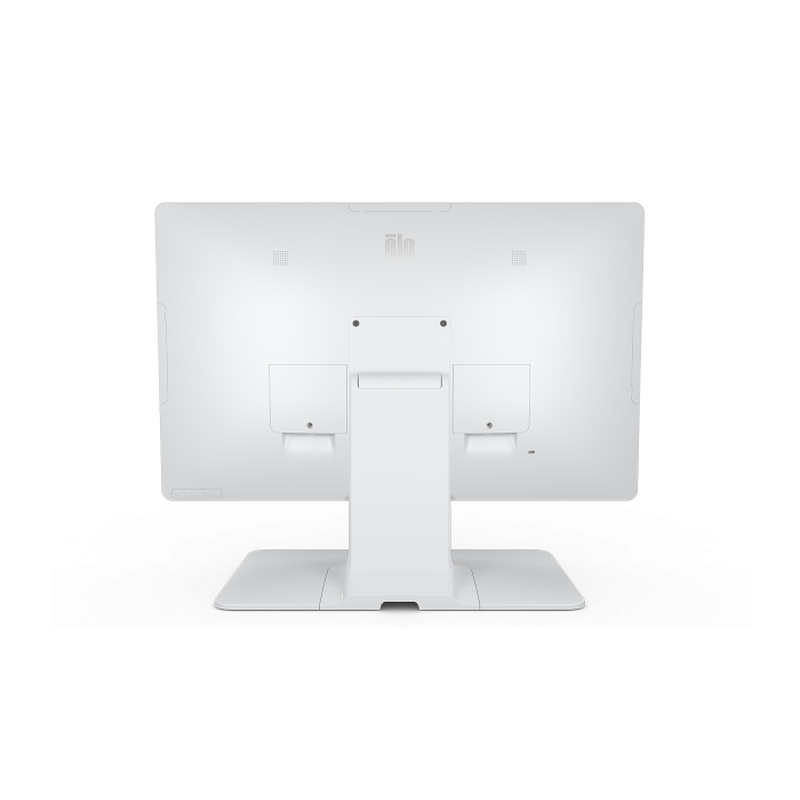

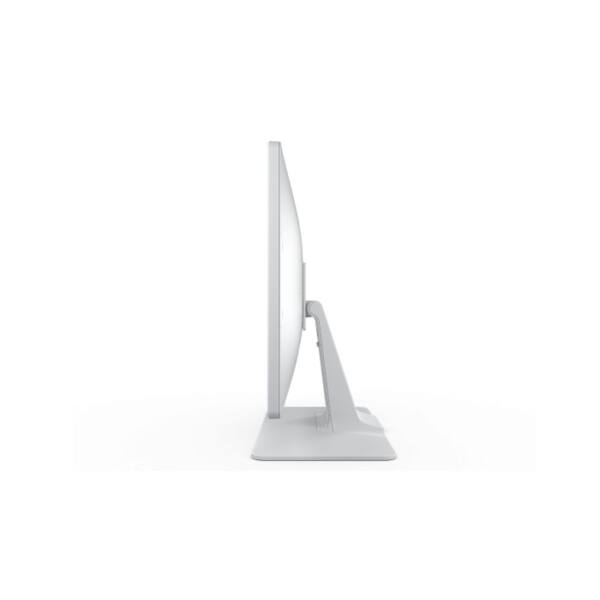

Elo Touch Solutions 03-Series, Projected Capacitive, 10 TP, Full HD, USB, kit (USB), white
HIGHLIGHTS
- White
- 60.5 cm (23.8") 1920 x 1080 pixels LCD 225 cd/m²
- Touchscreen 16 ms
- Built-in speaker(s) 2 W
Elo Touch Solutions 03-Series, Projected Capacitive, 10 TP, Full HD, USB, kit (USB), white
23.8″, 1920 x 1080, 16:9, TFT, 225 nits, HDMI, VGA, USB, White
1.094,00 € Excl. VAT
- Description
- Additional information
- Documents
Description
Elo Touch Solutions 2403LM. Display diagonal: 60.5 cm (23.8″), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 225 cd/m², HD type: Full HD, Touchscreen. Product colour: White
DICOM Medical Grade Touchscreen Monitors
The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.
DICOM 14 – Designed for Consistent Image Review
Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.
Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.
Purpose-built for Healthcare
The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.
Medical Device Ready
With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.
3 Years
Scan & Camera
| Built-in camera | No |
Display
| Display diagonal | 60.5 cm (23.8″) |
| Display technology | LCD |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 225 cd/m² |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| HDMI ports quantity | 1 |
| VESA mounting | Yes |
| Screen shape | Flat |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Maximum refresh rate | 70 Hz |
| Display viewable area (HxV) | 527.04 x 296.46 mm |
| HD type | Full HD |
| Panel type | TFT |
| Native aspect ratio | 16:9 |
| Display diagonal (metric) | 60.5 cm |
| Supported graphics resolutions | 640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 500, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), |
| Number of OSD languages | 8 |
| On Screen Display (OSD) | Yes |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 18 kWh |
| Energy efficiency scale | A to G |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Anti-glare screen | Yes |
Connectivity & Ports
| Cables included | HDMI, USB, VGA |
Wireless & Network
| Wall mountable | Yes |
Audio
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
Battery & Power
| Power consumption (typical) | 15.68 W |
| Power consumption (standby) | 1.09 W |
| Power consumption (off) | 0.24 W |
| Power supply type | DC |
| Power consumption (max) | 17.33 W |
Dimensions, Weight & Design
| Product colour | White |
| Depth (with stand) | 233 mm |
| Height (with stand) | 432.9 mm |
| Weight (with stand) | 9.8 kg |
| Package width | 680 mm |
| Weight (without stand) | 6.69 kg |
Operating Conditions
| International Protection (IP) code | IP54 |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Mean time between failures (MTBF) | 50000 h |
Certifications
| Compliance certificates | RoHS |
Other specifications
| Response time | 16 ms |
| Number of simultaneous touchpoints | 10 |
| LED indicators | Power |
