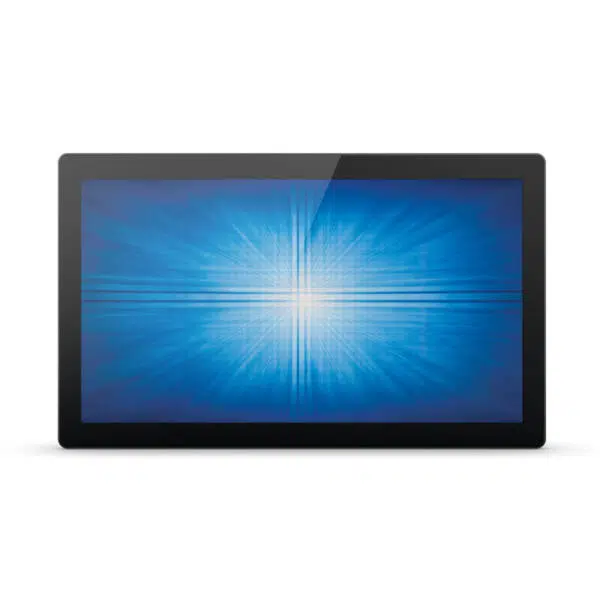

Elo 2295L 21.5-inch wide FHD LCD WVA (400nit LED Backlight),

HIGHLIGHTS

  • Built-in thermal protection via internal thermal sensor and firmware
  • Compliant with UL-60950, IK-07 impact testing and GLI ESD 27kV air / 8kV contact
  • OEM life cycle support for component and product transitioning
  • Well-suited for 24/7 use in any high-traffic or harsh environment
  • Designed and tested to ensure reliability and long life in the field

Elo 2295L 21.5-inch wide FHD LCD WVA (400nit LED Backlight),

Open Frame, Projected Capacitive 10 Touch, HDMI,
Zero-Bezel, VGA & Display Port, USB touch,

2295L, 21.5″, TFT LCD, PCAP, 1920×1080, 16:9, 14 ms, USB, RJ-45, HDMI, VGA, DP, 516x311x46.9 mm

5.679,00kr. Excl. VAT

SKU: E146083 Delfi nr.: 7405220
In stock – 2-5 days delivery

Description

Elo Touch Solutions 2295L. Display diagonal: 54.6 cm (21.5″), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 400 cd/m², HD type: Full HD, Touchscreen. Product colour: Black

Elo’s new interactive open frames deliver the sleek design the 90-Series is known for with outstanding brightness ranging from 400 to 1000 NITs. Available in sizes from 22 to 27 inches, the brilliant, interactive, TouchPro® PCAP displays offer edge-to-edge glass for ease of integration and up to 10 simultaneous touches for an enhanced, tablet-like experience. With proven Elo expertise and built-in reliability, the industrial-grade displays provide outstanding image clarity and light transmissivity, as well as stable drift-free operation for accurate touch responses. Elo’s brighter open frames offer the versatility needed for commercial kiosk applications from industrial automation and gaming to self-service and retail.

Brighten Up Your Kiosks
Create a design-in solution that will capture audiences, attract integrators, and differentiate you from the competition.

Enabling Partners to Build Smarter Kiosks
With EloView® and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.

Flexibility for Your Install
Our commercial-grade open frames can be mounted in landscape, portrait and face-up orientations, providing optimal flexibility for mounting in any table, kiosk or cabinet design. Whether viewing straight on or at an angle, close-up or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.

Touch Thru Glass Enabled with PCAP
Our TouchPro® PCAP technology supports touch-thru functionality for installations requiring a front layer of glass up to 6 mm thick or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully encased behind glass, our robust PCAP open frames are purpose-built for durability in various applications and environments — from self-service kiosks or highly used gaming cabinets to industrial machines performing in harsh environments.

Built for Industrial & Commercial Use
We pride ourselves on being a leading manufacturer in the market — designing and building the complete solution with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product, and to maximize your ROI.

3-year

Scan & Camera

Horizontal scan range30 - 82 kHz
Vertical scan range50 - 75 Hz
Built-in cameraNo

Display

Display diagonal54.6 cm (21.5″)
Display technologyLED
Display resolution1920 x 1080 pixels
Display brightness400 cd/m²
TouchscreenYes
Touchscreen technologyProjected capacitive system
Contrast ratio (typical)1000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Display number of colours16.78 million colours
HDMI ports quantity1
VESA mountingYes
Screen shapeFlat
Panel mounting interface100 x 100 mm
Maximum refresh rate60 Hz
Display viewable area (HxV)476.06 x 267.79 mm
HD typeFull HD
Panel typeTFT
Native aspect ratio16:9
Supported graphics resolutions640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
HDMI version1.3
DisplayPorts quantity1

Connectivity & Ports

Cables includedHDMI, USB, VGA

Wireless & Network

Wall mountableYes

Audio

Built-in microphoneNo

Processor & Memory

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Battery & Power

Power consumption (typical)25 W
Power consumption (standby)0.5 W
Power consumption (off)0.2 W
Power supply typeAC

Dimensions, Weight & Design

Product colourBlack
Package width620 mm
Package depth190 mm
Package height423 mm
Package weight8.6 kg
Weight (without stand)5.41 kg
Height (without stand)311 mm
Depth (without stand)46.9 mm

Operating Conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)20 - 80%
Storage temperature (T-T)-20 - 60 °C
Storage relative humidity (H-H)10 - 95%
Mean time between failures (MTBF)50000 h

Certifications

Harmonized System (HS) code85285210
CertificationRCM; cUL, IC; CCC; CE TUV; VCCI; KCC; CoC; BSMI; UL, FCC; CB; WEEE
Compliance certificatesRoHS

In the box

Quick start guideYes

Other specifications

Response time14 ms
Number of simultaneous touchpoints10
Full HDYes
