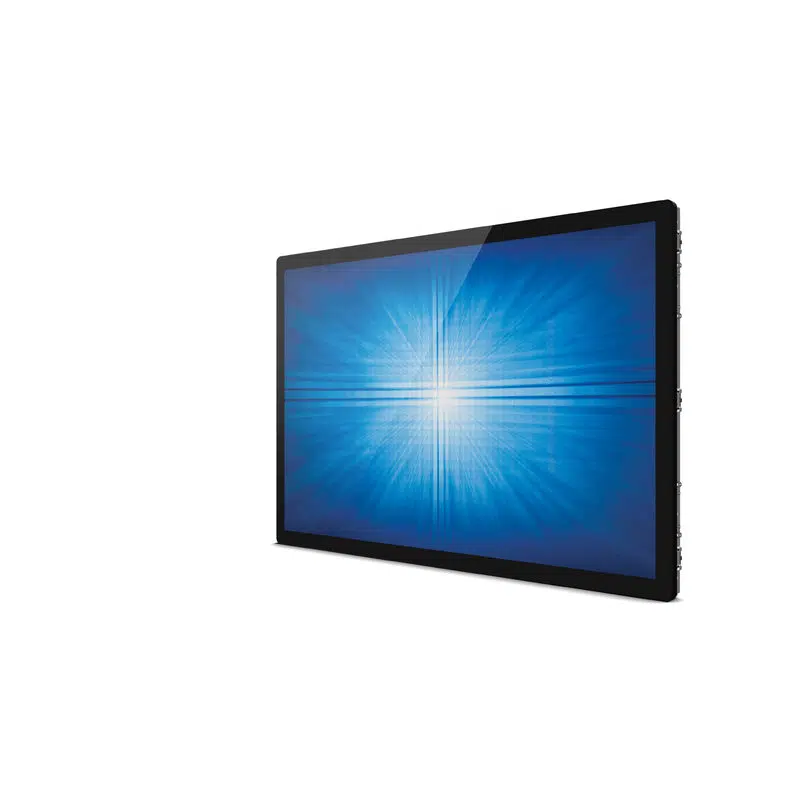

Elo 3263L, 81 cm (32”), Projected Capacitive, Full HD, USB, kit
Elo 3263L, 81 cm (32”), Projected Capacitive, Full HD, USB, kit
31.5”, TFT LCD (LED), PCAP, clear, 16:9, 1920 x 1080 @ 60hz, 8 ms, HDMI, VGA, 747.3×452.7×55 mm
6.681,00kr.
- Description
- Additional information
Description
Elo Touch Solutions 3263L. Display diagonal: 80 cm (31.5″), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 500 cd/m², HD type: Full HD, Touchscreen. Product colour: Black
The perfect touchscreen for any enclosure.
Elo’s 3263L 32-inch full HD open-frame delivers a state-of-the-art slim form factor designed for easy integration into enclosures and kiosks. Whether for self-order and self-checkout kiosks or industrial controls, operating room control boards and wayfinding solutions, Elo’s commercial-grade interactive displays offer the versatility to add touch to your solution.
Brilliant, interactive TouchPro PCAP display.
The 3263L offers anti-glare or anti-friction models with edge-to-edge glass and up to 40 simultaneous touches for an enhanced, tablet-like experience.
Designed for easy integration.
Mount the 3263L touchscreen monitor in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design.
Get the viewing experience you want to see.
Whether viewing straight on or at an angle, close-up or from a distance, Elo’s touchscreen displays offer optimal clarity for the viewing experience.
Place your touchscreen behind an extra layer of protection.
For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo’s TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.
3-year
Additional information
| Display diagonal | 80 cm (31.5″) |
|---|---|
| Display technology | LED |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 500 cd/m² |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Response time | 8 ms |
| Contrast ratio (typical) | 3000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| HDMI ports quantity | 2 |
| Product colour | Black |
| VESA mounting | Yes |
| Screen shape | Flat |
| Panel mounting interface | 400 x 200 mm |
| Power consumption (typical) | 44.3 W |
| Power consumption (standby) | 0.61 W |
| Power consumption (off) | 0.2 W |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Package width | 1000 mm |
| Package depth | 306 mm |
| Package height | 680 mm |
| Package weight | 17 kg |
| Cables included | AC, HDMI, USB, VGA |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -20 – 60 °C |
| Storage relative humidity (H-H) | 10 – 90% |
| Maximum refresh rate | 60 Hz |
| Weight (without stand) | 11 kg |
| Built-in camera | No |
| HD type | Full HD |
| Panel type | TFT |
| Number of simultaneous touchpoints | 40 |
| Native aspect ratio | 16:9 |
| Mean time between failures (MTBF) | 50000 h |
| Wall mountable | Yes |
| Digital horizontal frequency | 31.5 – 80 kHz |
| Digital vertical frequency | 47 – 63 Hz |
| Height (without stand) | 452.7 mm |
| Depth (without stand) | 55 mm |
| HDMI version | 1.4 |
| Built-in microphone | No |
| Ethernet LAN (RJ-45) ports | 1 |
| On Screen Display (OSD) | Yes |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 26 kWh |
| Energy efficiency scale | A to G |
| Viewable size, horizontal | 69.8 cm |
| Viewable size, vertical | 39.3 cm |
| HDCP | Yes |
| Anti-glare screen | Yes |
