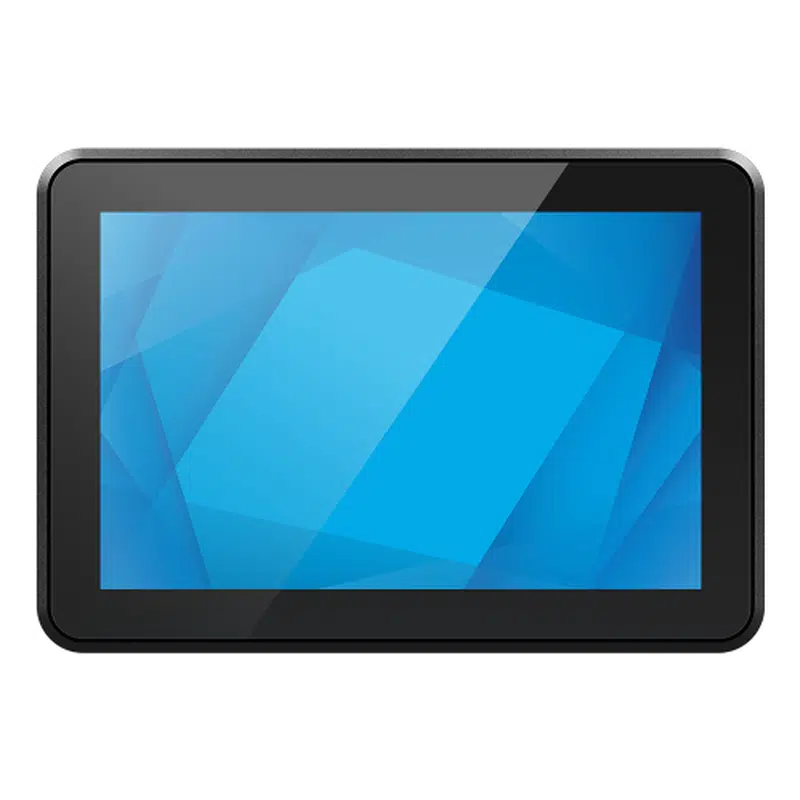

Elo Touch Solutions Open-Frame (90L/63L/64L Series), 17.8cm (7”), Projected Capacitive, 10 TP, USB, USB-C, kit (USB), black
HIGHLIGHTS
- Indoor Digital signage flat panel Black
- 17.8 cm (7") 1280 x 800 pixels LED 400 cd/m²
- Touchscreen 60 Hz 40 ms
Elo Touch Solutions Open-Frame (90L/63L/64L Series), 17.8cm (7”), Projected Capacitive, 10 TP, USB, USB-C, kit (USB), black
7”, 16:9, 1280 x 800, 16:10, 40 ms, HDMI
2.168,00kr. Excl. VAT
- Description
- Additional information
- Documents
Description
Elo Touch Solutions 0764L. Product design: Digital signage flat panel. Display diagonal: 17.8 cm (7″), Display technology: LED, Display resolution: 1280 x 800 pixels, Display brightness: 400 cd/m², Touchscreen. Product colour: Black
0764L 7-inch Industrial‑Grade
Open Frame Touch Display
Elo’s 0764L 7-inch HD open-frame delivers a brilliant, industrial-grade touchscreen monitor designed for easy integration into enclosures. With sleek, narrow borders and a modern form factor, the 0764L is well-suited for industrial controls, HMI, warehouse automation, gaming and more.
Brilliant, optically-bonded
TouchPro™ PCAP display.
The 7-inch 0764L optically-bonded display offers an enhanced, 10-touch
tablet-like experience with the durability, touch performance and premium
optics required for industrial and commercial applications.
Enable power, video and touch
with a single USB‑C cable.
Durable, energy
efficient touchscreen.
Navigate the OSD directly
on the touchscreen.
We have made it easier to manage your On-Screen Display (OSD) controls –
Now you can use the touchscreen or the controls you are used to on the rear
side of the monitor.
Touch thru glass enabled with PCAP.
For installations that require specific IP ratings or protection from vandalism and
harsh environments, Elo’s TouchPro PCAP displays offer touch thru capability. With
touch thru technology, the display can be mounted behind a front layer of glass up
to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.
Designed for easy integration.
Elo’s 7-inch touchscreen monitor can be mounted in landscape, portrait and
upward facing orientations, providing optimal flexibility for integrating in any
counter, kiosk or cabinet design. Whether viewing up close or from a distance, our
optically bonded display offers what you need while maintaining optimal clarity for
the viewing experience.
Computing power that
scales with a single cable.
With the Elo Backpack you get a powerful, commercial-grade Android compute
engine that can easily connect to the display with a single USB-C. Boasting a small
footprint in both size and weight, the Elo Backpack can secure inside any kiosk with
the built-in VESA mount. Scaling Elo’s commercial Android platform across sizes and
form factors has never been easier.
3 years
Display
| Display diagonal | 17.8 cm (7″) |
| Display technology | LED |
| Display resolution | 1280 x 800 pixels |
| Display brightness | 400 cd/m² |
| Touchscreen | Yes |
| LED backlight | Yes |
| Touchscreen technology | Projected capacitive system |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 176° |
| Viewing angle, vertical | 176° |
| HDMI ports quantity | 1 |
| VESA mounting | Yes |
| Screen shape | Flat |
| Panel mounting interface | 75 x 75 mm |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Aspect ratio | 16:10 |
| Panel type | TFT-LCD |
| Native aspect ratio | 16:9 |
| Number of OSD languages | 8 |
| DisplayPorts quantity | 1 |
| On Screen Display (OSD) | Yes |
| Energy efficiency class (SDR) | D |
| Energy consumption (SDR) per 1000 hours | 8 kWh |
| Energy efficiency scale | A to G |
| Anti-glare screen | Yes |
| Native refresh rate | 60 Hz |
| Active display area (W x H) | 149.76 x 93.6 mm |
| Display width | 176.2 mm |
| Display depth | 31.7 mm |
| Display height | 120 mm |
| Display weight | 660 g |
| Number of displays | 1 |
Connectivity & Ports
| Placement supported | Indoor |
| USB port | Yes |
| USB ports quantity | 1 |
| Ethernet LAN | No |
| USB connector type | USB Type-C |
Audio
| Built-in speaker(s) | No |
Processor & Memory
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Processor manufacturer | Intel |
| Processor cores | 2 |
| Internal memory | 4 GB |
| Processor family | Intel® Celeron® |
| Processor model | G4900T |
| Processor frequency | 2.9 GHz |
| On-board graphics card model | Intel® UHD Graphics 610 |
| Discrete graphics card model | Not available |
Battery & Power
| Power consumption (typical) | 8 W |
| Power consumption (off) | 0.15 W |
| Power consumption (sleep) | 0.8 W |
Dimensions, Weight & Design
| Product colour | Black |
| Package width | 232 mm |
| Package depth | 95 mm |
| Package height | 170 mm |
| Package weight | 1.3 kg |
| Product design | Digital signage flat panel |
| Quantity per pack | 1 pc(s) |
Operating Conditions
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Mean time between failures (MTBF) | 50000 h |
Certifications
| Compliance certificates | CE, Federal Communications Commission (FCC), CB, UKCA, CCC, China Compulsory Certification (CCC), VCCI, Norma Oficial Mexicana (NOM) |
Other specifications
| Response time | 40 ms |
| Number of simultaneous touchpoints | 10 |
| Multi-touch | Yes |
| Orientation | Horizontal/Vertical |
