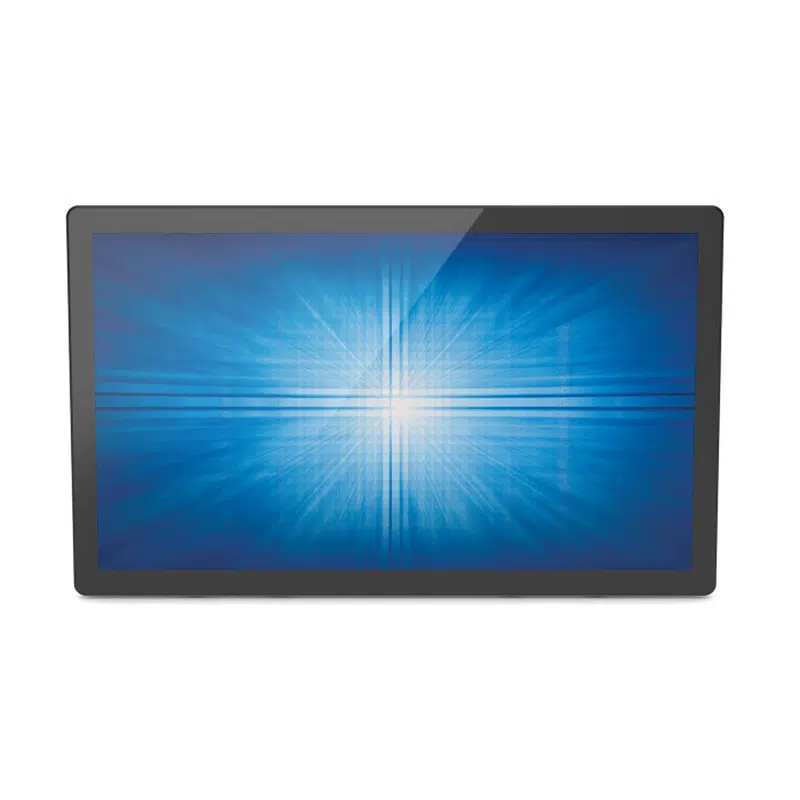

Elo 2495L, Projected Capacitive, Full HD, USB, kit (USB)

HIGHLIGHTS

  • Black
  • 60.5 cm (23.8") 1920 x 1080 pixels LCD 540 cd/m²
  • Touchscreen 14 ms

Elo 2495L, Projected Capacitive, Full HD, USB, kit (USB)

23.8″, 1920×1080 50, 60Hz, 540 nits, 10-touch

5.388,00kr. Excl. VAT

SKU: E506980
In stock – 2-5 days delivery

Description

Elo Touch Solutions 2495L. Display diagonal: 60.5 cm (23.8″), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 540 cd/m², HD type: Full HD, Touchscreen. Product colour: Black

Go Brighter with Elo Open Frames
Elo’s new interactive open frames deliver the sleek design the 90-Series is known for with outstanding brightness ranging from 400 to 1000 NITs. Available in sizes from 22 to 27 inches, the brilliant, interactive, TouchPro® PCAP displays offer edge-to-edge glass for ease of integration and up to 10 simultaneous touches for an enhanced, tablet-like experience. With proven Elo expertise and built-in reliability, the industrial-grade displays provide outstanding image clarity and light transmissivity, as well as stable drift-free operation for accurate touch responses. Elo’s brighter open frames offer the versatility needed for commercial kiosk applications from industrial automation and gaming to self-service and retail.

Enabling Partners to Build Smarter Kiosks
With EloView® and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.

Flexibility for Your Install
Our commercial-grade open frames can be mounted in landscape, portrait and face-up orientations, providing optimal flexibility for mounting in any table, kiosk or cabinet design. Whether viewing straight on or at an angle, close-up or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.

Touch Thru Glass Enabled with PCAP
Our TouchPro® PCAP technology supports touch thru functionality for installations requiring a front layer of glass up to 6 mm thick or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully encased behind glass, our robust PCAP open frames are purpose-built for durability in various applications and environments — from self-service kiosks or highly used gaming cabinets to industrial machines performing in harsh environments.

3 Years

Scan & Camera

Built-in cameraNo

Display

Display diagonal60.5 cm (23.8″)
Display technologyLCD
Display resolution1920 x 1080 pixels
Display brightness540 cd/m²
TouchscreenYes
LED backlightYes
Touchscreen technologyProjected capacitive system
Contrast ratio (typical)1000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Display number of colours16.78 million colours
HDMI ports quantity1
VESA mountingYes
Screen shapeFlat
On Screen Display (OSD) languagesSimplified Chinese, Traditional Chinese, German, English, Spanish, French
Maximum refresh rate60 Hz
Display viewable area (HxV)527.04 x 296.46 mm
HD typeFull HD
Panel typeTFT
Native aspect ratio16:9
Supported graphics resolutions640 x 480 (VGA), 720 x 400, 800 x 500, 800 x 600 (SVGA), 1024 x 768 (XGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
HDMI version1.3a
DisplayPorts quantity1
On Screen Display (OSD)Yes
Energy efficiency class (SDR)G
Energy consumption (SDR) per 1000 hours39 kWh
Energy efficiency scaleA to G
Backlight typeLED
Viewable size, horizontal52.7 cm
Viewable size, vertical29.6 cm
DisplayPort version1.1a

Connectivity & Ports

Cables includedHDMI, USB, VGA
Ethernet LAN (RJ-45) ports1

Wireless & Network

Wall mountableYes

Battery & Power

Power consumption (standby)0.71 W
Power consumption (off)0.2 W
Power supply typeDC
Power consumption (max)32.95 W

Dimensions, Weight & Design

Product colourBlack
Package width692 mm
Package depth190 mm
Package height452 mm
Package weight7.57 kg
Weight (without stand)5.65 kg
Height (without stand)341.1 mm
Depth (without stand)37 mm

Operating Conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)20 - 80%
Storage temperature (T-T)-20 - 60 °C
Storage relative humidity (H-H)10 - 95%
Mean time between failures (MTBF)50000 h

Certifications

Compliance certificatesRoHS

Other specifications

Response time14 ms
Number of simultaneous touchpoints10
Digital horizontal frequency30 - 82 kHz
Digital vertical frequency50 - 75 Hz
