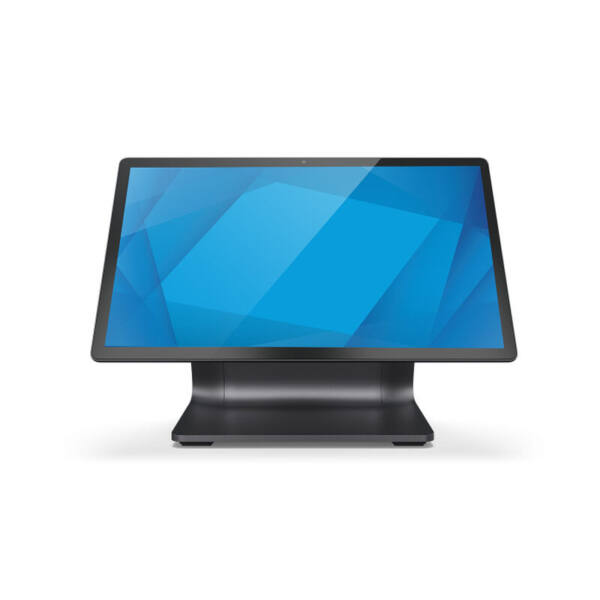

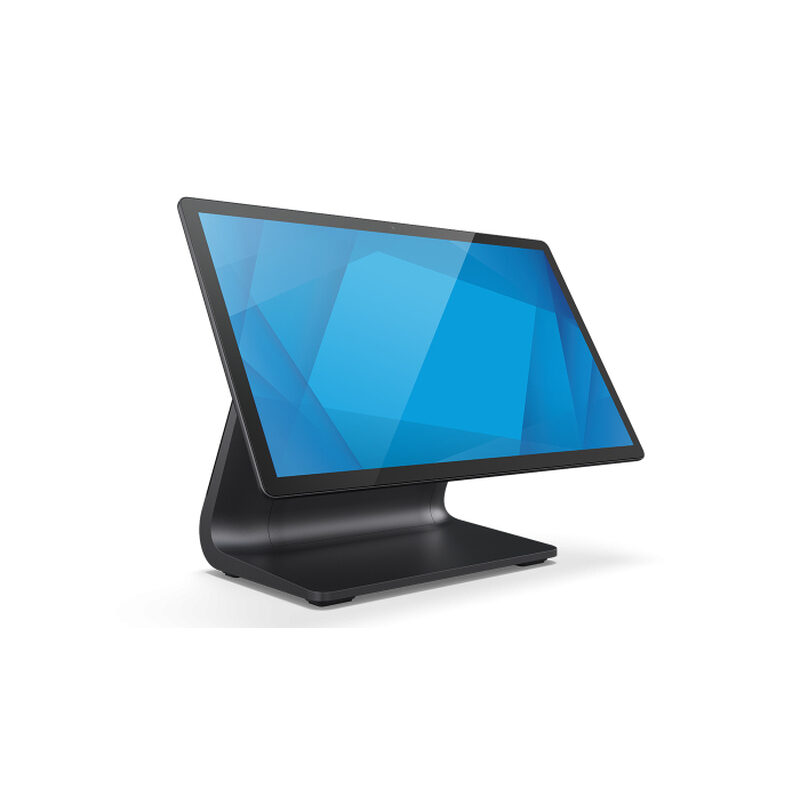

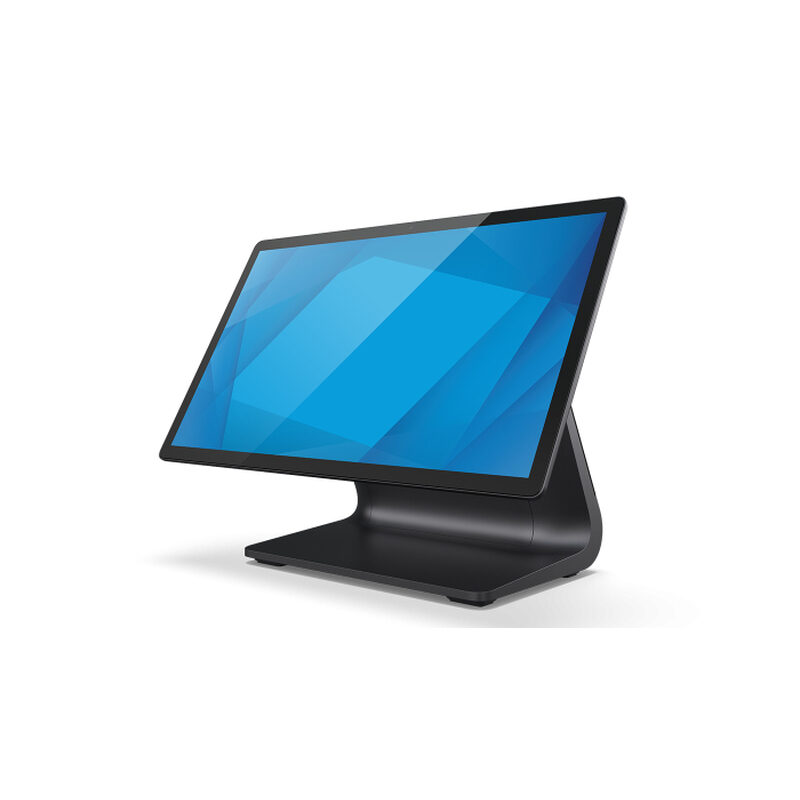

EloPOS Z30, value models, without CFD, 39.6 cm (15,6”), Projected Capacitive, 10 TP, Full HD, USB, USB-C, poweredUSB, BT (5.0), Ethernet, Wi-Fi, Android, GMS, grey

HIGHLIGHTS

  • TFT 39.6 cm (15.6") Black
  • Touchscreen
  • Rockchip
  • 4 GB
  • Flash 32 GB
  • Built-in speaker(s)
  • Ethernet LAN Bluetooth Wi-Fi
  • VESA mounting Panel mounting interface: 75 x 75 mm

EloPOS Z30, value models, without CFD, 39.6 cm (15,6”), Projected Capacitive, 10 TP, Full HD, USB, USB-C, poweredUSB, BT (5.0), Ethernet, Wi-Fi, Android, GMS, grey

Value Model without CFD, 4/32 GB, Android 10, 15.6” diagonal, 1920 x 1080 px, 60Hz, 5MP, 294 x 188 x 371 mm, 4.4 kg, Dark Gray Metallic

9.802,00kr. Excl. VAT

SKU: E392977
In stock – 2-5 days delivery

Description

Elo Touch Solutions EloPOS Z30. Display diagonal: 39.6 cm (15.6″), Display resolution: 1920 x 1080 pixels, Display type: TFT. Processor family: Rockchip, Processor model: RK3399. Internal memory: 4 GB. Total storage capacity: 32 GB, Storage media: Flash. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

EloPOS Z30 for Android.
Built on Elo’s unified architecture, the EloPOS Z30 delivers a powerful point of sale system that outperforms the competition. Complete with a 15.6-inch Full HD interactive display, integrated connectivity hub, contained cable routing, optional customer-facing touchscreen display and Android 10 OS, the EloPOS Z30 brings one of the sleekest form factors to the market.

Powerful Touchscreen
The EloPOS Z30 offers a fully integrated 15.6-inch full HD interactive display.

Integrated I/O
From payment devices and scanners to a cash drawer and printer, there is room for everything you need at point of sale.

Single Cable Connection
Connect a secondary display with a single USB‑C cable that provides touch, video and power.

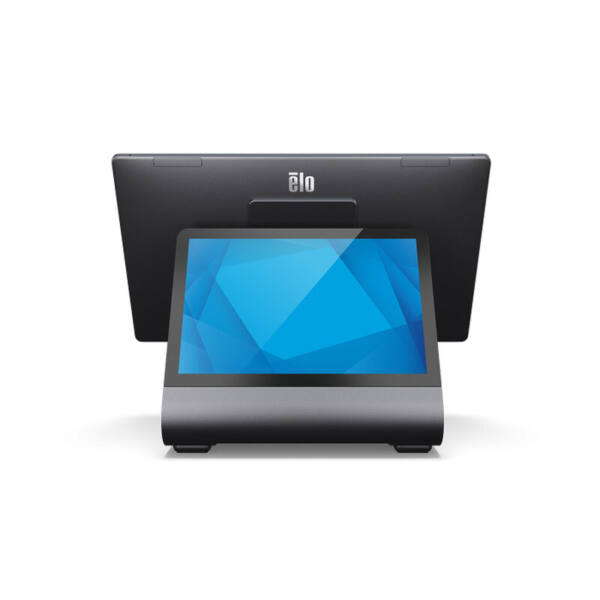

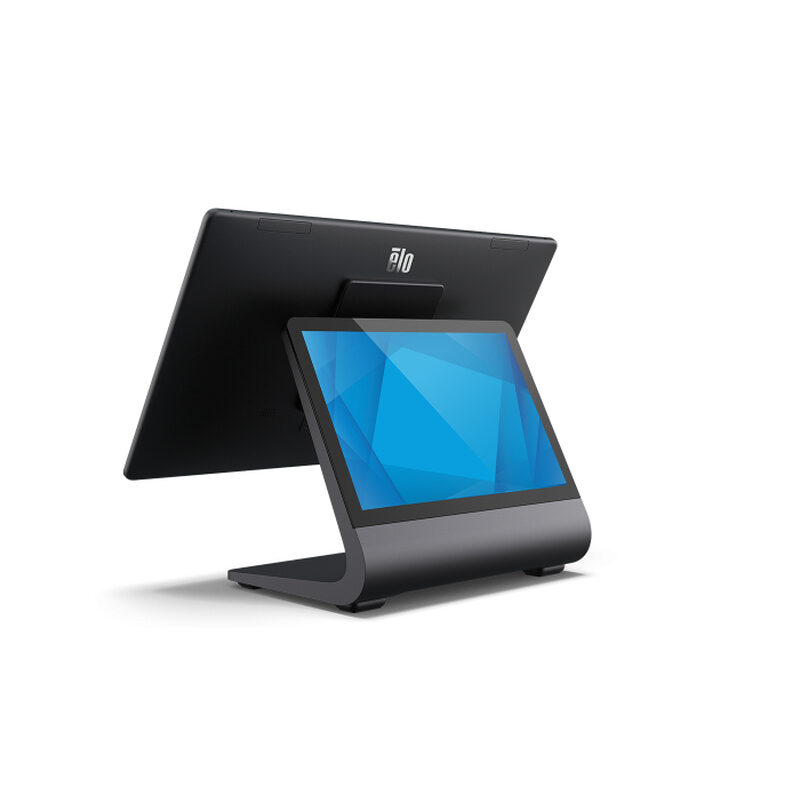

Interactive display for customers.
With an integrated CFD, offer your customers a point of interaction to review transactions, participate in loyalty programs and see the latest promotions with the integrated customer-facing touchscreen display.

Secure it.
The Z30 is designed to stay in place without being secured, but if permanent mounting is required, easily
аffix your POS terminal to any counter or surface.

Commercial-grade performance.
Whether equipped with the Qualcomm Snapdragon 8-core Kryo processor or the Rockchip 6-core processor, the EloPOS Z30 for Android delivers the performance your point-of-sale system needs.

2 year

Media & Labels

Storage mediaFlash

Display

Display diagonal39.6 cm (15.6″)
Display resolution1920 x 1080 pixels
TouchscreenYes
Display typeTFT
Display brightness350 cd/m²
Contrast ratio (typical)1000:1
Viewing angle, horizontal170°
Viewing angle, vertical170°
Effective viewing area344 x 194 mm
Display number of colours16.78 million colours
VESA mountingYes
Panel mounting interface75 x 75 mm
Touchscreen technologyProjected capacitive system
Second displayYes
Second display diagonal25.6 cm (10.1")

Connectivity & Ports

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1

Wireless & Network

BluetoothYes
Wi-FiYes
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Audio

Built-in speaker(s)Yes
Number of speakers2

Processor & Memory

Processor familyRockchip
Processor modelRK3399
Internal memory4 GB
Total storage capacity32 GB
AC input voltage100-240 V
AC input frequency50-60 Hz

Software & OS

Operating system installedAndroid 10

Battery & Power

Power consumption (typical)11.8 W

Dimensions, Weight & Design

Product colourBlack
Width371 mm
Depth188 mm
Height294 mm
Weight4.4 kg
Package width463 mm
Package depth285 mm
Package height448 mm
Package weight7.75 kg
Quantity per pack1 pc(s)

Operating Conditions

Operating relative humidity (H-H)20 - 80%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Storage relative humidity (H-H)5 - 95%
Mean time between failures (MTBF)50000 h

Other specifications

Response time20 ms
DC-in jackYes
