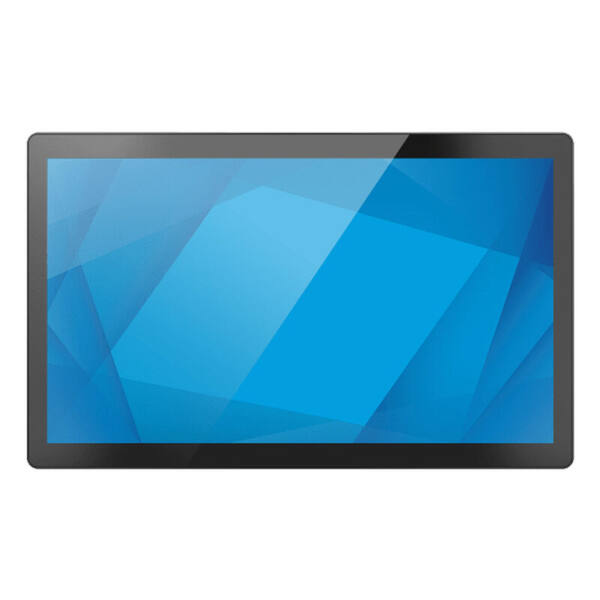

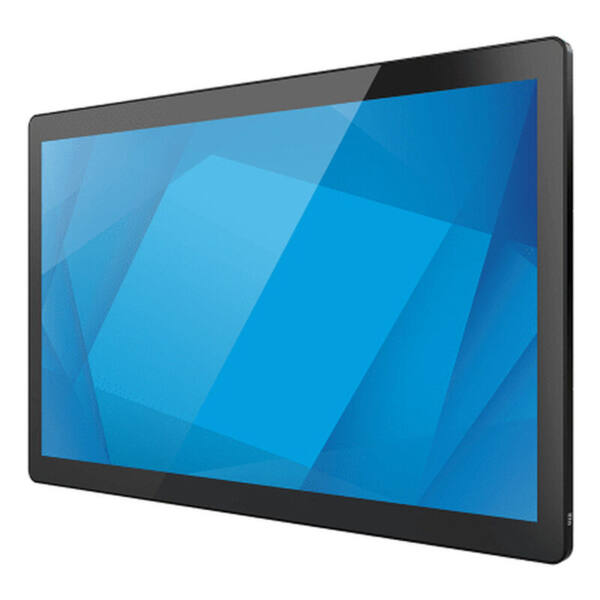

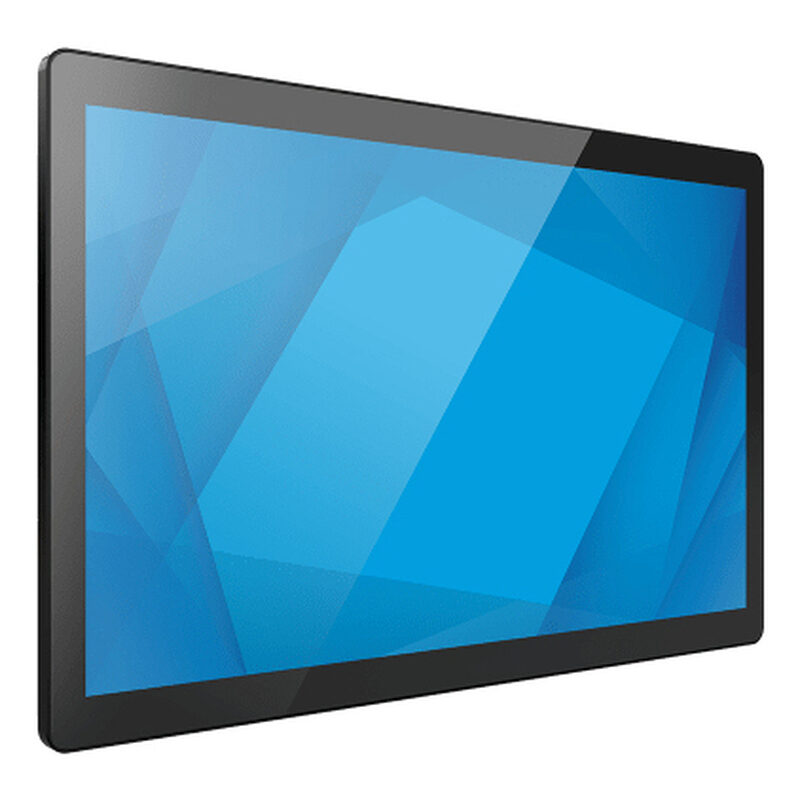

Elo I-Series 3.0, 43.2 cm (17”), Projected Capacitive, USB, USB-C, poweredUSB, RS232, BT, Ethernet, Wi-Fi, Intel Core i3, SSD, 10 IoT Enterprise, kit (RS232), black
Elo I-Series 3.0, 43.2 cm (17”), Projected Capacitive, USB, USB-C, poweredUSB, RS232, BT, Ethernet, Wi-Fi, Intel Core i3, SSD, 10 IoT Enterprise, kit (RS232), black
17-inch I-Series 3 with Intel, Touchscreen Computer, 5:4 display, Win 10, Core i3, 8GB RAM, 128GB SSD, Projected Capacitive 10-touch, Zero-Bezel, Antiglare, Wi-Fi, Ethernet, Bluetooth 5.3, with Stand, Black, Worldwide
15.024,00kr.
- Description
- Additional information
Description
Elo Touch Solutions I-Series 3.0. Product type: All-in-One PC. Display diagonal: 43.2 cm (17″), Display resolution: 1280 x 1024 pixels, Touchscreen, Screen shape: Flat, Panel type: TFT. Processor family: Intel Core 3, Processor frequency: 1.2 GHz. Internal memory: 8 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 128 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics. Operating system installed: Windows 10. Product colour: Black
Modular design. Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I‑Series to fit the needs of your business – from signage and point-of-sale to self-service, automation controls and more.
Universal VESA Mount
Conveniently mount the I‑Series with the built‑in VESA mount.
Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.
Reliable, security and performance.
Built with the reliability-tested performance and security of Intel 12th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system, the I‑Series 3 delivers the dependability businesses need.
Support for Linux.
For added flexibility, the I‑Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.
Bridge the gap between Windows and Android.
Transitioning to Android in the future? Elo Bridge is the perfect solution. Simply choose the Elo Windows device that fits your needs today, and when you are ready to transition to Android, you can use Elo Bridge to migrate your fleet of devices.
2 years
Additional information
| Display diagonal | 43.2 cm (17″) |
|---|---|
| Display resolution | 1280 x 1024 pixels |
| Touchscreen | Yes |
| HD type | Not supported |
| LED backlight | Yes |
| Touch technology | Multi-touch |
| Native aspect ratio | 5:4 |
| Display brightness | 250 cd/m² |
| Response time | 25 ms |
| Screen shape | Flat |
| Processor family | Intel Core 3 |
| Processor manufacturer | Intel |
| Processor model | i3-1215UL |
| Processor frequency | 1.2 GHz |
| Processor boost frequency | 4.4 GHz |
| Processor cores | 6 |
| Processor threads | 6 |
| Processor cache | 10 MB |
| Internal memory | 8 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Total storage capacity | 128 GB |
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| SSD form factor | M.2 |
| Discrete graphics card | Nej |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board graphics card model | Intel® UHD Graphics |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in camera | No |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth version | 5.3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| Product type | All-in-One PC |
| Trusted Platform Module (TPM) | Yes |
| Operating system installed | Windows 10 |
| AC adapter power | 180 W |
| AC adapter frequency | 50 – 60 Hz |
| AC adapter input voltage | 100 – 240 V |
| Pen included | No |
| Width (with stand) | 359.5 mm |
| Depth (with stand) | 197.5 mm |
| Height (with stand) | 356 mm |
| Weight (with stand) | 6.7 kg |
| Package width | 497 mm |
| Package depth | 487 mm |
| Package height | 345 mm |
| Package weight | 7.9 kg |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 50 °C |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage relative humidity (H-H) | 5 – 95% |
| 3D | No |
| Panel type | TFT |
| Wall mountable | Yes |
| Market positioning | Business |
| Certification | UL/cUL, FCC, IC, CE, CB |
| Quick start guide | Yes |
| Power cord included | Yes |
| Autonomy mode | No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Processor generation | 12th gen Intel® Core™ i3 |
| Processor cache type | Smart Cache |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Power consumption (typical) | 47 W |
| Power consumption (standby) | 5 W |
| Power consumption (off) | 0.5 W |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Processor base power | 15 W |
| Number of storage drives installed | 1 |
| Trusted Platform Module (TPM) version | 2.0 |
| Efficient-core Max Turbo Frequency | 2.5 GHz |
| AC adapter output voltage | 24 V |
| Display surface | Anti-glare |
| Number of storage drives supported | 1 |
| SSD interface | M.2 |
| NVMe | Yes |
| Compliance certificates | CB, CCC, Federal Communications Commission (FCC), Norma Oficial Mexicana (NOM), RCM, RoHS, State Radio Regulation of China (SRRC), UKCA, VCCI |
| Sustainability certificates | ENERGY STAR |
| Mean time between failures (MTBF) | 50000 h |
| Warranty period | 33 year(s) |
