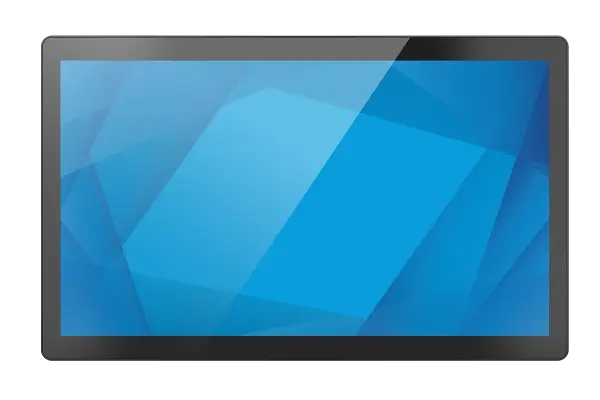

Name: Elo I-Series 3.0, Projected Capacitive, Full HD, USB, USB-C, RS232, BT, Wi-Fi, Intel Celeron, SSD, 10 IoT Enterprise, 11 IoT Enterprise, kit (RS232), black - E432375 | Delfi
Brand: Elo
SKU: E432375
Price: 14183.00 DKK
Availability: InStock

Elo I-Series 3.0, Projected Capacitive, Full HD, USB, USB-C, RS232, BT, Wi-Fi, Intel Celeron, SSD, 10 IoT Enterprise, 11 IoT Enterprise, kit (RS232), black

HIGHLIGHTS

10-touch TouchPro PCAP
Fanless, IP54 rated design
Full HD IPS Touchscreen
Easy to clean edge-to-edge glass
50,000 MTBF

Elo I-Series 3.0, Projected Capacitive, Full HD, USB, USB-C, RS232, BT, Wi-Fi, Intel Celeron, SSD, 10 IoT Enterprise, 11 IoT Enterprise, kit (RS232), black

23.8″ TFT LCD (LED), 1920 x 1080, Celeron, Win10/Win11, 8GB RAM, 256GB SSD, Clear, Without Stand

14.183,00kr. Excl. VAT

SKU: E432375

In stock – 2-5 days delivery

Description
Additional information
Documents

Description

Elo Touch Solutions I-Series 3.0. Product type: All-in-One PC. Display diagonal: 60.5 cm (23.8″), HD type: Full HD, Display resolution: 1920 x 1080 pixels, Touchscreen, Screen shape: Flat, Panel type: TFT. Processor family: Intel® Celeron®, Processor frequency: 1.1 GHz. Internal memory: 8 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 256 GB, Storage media: SSD. Operating system installed: Windows 11 IoT Enterprise. Product colour: Black

Modular design. Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I‑Series to fit the needs of your business – from signage and point-of-sale to self-service, automation controls and more.

Universal VESA Mount
Conveniently mount the I‑Series with the built‑in VESA mount.

Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.

Reliable, security and performance.
Built with the reliability-tested performance and security of Intel 12th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system, the I‑Series 3 delivers the dependability businesses need.

Support for Linux.
For added flexibility, the I‑Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.

Bridge the gap between Windows and Android.
Transitioning to Android in the future? Elo Bridge is the perfect solution. Simply choose the Elo Windows device that fits your needs today, and when you are ready to transition to Android, you can use Elo Bridge to migrate your fleet of devices.

Get peace of mind
with EloCare

3 years

Scan & Camera

Built-in camera

Media & Labels

Storage media	SSD
Market positioning	Business

Display

Display diagonal	60.5 cm (23.8″)
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
LED backlight	Yes
Touch technology	Multi-touch
Native aspect ratio	16:9
Display brightness	250 cd/m²
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Panel type	TFT
Viewing angle, horizontal	178°
Viewing angle, vertical	178°

Connectivity & Ports

Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Number of storage drives supported	1
SSD interface	M.2

Wireless & Network

Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Bluetooth	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.3
Wall mountable	Yes

Audio

Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W

Processor & Memory

Processor family	Intel® Celeron®
Processor manufacturer	Intel
Processor model	7305L
Processor frequency	1.1 GHz
Processor boost frequency	1.1 GHz
Processor cores	5
Processor threads	5
Processor cache	8 MB
Internal memory	8 GB
Maximum internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	4800 MHz
Memory layout (slots x size)	1 x 8 GB
Total storage capacity	256 GB
Optical drive type	No
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
SSD form factor	M.2
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card model	Intel® UHD Graphics
On-board graphics card family	Intel® UHD Graphics
Trusted Platform Module (TPM)	Yes
AC adapter input voltage	100 - 240 V
Processor cache type	Smart Cache
Performance cores	1
Efficient cores	4
Performance-core Max Turbo Frequency	1.1 GHz
Processor base power	15 W
Maximum turbo power	28 W
Memory form factor	DIMM/SO-DIMM
Trusted Platform Module (TPM) version	2.0
Efficient-core Max Turbo Frequency	1.1 GHz
NVMe	Yes

Software & OS

Operating system installed	Windows 11 IoT Enterprise
Operating system architecture	64-bit

Battery & Power

AC adapter power	180 W
AC adapter frequency	50 - 60 Hz
Power cord included	Yes
Power consumption (standby)	5 W
Power consumption (off)	0.5 W
AC adapter output voltage	24 V

Dimensions, Weight & Design

Product colour	Black
Package width	697 mm
Package depth	529 mm
Package height	188 mm
Package weight	9.7 kg
Width (without stand)	571.2 mm
Depth (without stand)	39 mm
Height (without stand)	352 mm
Weight (without stand)	7.1 kg

Operating Conditions

Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%
Mean time between failures (MTBF)	50000 h

Certifications

Product type	All-in-One PC
Compliance certificates	CB, CCC, Federal Communications Commission (FCC), Norma Oficial Mexicana (NOM), RCM, RoHS, State Radio Regulation of China (SRRC), UKCA, VCCI, CE, Industry Canada (IC)
Sustainability certificates	ENERGY STAR

In the box

Quick start guide

Yes
