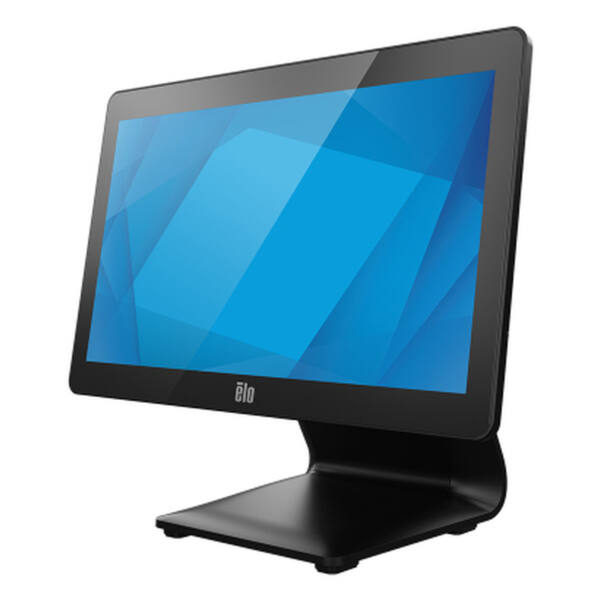

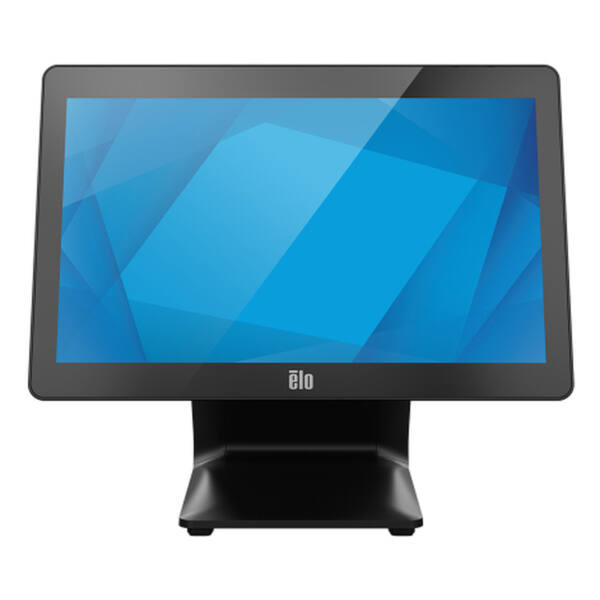

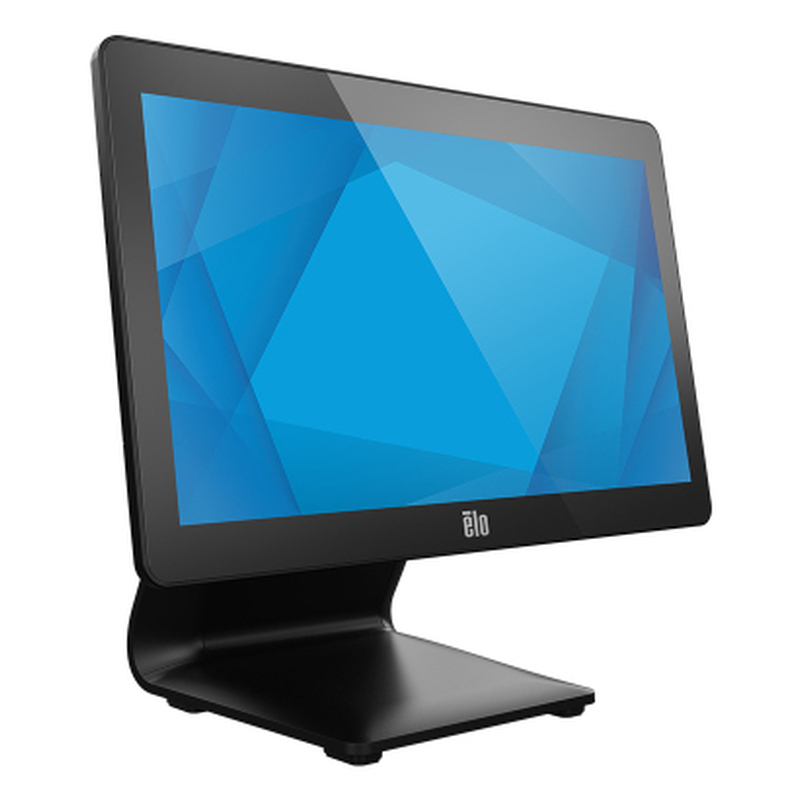

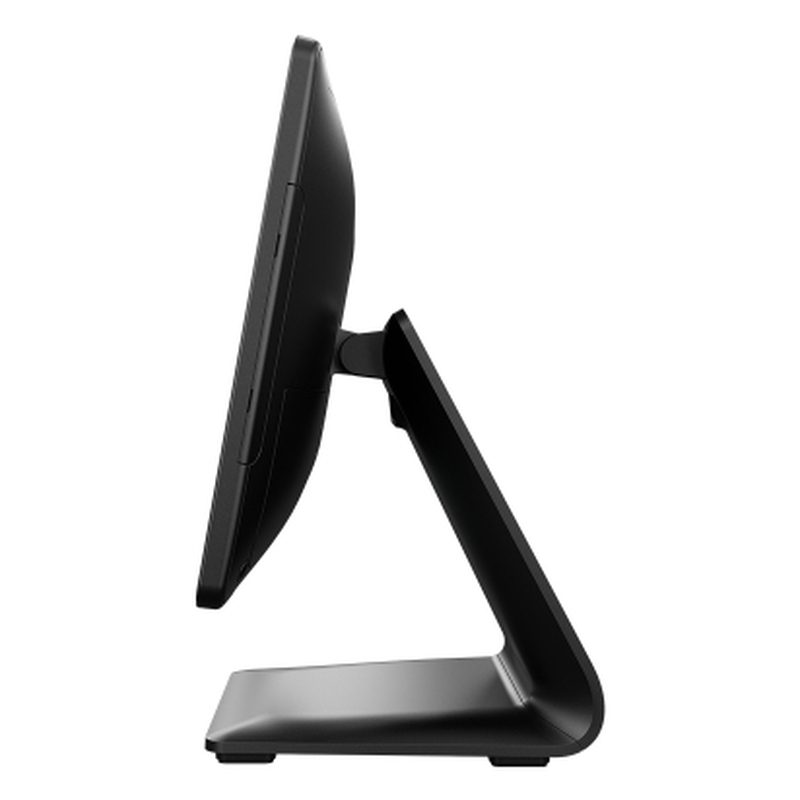

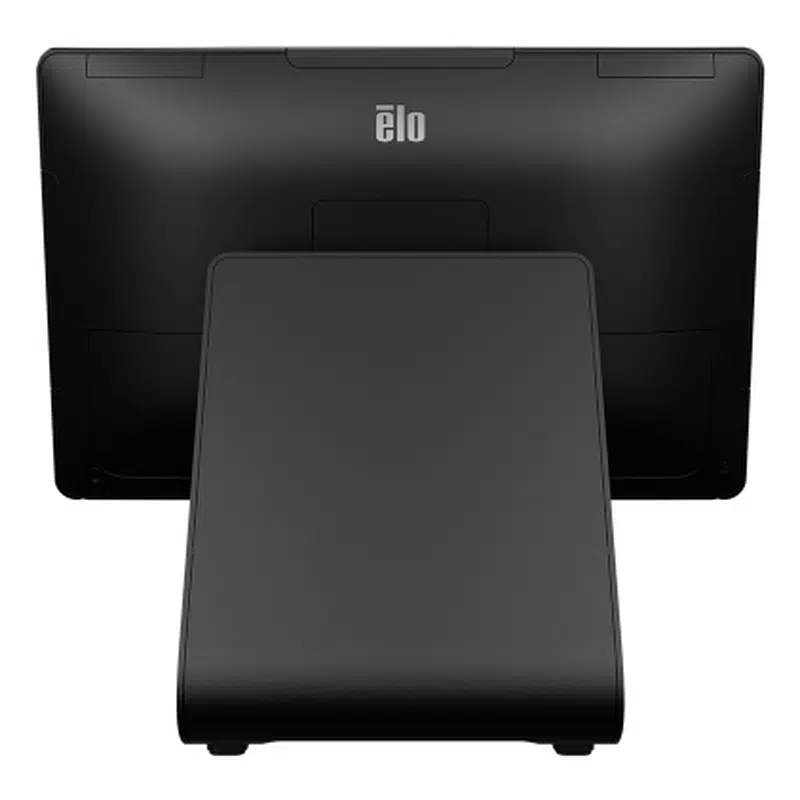

Elo I-Series 3.0, 39.6 cm (15,6”), Projected Capacitive, Full HD, USB, USB-C, poweredUSB, RS232, BT, Ethernet, Wi-Fi, Intel Core i5, SSD, kit (RS232), black
HIGHLIGHTS
- All-in-One PC Black 180 W
- Intel® Core™ i5 i5-1245UL 1.6 GHz Processor cores: 10
- Touchscreen 39.6 cm (15.6") Full HD 1920 x 1080 LCD
- 8 GB DDR5-SDRAM 4800 MHz 1 x 8 GB
- 128 GB SSD
- Intel Iris Xe Graphics
- Wi-Fi 6 (802.11ax) Ethernet LAN 10,100,1000 Mbit/s Bluetooth 5.2
Elo I-Series 3.0, 39.6 cm (15,6”), Projected Capacitive, Full HD, USB, USB-C, poweredUSB, RS232, BT, Ethernet, Wi-Fi, Intel Core i5, SSD, kit (RS232), black
15.6” TFT LCD (LED) 1920 x 1080, Intel Core i5-1245UL, 8GB RAM, 128 SSD, No OS, With Stand
18.137,00kr. Excl. VAT
- Description
- Additional information
- Documents
Description
Elo Touch Solutions I-Series E706031. Product type: All-in-One PC. Display diagonal: 39.6 cm (15.6″), HD type: Full HD, Display resolution: 1920 x 1080 pixels, Touchscreen, Panel type: LCD. Processor family: Intel® Core™ i5, Processor frequency: 1.6 GHz. Internal memory: 8 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 128 GB, Storage media: SSD. On-board graphics card model: Intel Iris Xe Graphics. Product colour: Black
Completely redesigned
I‑Series 3 with Intel.
Brilliant and beautiful,
interactive platform.
– 10-touch TouchPro PCAP
– Fanless, IP54 rated design
– Full HD IPS Touchscreen
– Easy to clean edge-to-edge glass
– 50,000 MTBF
Modular design.
Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I‑Series to fit the needs of your business – from signage and point-of-sale to self-service, automation controls and more.
Universal VESA Mount
Conveniently mount the I‑Series with the built‑in VESA mount.
Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.
Enhanced connectivity for all your accessories.
– USB-C full featured
– Gigabit LAN
– Powered RJ50 Serial
– 4x USB 3.0
– 4x Micro-USB Edge Connect
– WiFi & Bluetooth 5.2
Scan & Camera
| Built-in camera | No |
Media & Labels
| Storage media | SSD |
Display
| Display diagonal | 39.6 cm (15.6″) |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display brightness | 350 cd/m² |
| Panel type | LCD |
Connectivity & Ports
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
Wireless & Network
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth version | 5.2 |
Audio
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| On/off button | Yes |
Processor & Memory
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Processor model | i5-1245UL |
| Processor frequency | 1.6 GHz |
| Processor cores | 10 |
| Processor cache | 12 MB |
| Internal memory | 8 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Total storage capacity | 128 GB |
| Optical drive type | No |
| Total SSDs capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| Trusted Platform Module (TPM) | Yes |
| AC adapter input voltage | 100 - 240 V |
| Processor cache type | Smart Cache |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Performance-core boost frequency | 4.4 GHz |
| Processor base power | 15 W |
| Maximum turbo power | 28 W |
| Memory form factor | DIMM/SO-DIMM |
| Trusted Platform Module (TPM) version | 2.0 |
| Efficient-core Max Turbo Frequency | 2.5 GHz |
Software & OS
| Operating system installed | No |
Battery & Power
| AC adapter power | 180 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter output voltage | 24 V |
Dimensions, Weight & Design
| Product colour | Black |
| Width (with stand) | 384.1 mm |
| Depth (with stand) | 197.5 mm |
| Height (with stand) | 338.4 mm |
| Weight (with stand) | 6.4 kg |
| Package width | 497 mm |
| Package depth | 345 mm |
| Package height | 487 mm |
| Package weight | 8.9 kg |
Operating Conditions
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
Certifications
| Product type | All-in-One PC |
| Certification | Canada cUL, IC; United States UL, FCC; Germany TUV; Europe CE; Australia RCM; United Kingdom UKCA; International CB; Argentina S-Mark; Brazil ANATEL; Japan VCCI, MIC; China CCC, SRRC; Mexico NOM; RoHS |
Other specifications
| Number of storage drives installed | 1 |
| On-board GPU manufacturer | Intel |
| DC-in jack | Yes |
| HDD user password | Yes |
