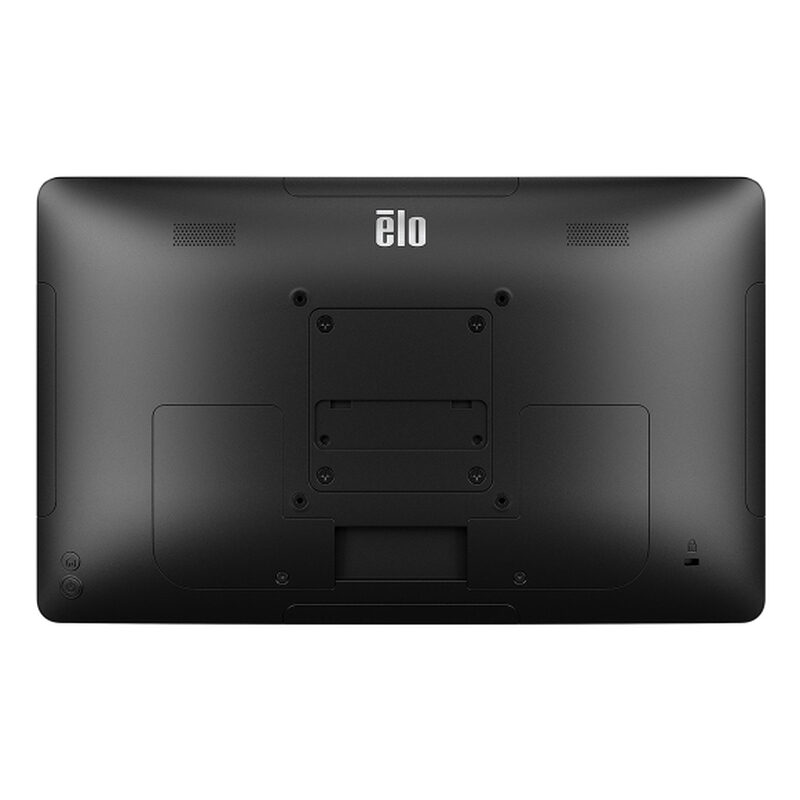

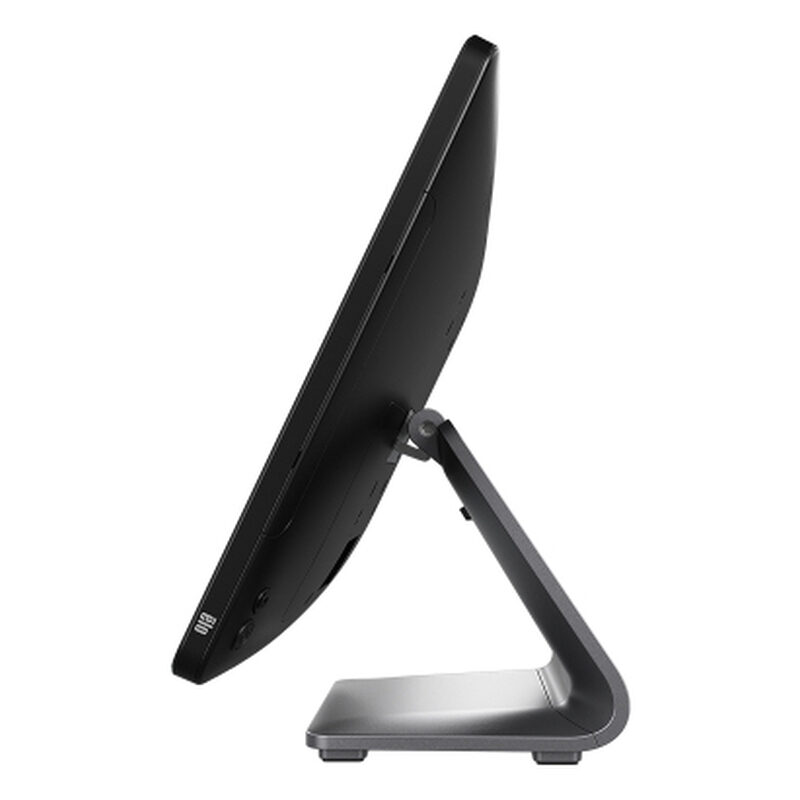

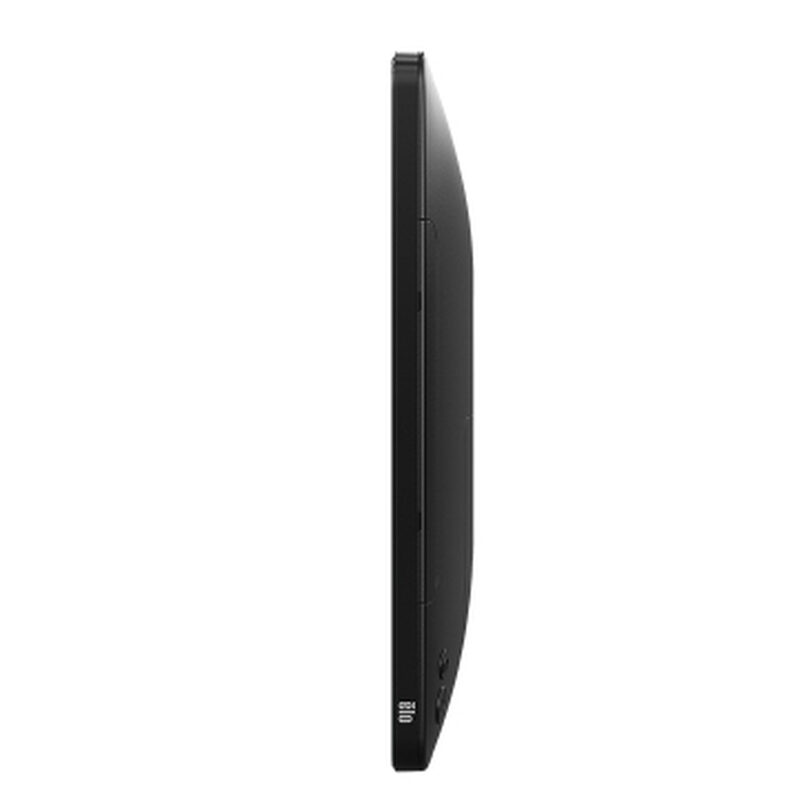

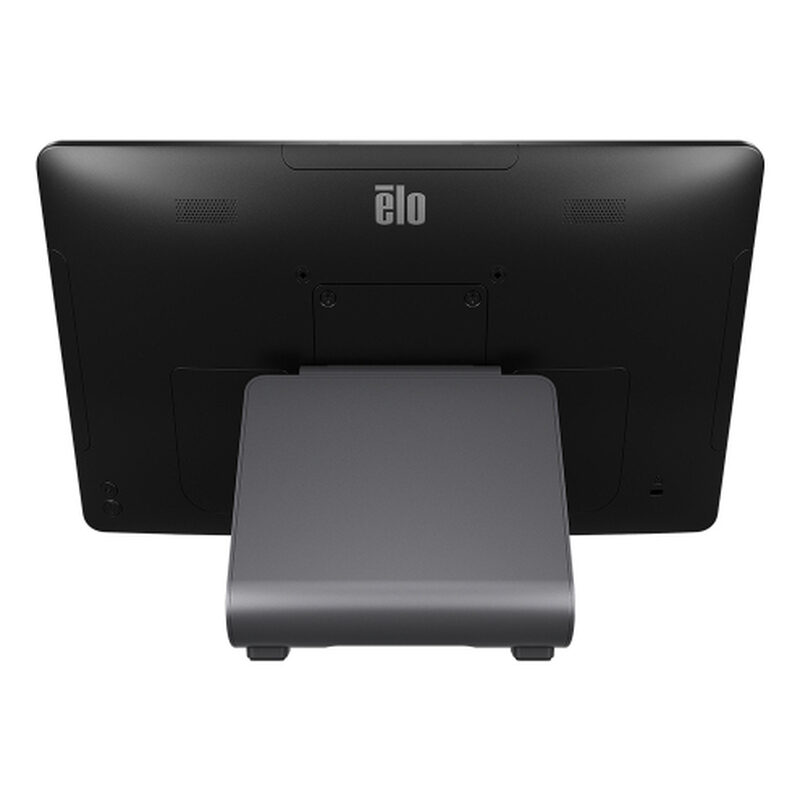

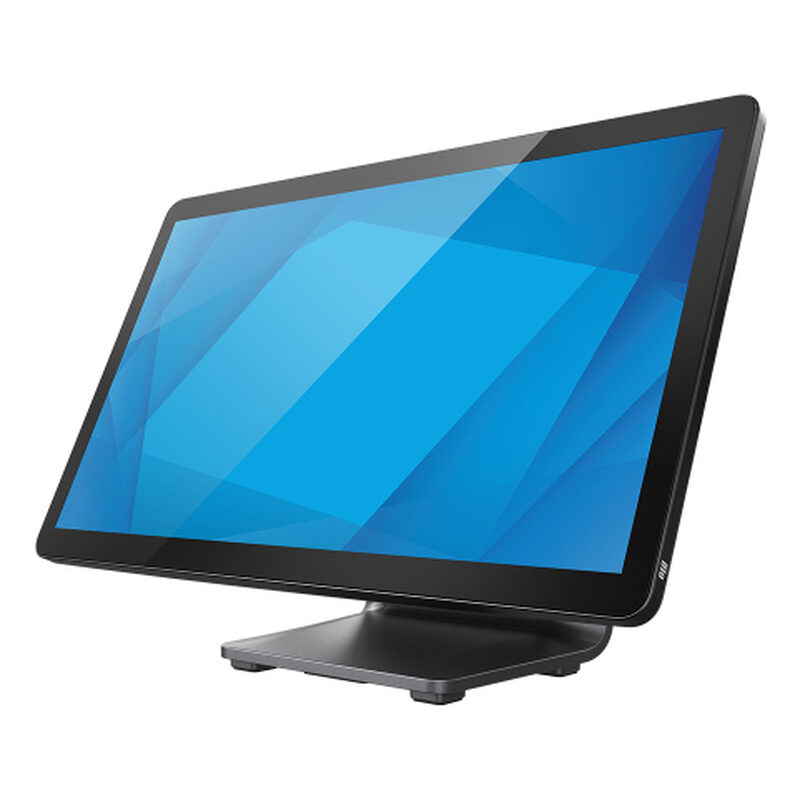

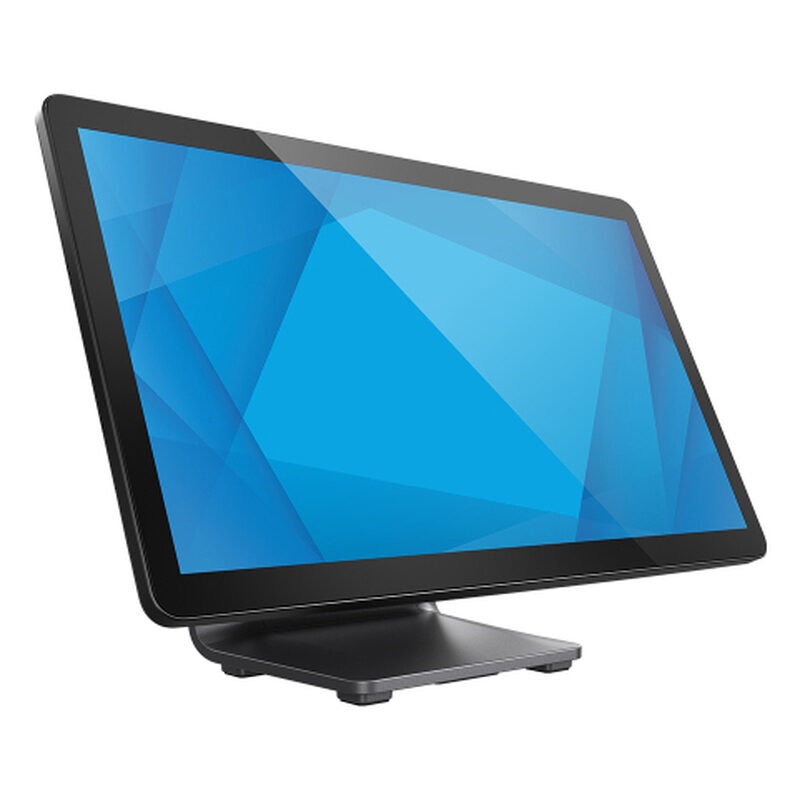

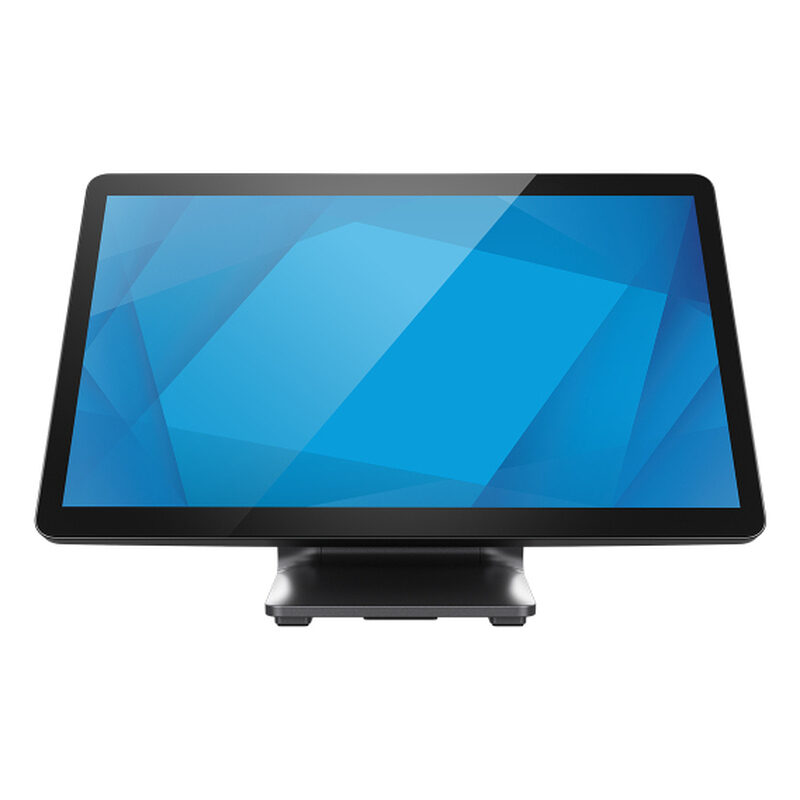

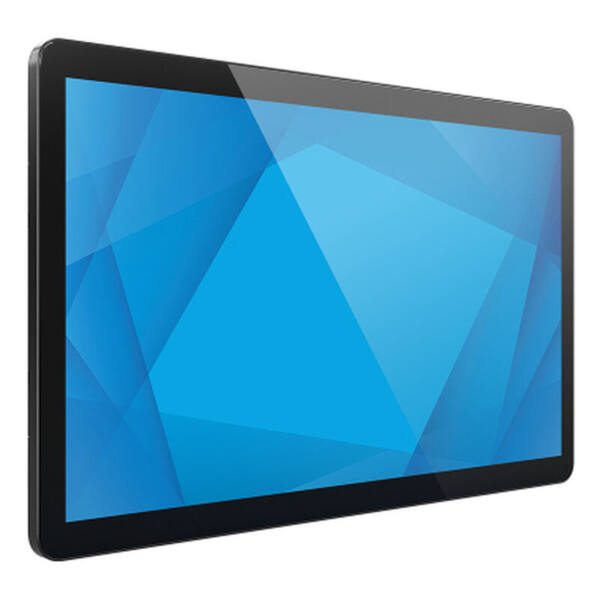

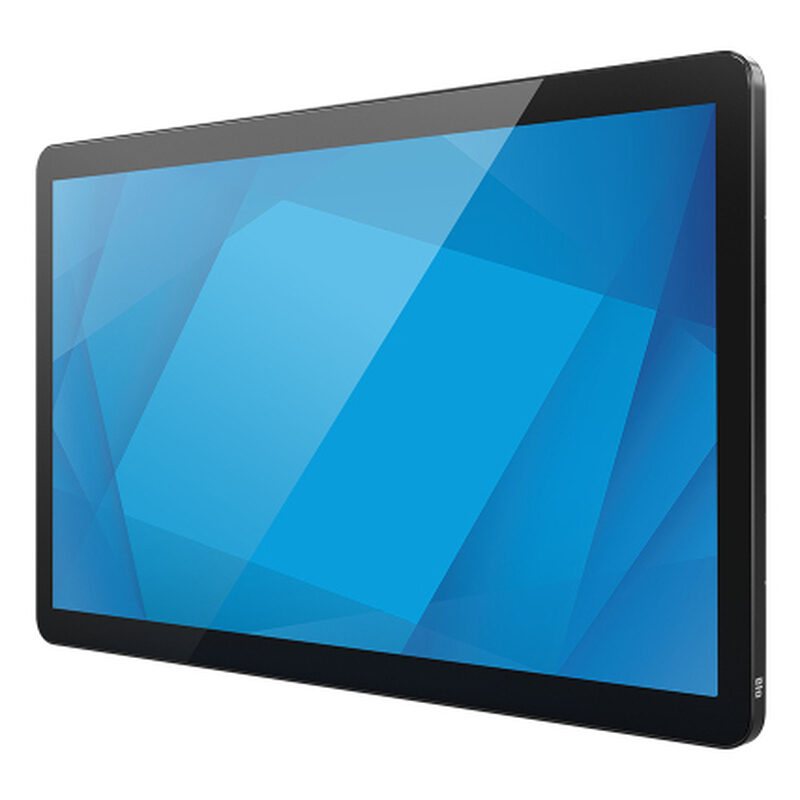

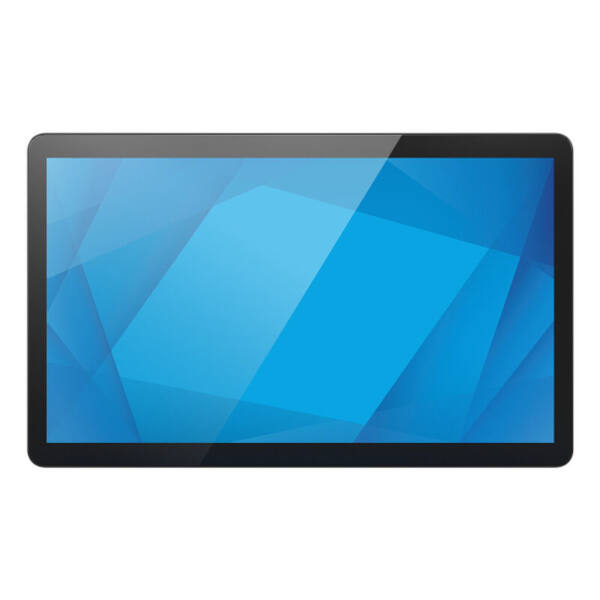

Elo 1504L, No Stand , 39.6 cm (15,6”), Projected Capacitive, 10 TP, Full HD, USB, USB-C, kit, black
Elo 1504L, No Stand , 39.6 cm (15,6”), Projected Capacitive, 10 TP, Full HD, USB, USB-C, kit, black
15.6″, 1920×1080 60Hz, TFT-LCD, PCAP 10 Touch, 16:9, 16.7m Colors, 450-nits, 25ms, 1000:1, 1x USB Type-A, 1x USB Type-C, 1x DisplayPort, 1x HDMI, 1x DC In, 4x Micro USB, 2x 2W Speakers, 371×26.9×227.5mm, 1.7kg
3.926,00kr.
- Description
- Additional information
Description
Elo Touch Solutions 1504L. Display diagonal: 39.6 cm (15.6″), Display resolution: 1920 x 1080 pixels, HD type: Full HD. Product colour: Black, Mean time between failures (MTBF): 50000 h. Power source type: DC, USB, Power: 12.1 W, AC adapter input voltage: 90 – 264 V. Width: 371 mm, Depth: 26.9 mm, Height: 227.5 mm. Package width: 451 mm, Package depth: 220 mm, Package height: 342 mm
1504L 15-inch Touchscreen Monitor
The 1504L touchmonitor delivers a stunning design, enhanced durability, increased touch accuracy and brilliant display clarity. With state-of-the-art optical bonding and IP54-sealed design, the 15” touch monitor offers a feature-rich platform and the versatility to extend across a diverse range of applications from point-of-sale, self-service and kitchen display systems to warehouse automation, access control and HMI.
Create the perfect payment stack with the 15″ touchscreen.
Easily pair the 15-inch touchscreen monitor with one of Elo’s integrated payment devices – from Elo Pay mobile computers to the Elo Pay 7″, the 1504L offers the perfect compact touch display with the connectivity you need at the point of sale.
State of the art optical viewing.
Designed with high quality optical bonding, anti-glare coverglass and low-blue light settings – the 1504L 15-inch touchscreen monitor brings the best-in-class solution for viewing comfort and clarity.
Secure your cables into place.
Never lose your port covers and screws with the security of the captive design. With a port cover that locks into place, cables are less prone to becoming disconnected, resulting in minimal disruptions to the device.
Connect accessories to the edge.
Elo Edge Connect™ offers an expansive lineup of accessories that seamlessly attach to the edge of the display including – EMVs, barcode scanners, status lights, cameras, RFID, MSR, fingerprint scanner and more.
Navigate the OSD directly on the touchscreen.
The on-screen display (OSD) controls are now directly on the touchscreen – making navigation easier while still offering OSD lock security.
Expand the possibilities with touch through.
Elo’s TouchPro PCAP monitors feature touch through capability, supporting use with gloves and additional layers of films and filters to meet specific industry requirements.
Get peace of mind with EloCareSM.
From advance unit replacement to extended warranties, EloCare delivers service and support from the people who know your Elo products best.
Quality that is built to last.
We engineer each product with a goal that goes beyond meeting expectations; we aim to exceed them. By integrating our technology into your operations, you are partnering with us – and as your partner, we are committed to delivering reliable products so you can focus on growth and innovation, confident in the knowledge that we stand behind our products, ready to support you every step of the way.
3 Years Warranty
Additional information
| Display diagonal | 39.6 cm (15.6″) |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| Display brightness | 450 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Response time | 25 ms |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Native aspect ratio | 16:9 |
| Product colour | Black |
| Mean time between failures (MTBF) | 50000 h |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -20 – 60 °C |
| Storage relative humidity (H-H) | 10 – 95% |
| Package weight | 3.8 kg |
| Touchscreen type | Projected Capacitive (PCAP) |
| AC adapter output voltage | 12 V |
| HD type | Full HD |
| Package width | 451 mm |
| Package depth | 220 mm |
| Package height | 342 mm |
| Display type | TFT |
| Number of colours | 16.78 million colours |
| Effective viewing area | 344.16 x 193.59 mm |
| Native refresh rate | 60 Hz |
| Power source type | DC, USB |
| Power | 12.1 W |
| Width | 371 mm |
| Depth | 26.9 mm |
| Height | 227.5 mm |
| Weight | 1.7 kg |
| Panel type | TFT-LCD |
| Compliance certificates | BIS, BSMI, CB, CE, China Compulsory Certification (CCC), China RoHS, Federal Communications Commission (FCC), Industry Canada (IC), KCC, Norma Oficial Mexicana (NOM), PSE, RCM, REACH, RoHS, UKCA, UL, |
| AC adapter input voltage | 90 – 264 V |
| VESA mounting | Yes |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
